Motor Driver

Filter
View
Showing 1 - 16 of 17 Items
  • Motor Voltage (VCC2): 4.5 V to 36 V
  • Maximum peak motor current: 1.2 A
  • Maximum continuous motor current: 600 mA
  • Supply voltage to VCC1: 4.5 V to 7 V
  • Transition time: 300 nS
  • Logic Voltage: 4.5-7 volts
  • Motor Drive Voltage: 5-40 volts (Lower value Depends on ViH)
  • Total DC current: 4 A
  • Number of channels: 2
  • Over current and Thermal Protection
  • Voltage Range: 8-35V
  • Continuous Current per Phase: 1 Amp
  • Maximum Current per Phase: 2 Amp
  • Microstep resolutions: Full, 1/2, 1/4, 1/8, and 1/16

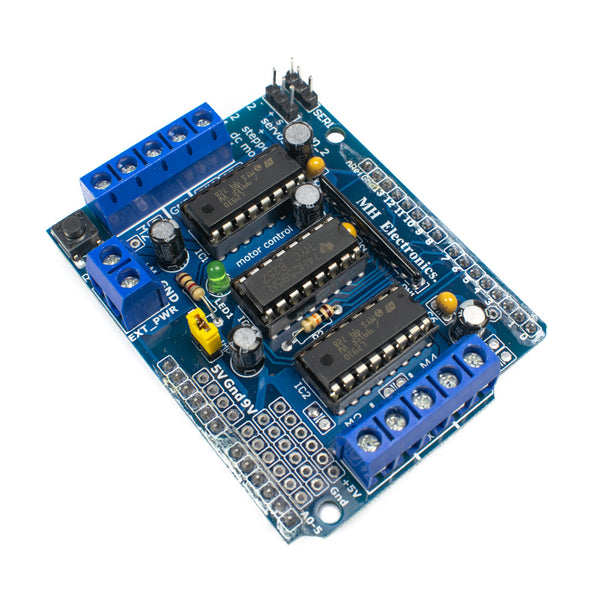

  • 2 connections for 5V servos connected to the Arduino’s high-resolution dedicated time.
  • 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak).
  • Protection: Thermal shutdown protection, internal kickback protection diodes.
  • Can run motors on 4.5VDC to 25VDC.
  • Up to 4 bi-directional DC motors with individual 8-bit speed selection.
  • Type: CCPM Servo Tester, ESC or Servo tester
  • Output: 15mA (5.0)
  • Operating Voltage(VDC): 4.8 to 6
  • Output Signal: 1.5ms±0.5ms
  • Color: Blue
  • Operating Voltage(VDC): 4.5 to 12 V
  • Max current: 600 mA per rotor
  • Two Motor Interface


  • Package: 16 Pin DIP
  • Output Current:  500mA
  • Frequency:  430 kHz
  • Output Voltage: 5.1V
  • Input Supply Voltage: 8-35V
  • ULN2003A motor driver chip
  • Chip all the pins already leads for easy connection to use
  • 5-12V power supply
  • 4-way signal indicator
  • Step angle: 5.625 x 1 / 64
  • Input Supply Voltage: 8.2 ~ 42V DC
  • Current Handling Capacity: 2.2A
  • Continuous Current: 1.5A (per phase)
  • Logic Input2.5 ~ 5V
  • Application: 3D Printer, CNC machine, Laser Engraver


  • Input Supply Voltage: 12V-40V DC
  • Max. Output Power: 400W
  • Max. Continuous Output Current: 8A
  • PWM Frequency: 13kHz
  • Duty Cycle: 10%-100%
  • Supply Voltage: 9-42V DC
  • Supply Current: 0-5A
  • Output Current: 0.5 to 4.0A
  • Max.  Power Output: 160W
  • Micro Step: 1, 2/A, 2/B, 4, 8, 16,  32
