Description

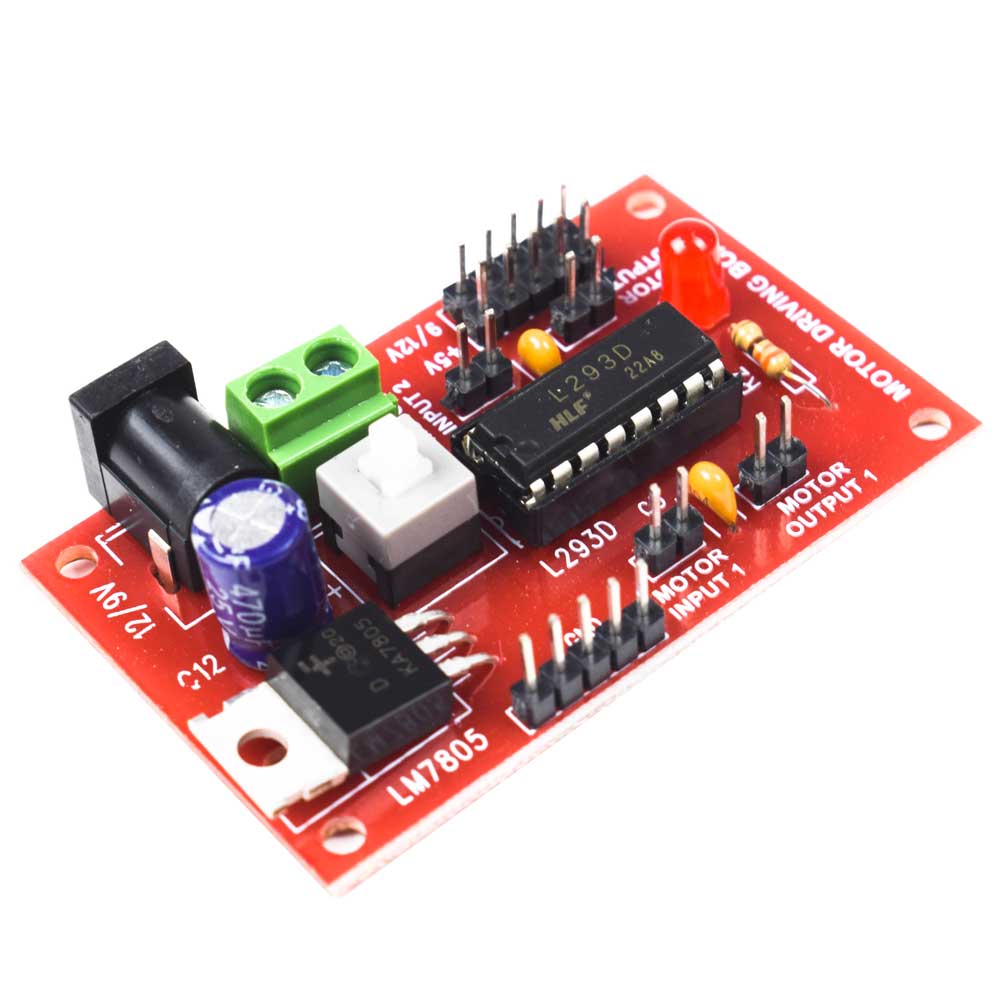

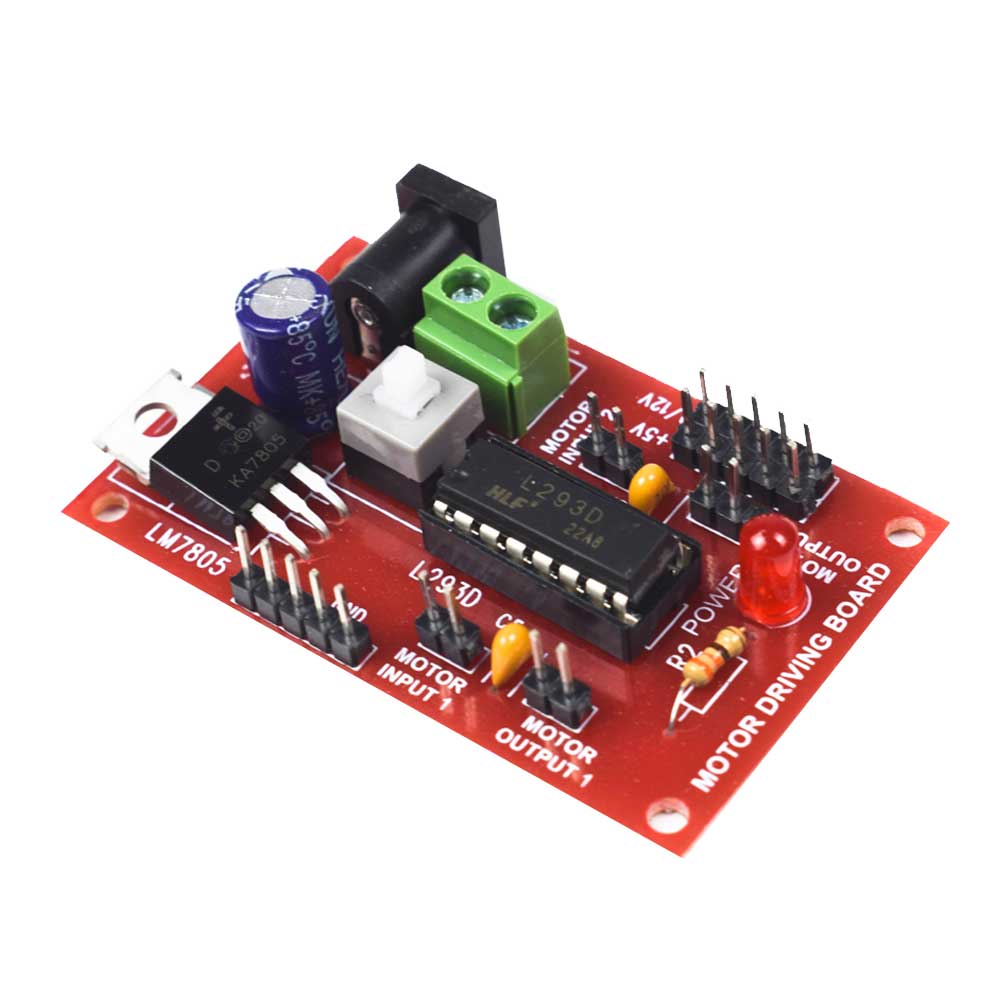

This is an L293D Motor Driver Module with Voltage Protection. It can provide bidirectional drive currents of up to 600 mA at voltages from 4.5 V to 36 V. It is Specially designed for various robotic projects that do not require microcontrollers, with a Male Berg strip provided for connection and proper operation, as well as an Extra Berg strip provided for GND, +5V, and +9V for external connection. It is compatible with RASPBERRY PI, ARM, AVR, PIC, 8051, etc.
Features
- It is often used in Robotics, Motor Driving Applications.
- It can control its direction using control lines and their speed using PWM signals.
- Motor & Drivers | Module | Motor Driver Module | Robotics.
Specification
| Product | L293D Motor Driver Module with Voltage Protection |
| Type | Motor Driver |
| Power Source | DC |
| Voltage(VDC) | 4.5V ~ 36V |
| Max current | 600 mA per rotor |
| No of Pin | 23 |
| Dimension(L*W*D) | 62*40*16 (mm) |
| Make | Make in India |
| Country of Origin | China |
