Basic Components
- Diameter: 5 mm
- Glow Colour: Red
- Lens Colour: Red
- Forward Voltage: 1.65 - 2 volts
- Peak Reverse Voltage: 5 volts
- Colour : White
- Voltage: 3V-3-3V DC
- Current: 350mA
- Power Rating: 1 Watt
- Type: High Power SMD Bead LED

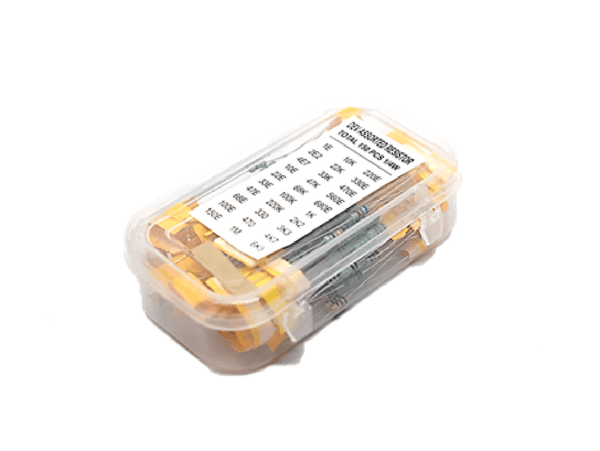

- Resistance Type: Carbon Film
- Tolerance: 5%
- Power Rating: 1/4W
- 30 Different Values
- Axial Lead
- Auto Flashing RGB LED
- Diameter: 5mm
- Number of Pins: 2
- Super Bright Transparent Body
- Diameter: 5 mm
- Colour: Green
- Forward voltage: 2.2 - 3 volts
- Peak Reverse Voltage: 5 volts
- Lens Colour: Clear
- Value: 10K ohm
- Type: Single Linear
- Pins: 5 (3 for connections and other 2 for stability)
- Plastic Knob
- Tie Points: 830
- Color: White
- Power lanes: 2
- Total tie points in Double strip: 630

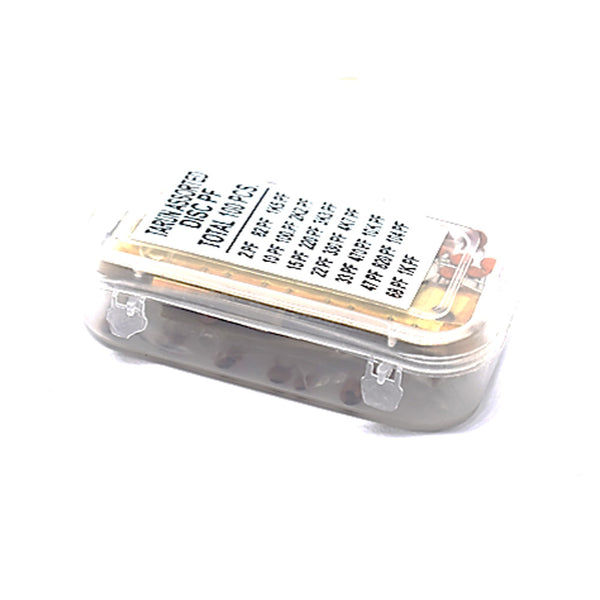

- Ceramic Capacitors
- Maximum Voltage Rating: 50V
- Quantity: 100 (5 each per value)
- Capacitance values: 2pF, 10pF, 15pF, 22pF, 33pF, 47pF, 68pF, 82pF, 100pF, 220pF, 330pF, 470pF, 1KpF, 1K5pF, 2K2pF, 3K3pF, 4k7pF, 10KPF, 100KpF(0.1uF
- Input Type Voltage: 2.0-2.2V(Red) / 2.2-2.6V(Green) / 3.2-3.4(Blue)
- Type: Common Anode
- Diameter: 5 mm
- LED Lens colour: Milky white
- RGB Wavelength: 625-630(Red) / 517-520(Green) / 465-470(Blue) nm
- Diameter: 5 mm
- Max Voltage: 150 volts
- Max Power: 100 mW
- Light resistance(10 lux): 5-10 kohm
- Dark Resistance: >100 kohm
- Resistance: 10k ohm
- Tolerance: 30%
- Mounting: Through hole
- Operating Temperature -10°C to 70°C
- Maximum Operating Voltage: 50V DC
- Input Type Voltage: 2.0-2.2V(Red) / 2.2-2.6V(Green) / 3.2-3.4(Blue)
- Type: Common Cathode
- Diameter: 5 mm RGB
- Lens colour: Milky white
- RGB Wavelength: 625-630(Red) / 517-520(Green) / 465-470(Blue) nm
- Multi-Layer Ceramic Capacitor
- Max. Voltage 50V
- Package Type: Through Hole
- 5mm Pitch
- Resistance: 1kΩ
- Tolerance: ±5%
- Power Rating: 125mW
- Mounting Type: Through hole
- Axial Lead
