Drone Parts
- Size of Motor: 7 x 16MM
- Voltage: 3.7V no-load current is about 110ma, stall 1.54A
- Shaft length: 8mm
- Speed: load 40000 rpm (per minute)
- Shaft length: 8mm

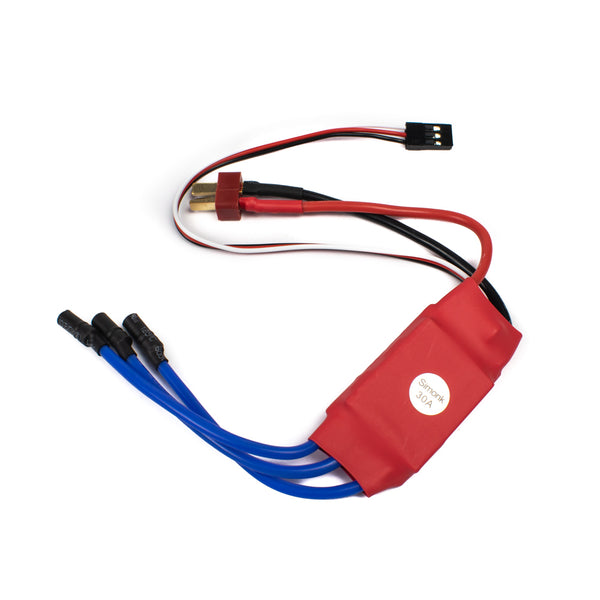

- Model: SIMONK 30A.
- Constant Current: 30A (Max 40A < 10 sec).
- BEC: 5V 2A.
- Suitable Batteries: 2-3S LiPo.
- Application: BLDC Motors, Multirotor, RC Planes etc.
- Very strong and lightweight.
- Quick to release, quick to attach.
- Diameter: 10 inches
- Pitch: 4.5 inches
- 1xClockwise, 1xAnti-clockwise

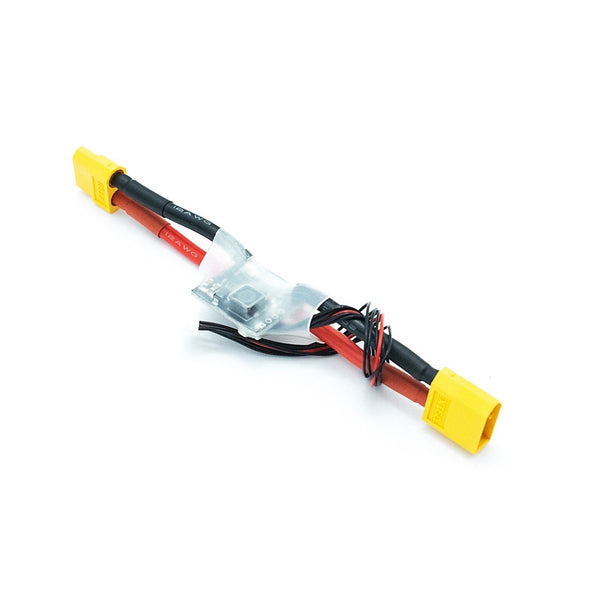

- Maximum Input Voltage: 28V
- Maximum Current Sensing: 90A
- Switching Regulator max Voltage Output: 5.3V
- Switching Regulator Maximum Current: 3A
- Connector Type: XT60
- Model: OpenPilot CC3D EVO Straight Pin
- Input Voltage: 5V DC
- Sensors: 3-Axis Gyrometer Accelerometer High-performance Barometr.
- Processor: Micro-Controller STM32
- Dimensions: 40mmx 40mm x 18mm

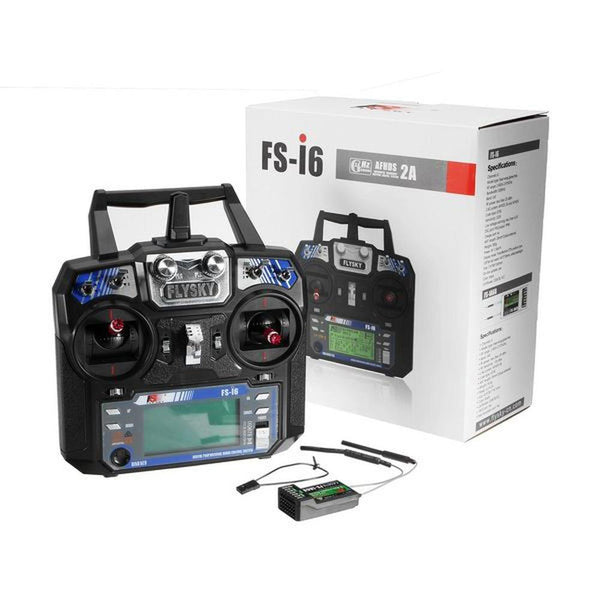

- Operating Voltage: 4.0-8.4V DC
- Channels: 6
- Frequency range: 2.4–2.48GHZ
- Bandwidth number: 160
-
Transmitting power: not more than 20dBm

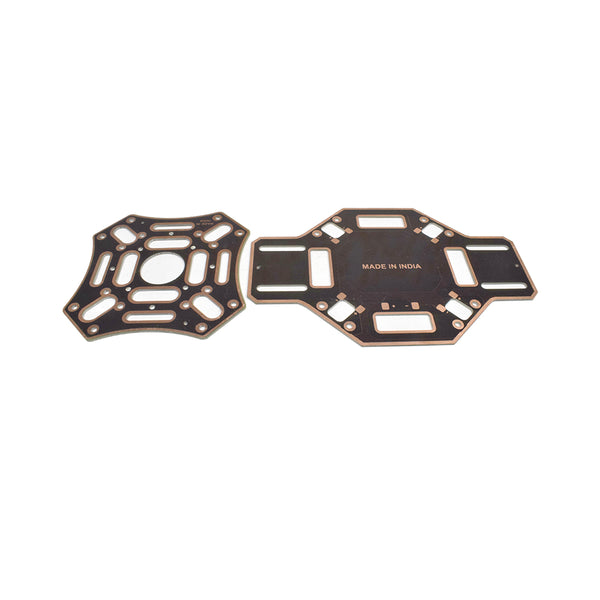

- Material: Glass Fiber + Polyamide Nylon
- Arm Size: 220x4mm
- Weight: 279g
- Motor Mounting Hole Diameter: 3mm
- Integrated Power Distribution Board

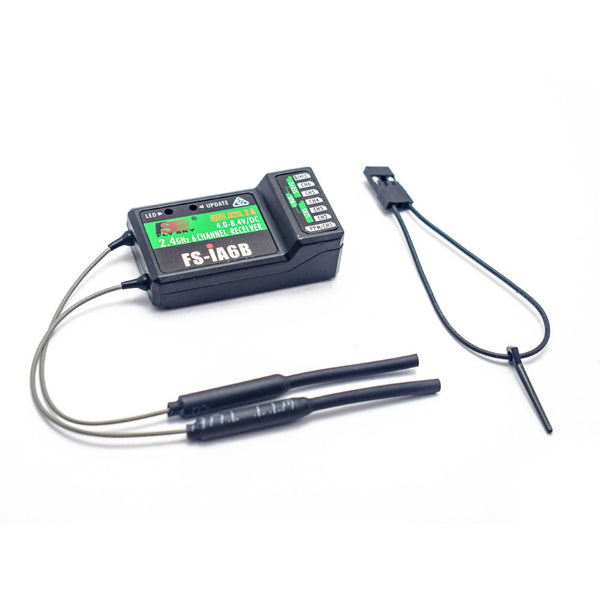

- No. of channels: 6
- Bandwidth (KHz): 500.
- RF Range (GHz): 2.408 ~ 2.475
- Transmitting Power: ≤ 20dBm.
- RF Receiver Sensitivity: -105dbm
