Acceleration & Rotation Sensor

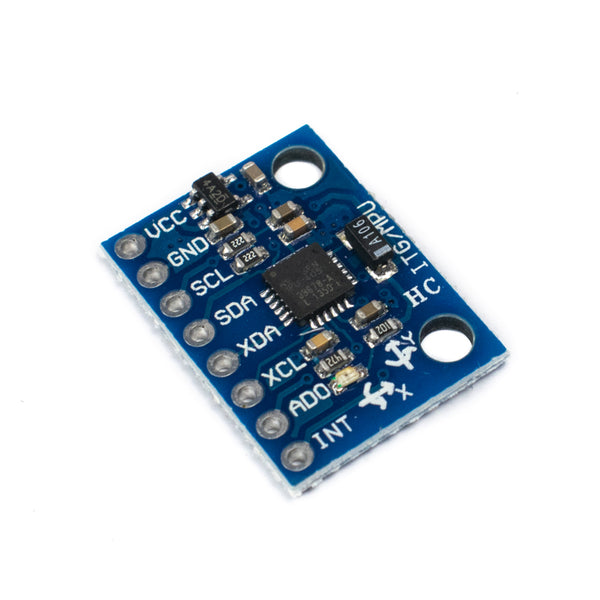

- Product type: Accelerometer with gyroscope
- Chip: MPU6050
- Acceleration range: ±2g, ±4g, ±8g, ±16g
- Pin counts: 8
- Operating Voltage: 5V
- Pin Interface Leads: 2.54mm
- number of Pins: 5
- Cross rocker as a two-way 10K resistor, with the rocker in a different direction.
- Widely used in DIY projects
- Operating Voltage: 3V-5V DC

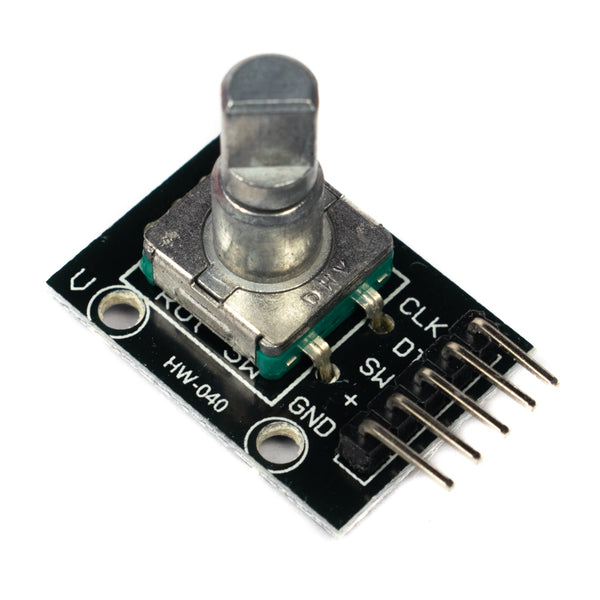

- Encoder Type: Incremental Pulses/360°
- Rotation: 20
- Output: 2-bit grey code
- Mechanical Angle: 360° continuous
- Supply Voltage: 3.3 V/ 5V.
- Interface Type: I²C, SPI.
- Sensing Range: ±2g, ±4g, ±8g, ±16g.
- Sensitivity: X: 28.6 LSB/g, Y: 31.2 LSB/g, Z: 34.5 LSB/g
- Ultra Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V.

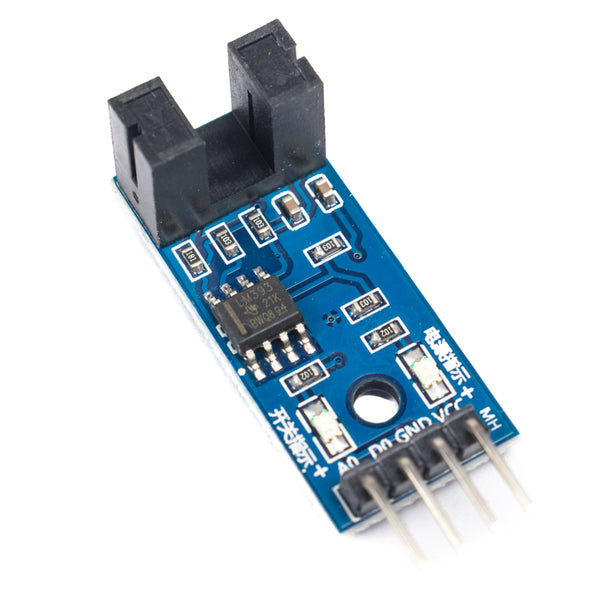

- Using imported groove optical coupling sensor, width 5mm.
- It has the output indicator led, if output level is high, it will off otherwise it will on.
- Good signal and waveform, with a strong driving ability for more than 15mA.
- LM393 wide voltage comparator.
