Description

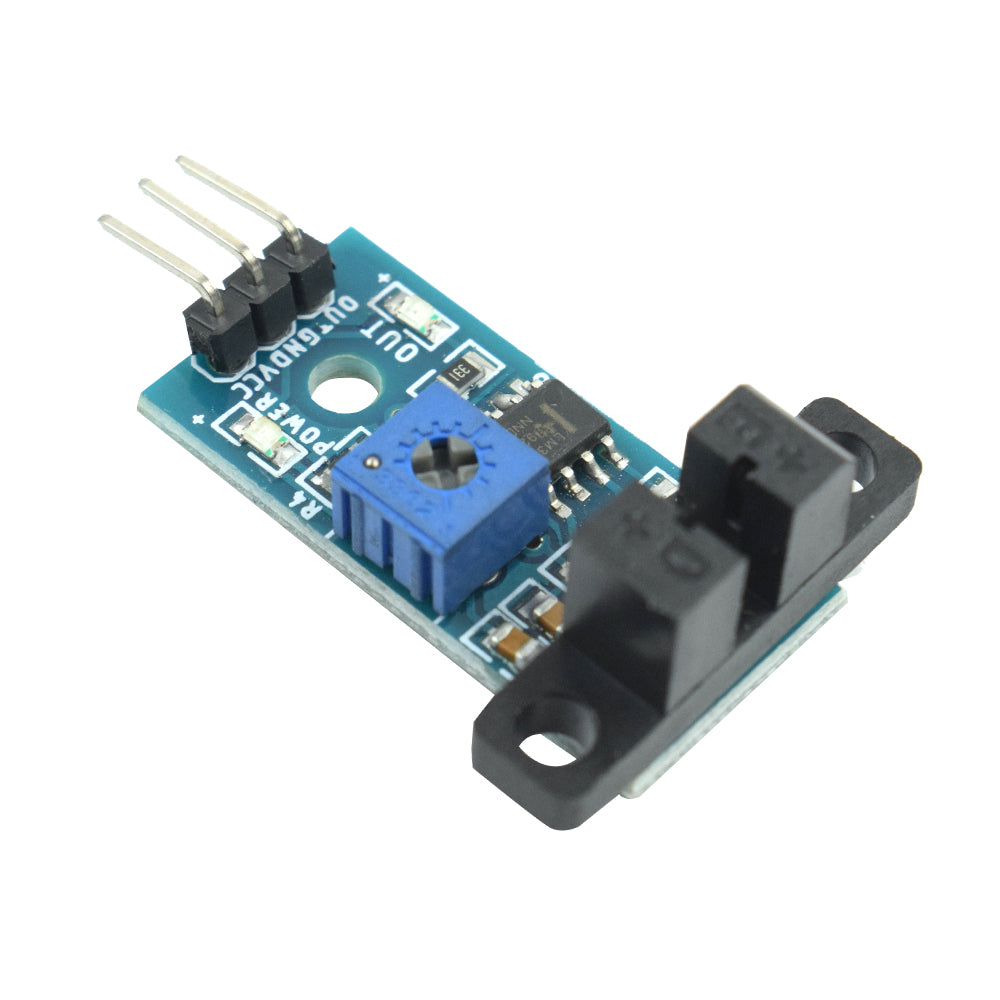

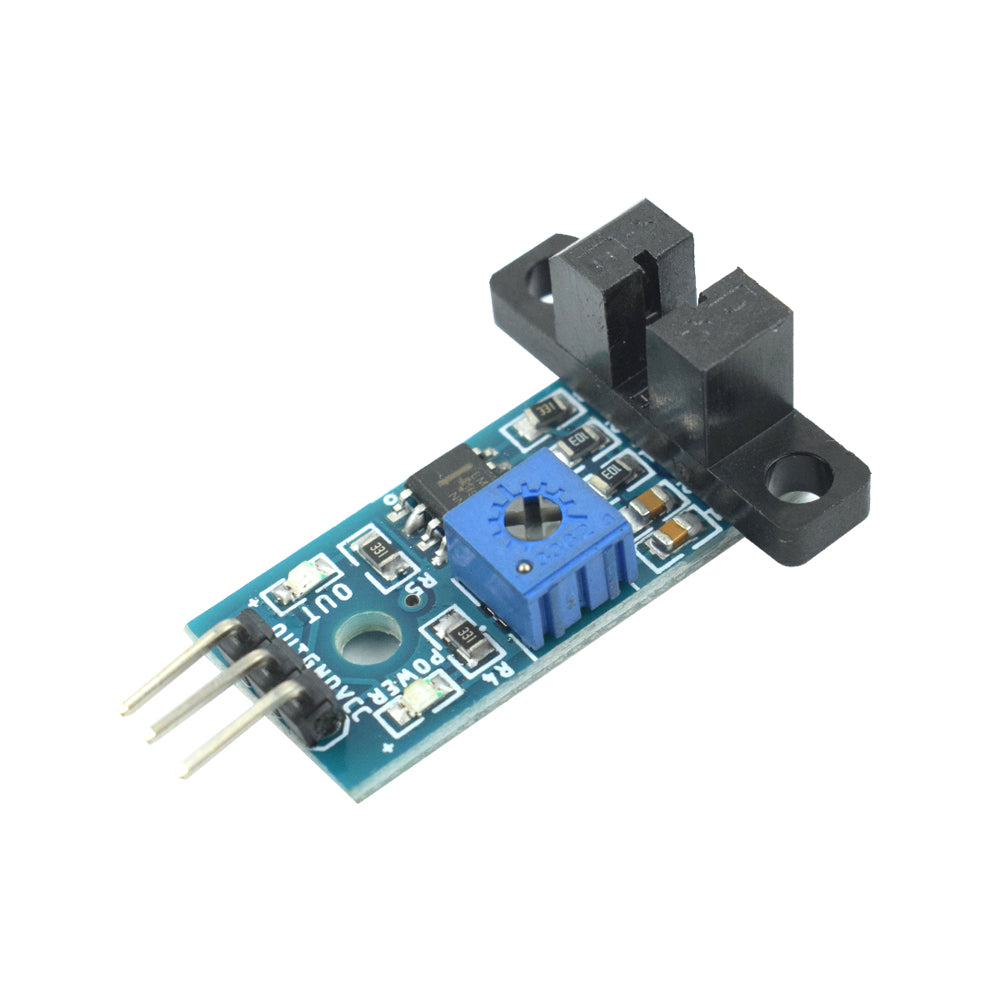

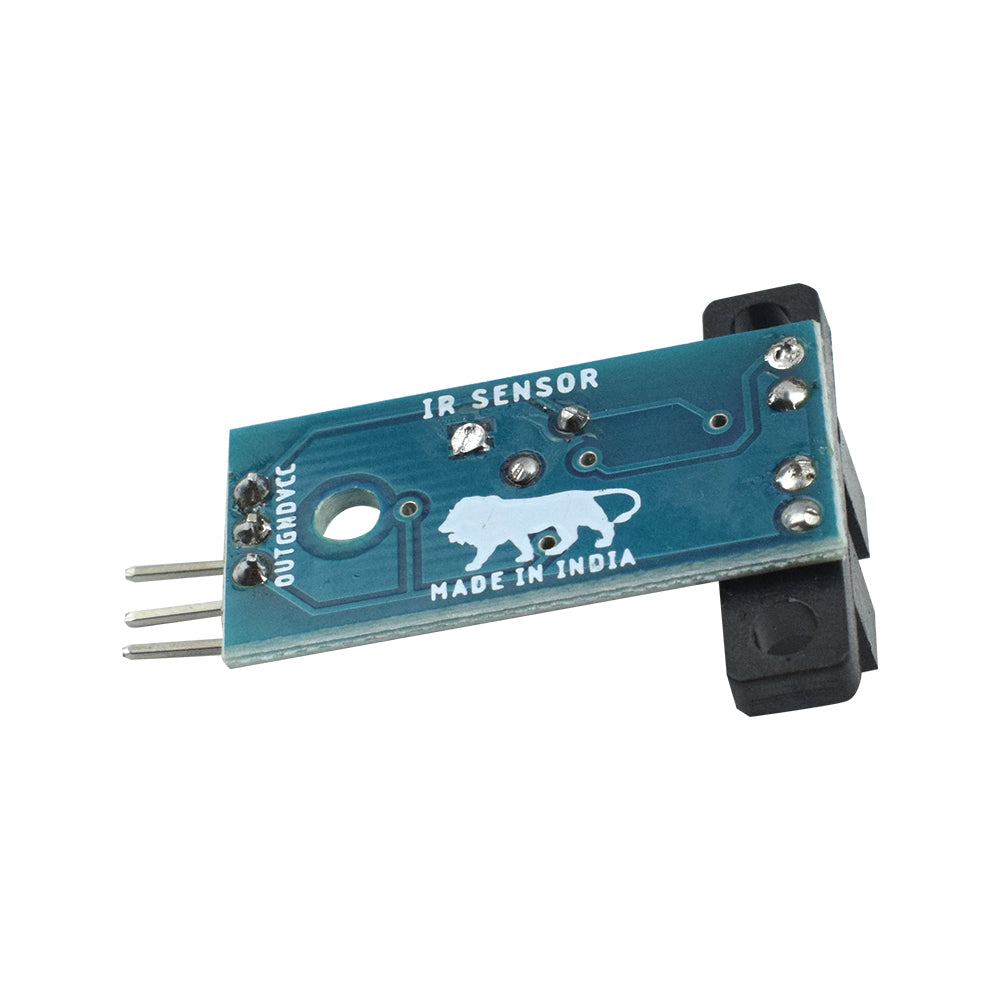

This is an Arduino Speed Measuring Sensor Module. If there is a block detection sensor, such as the speed of the motor encoder, the output interface can be directly connected to a microcontroller IO port.
Pin Configuration
| VCC Pin | Pin 3 : Input voltage is +5V for typical applications |
| Output Pin | Pin 1 : Outputs Analog voltage proportional to current |
| Ground Pin | Pin 2 : Connected to the ground of the circuit |
Features
- Use the LM393 Voltage Comparator IC
- Range Adjustable
- Make in India
Applications
- Speed Measuring Applications
Specifications
| Product | Speed Measuring Sensor Module |
| Type | IR Sensor |
| Operating Voltage | 3.3 ~ 5V DC |
| No. of Pins | 03 |
| Inbuild IC | LM393 |
| Size | 30mm*15mm |
| Make | Make in India |
| Country of Origin | China |
