Voltage & Current Sensor

Filter
View
Showing all 8 Items
  • Voltage supply range: 4.5V to 24V
  • Voltage measurement range: 0-100V
  • Current measurement range: 0-10A
  • Voltage error: ±0.1%
  • Current error: ±1%
  • Number  of Cell: 1~8S
  • Indicator Type: 4 Bar Graph
  • Operating Temperature: -10°C~65°C
  • Mounting hole: M2 Screw
  • Size: 45x20x8mm

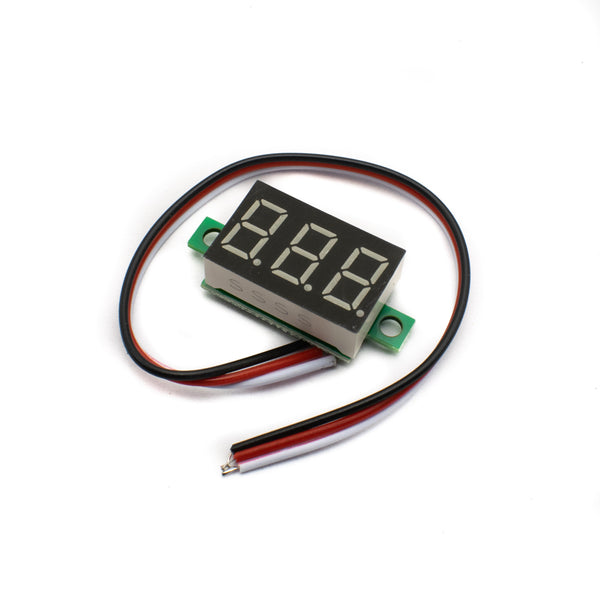

  • Voltage Measurement Range: 0-100V
  • Voltage Supply Range: 4.5V-24V
  • LED Colour: RED
  • Accuracy: 1V
  • Current Consumption <40mA

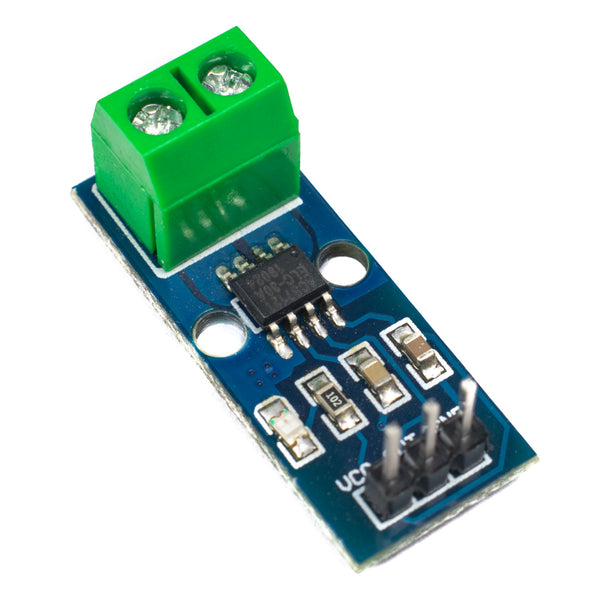

  • Supply Voltage: 4.5V~5.5V DC
  • Measure Current Range: 30A
  • Sensitivity: 66mV/A
  • 5 µs output rise time in response to step input current

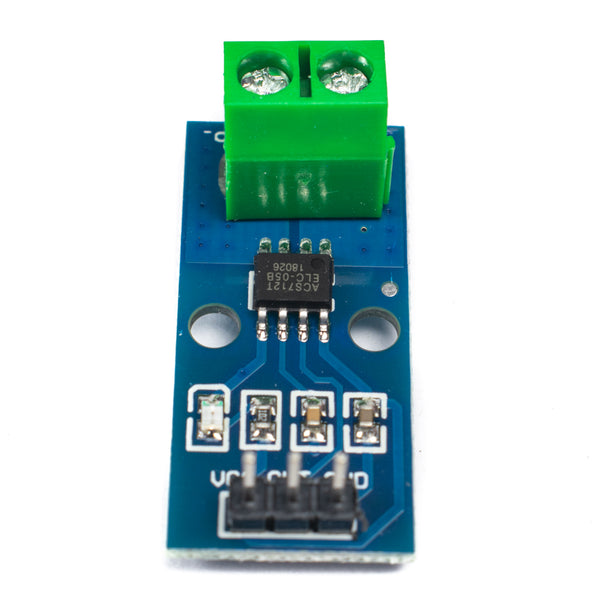

  • Supply Voltage: 4.5V~5.5V DC
  • Measure Current Range: 5A
  • Sensitivity: 185mV/A
  • 5 µs output rise time in response to step input current
  • Supply Voltage: 4.5V~5.5V DC
  • Measure Current Range: 20A
  • Sensitivity: 100mV/A
  • 5 µs output rise time in response to step input current
  • Model: SCT-013-050
  • Max. Input Current: 50A
  • Frequency: 50Hz-150Hz
  • Output Voltage: 0-1V DC
  • Rated Input Current: 50A
