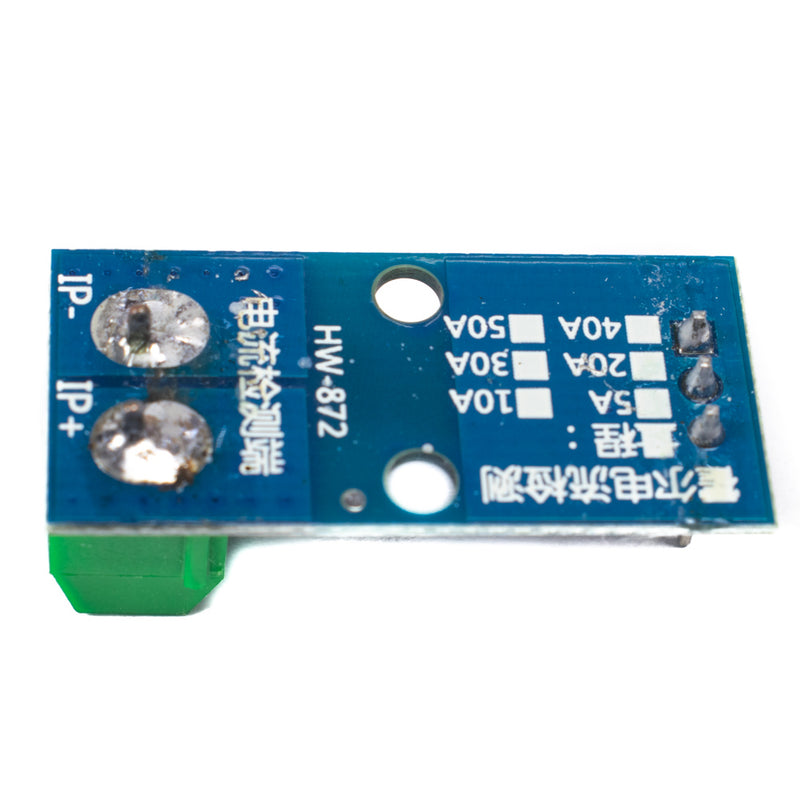

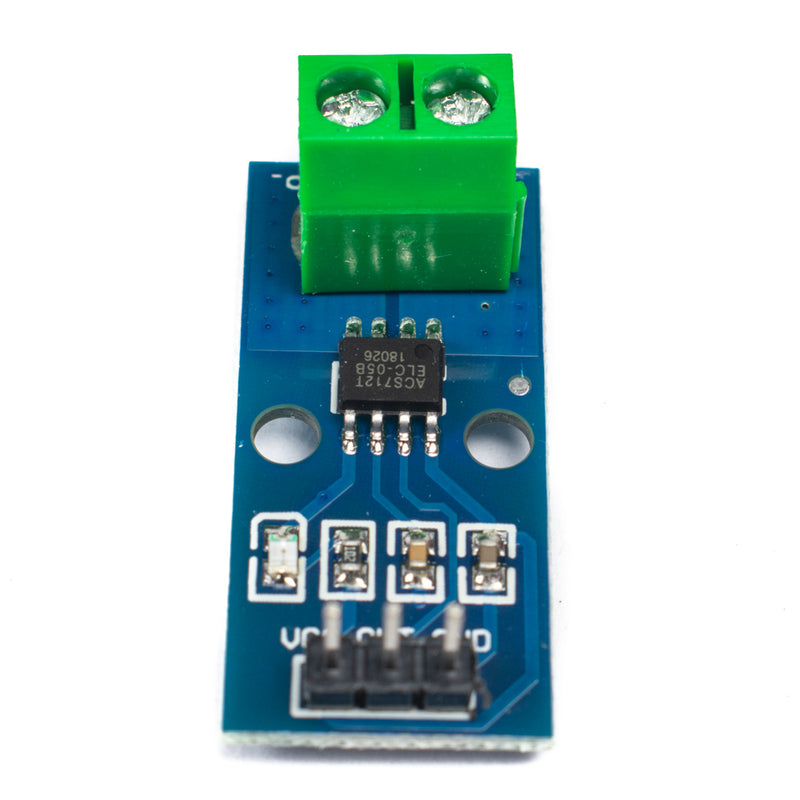

ACS712 5A Current Sensor Module

Sold By: HatchnHackSKU: D18-24

Price:
Sale price₹ 90.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

ACS712 5A Current Sensor Module consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which the Hall IC converts into a proportional voltage. It provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. It is provided in a small surface-mount SOIC8 package. The lead frame is plated with 100 percent matte tin, which is compatible with standard lead (Pb) free printed circuit board assembly processes.

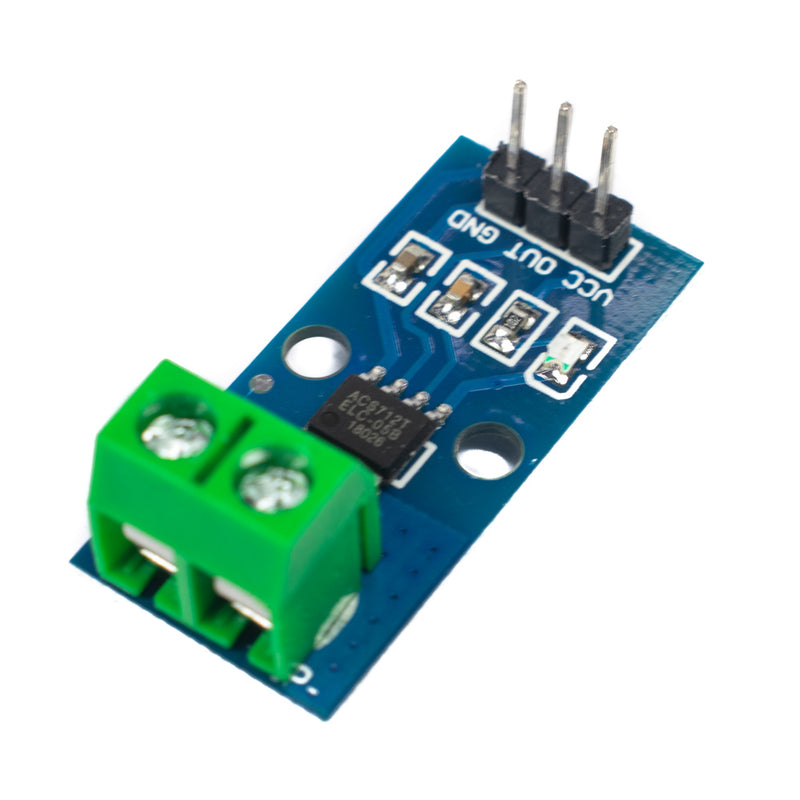

Pin Configuration

 VCC Pin Input voltage is +5V for typical applications
Output Pin Outputs Analog voltage proportional to current
Ground Pin Connected to the ground of the circuit
Wire In(T1) & Wire Out(T2) The wire through current has to be measured is connected here

Features

  • It has a low-noise Analog signal path
  • The device bandwidth is set via the new FILTER pin
  • The 5 µs output rise time in response to step input current
  • The small footprint, low-profile SOIC8 package
  • It has a 5.0 V single-supply operation
  • Output voltage proportional to AC or DC currents
  • The factory-trimmed for accuracy
  • It has extremely stable output offset voltage
  • It has nearly zero magnetic hysteresis
  • The radiometric output from the supply voltage
  • Device bandwidth is set via the new FILTER pin

Application

  • Motor control
  • Load detection and management
  • Switched-mode power supplies
  • Overcurrent fault protection.
Specification
Current sensor chip ACS712ELC-5A
Supply Voltage 5V DC
Current Range -5 to +5 A
Sensitivity 100 mV/A
Scale Factor 185 mV per A
Voltage at 0A VCC/2
Length 31.73 mm (1.24")
Width 13.25 mm (0.52")
Country of Origin China
