Integrated Circuits and Base

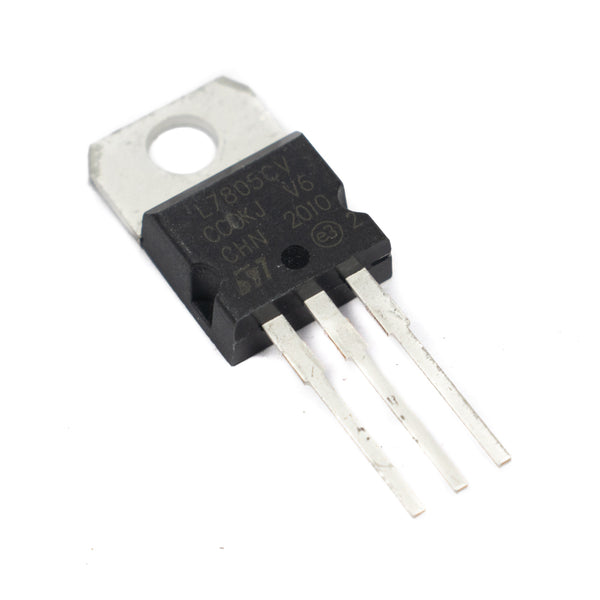

- LM7805 is a positive voltage regulator that outputs +5 volts
- The LM7805 is a three-pin IC
- Output Current up to 1.5A
- Protection: Thermal Overload Protection, Short Circuit Protection
- Available in TO-220 package
- Operating Voltage: 5 - 15 volts
- Output Current/Input Current: 200 mA
- Pins: 8
- Package Type: Dual Inline Package (DIP)
-
Timing from Microseconds to Hours
- 8 Pin IC Base
- Molded Notch for Proper Orientation
- Easy to Insert and Remove ICs
- Mounting Type: Through Hole
- Output voltage range adjustable from 1.25 V to 37 V
- Output current greater than 1.5 A
- Internal short-circuit current limiting
- Thermal overload protection
- Available in TO-220 Package
- Suitable IC Package: PDIP 16
- Mounting Type: Through hole
- Height: 7.62mm
- Pitch: 2.54mm

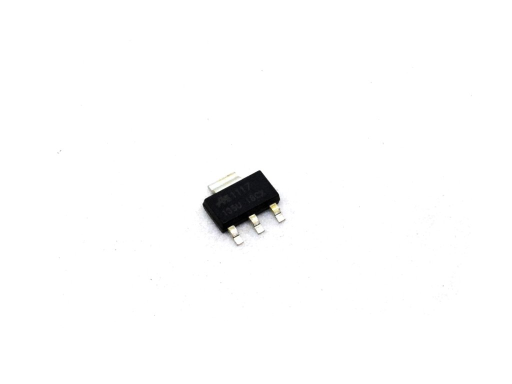

- Output Voltage: 3.3V
- Max. output Current: 800mA
- Package: SOT-223
- Load Regulation: 0.4%
- LM7812 is a positive voltage regulator that outputs +12 volts
- The LM7805 is a three-pin IC
- Output Current up to 1.5A
- Protection: Thermal Overload Protection, Short Circuit Protection
- Available in TO-220 package
- DC voltage gain: 100 dB
- Bandwidth (unity gain): 1 MHz
- Input bias current: 20 nA
- Input Offset Voltage: 2 mV
- Input Supply Voltage: Single: 3 -32 volts, Dual: 1.5-16 volts
- Wide supply voltage range: 3.0V to 15V
- High noise immunity: 0.45 VDD (typ.)
- Low power Fan out of 2 driving 74L TTL compatibility: or 1 driving 74LS
- Medium speed operation: 5.0 MHz (typ.) with 10V VDD
- Low power: 10 µW (typ.)
- Product Type: IC Base
- Mounting Type: Through Hole
- No. of Pins: 28
- Overall Height: 7.62mm
- Pitch: 2.54mm
- Output Voltage: 5V
- Max. Output Current: 1A
- Load Regulation: 0.4%
- Max. Drop-out Voltage: 1.3V
- Package: SOT-223
- Logic Family: HC
- Logical Function: Shift Register
- Operating Supply Voltage: 5V
- Output: 3-State
- LM7809 is a positive voltage regulator that outputs +9 volts
- The LM7809 is a three-pin IC
- Output Current up to 1.5A
- Protection: Thermal Overload Protection, Short Circuit Protection
- Available in TO-220 package
- Motor Voltage (VCC2): 4.5 V to 36 V
- Maximum peak motor current: 1.2 A
- Maximum continuous motor current: 600 mA
- Supply voltage to VCC1: 4.5 V to 7 V
- Transition time: 300 nS
- Operating Voltage: 1.8-5.5V
- Speed Grade: 0-20MHz
- 32KB Flash
- Number of Pin: 28
- Suitable IC Package: PDIP 14
- Mounting Type: Through hole
- Height: 7.62mm
- Pitch: 2.54mm
