Description

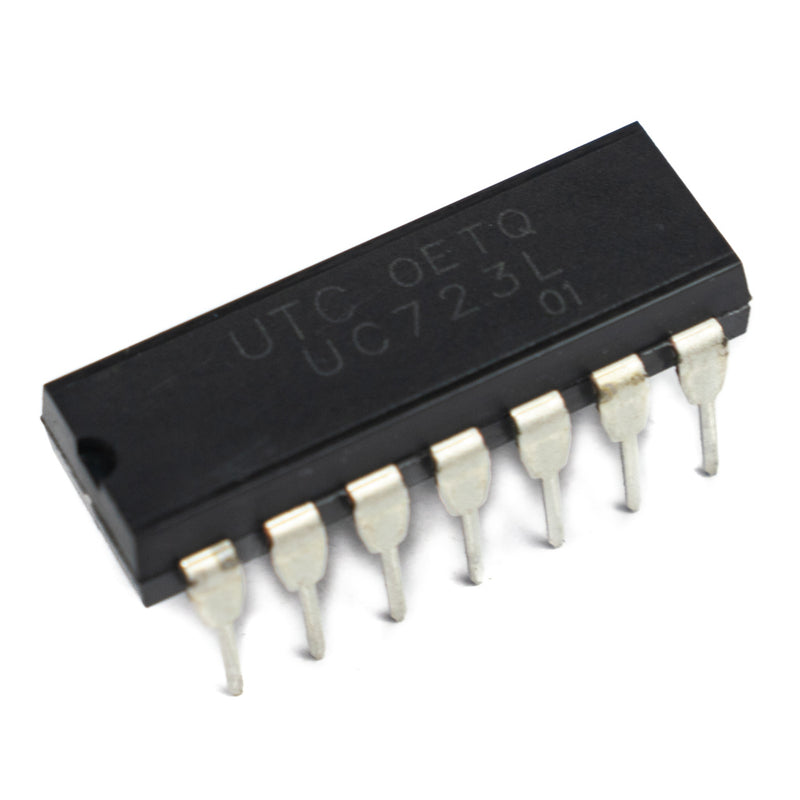

The UTC LM723 is a silicon monolithic integrated circuit, designed for service as voltage regulator at output voltages, ranging from 2V to 37V at current up to 150mA. It includes a temperature-compensated reference amplifier, an error amplifier, a power series pass transistor, and a current-limiting circuit.
Features:
- Up to 150mA output current
- Adjustable output voltage (from 2V to 37V)
- Positive and negative voltage regulation
- Regulation in excess of 10A with suitable pass transistors
- Input and output short-circuit protection
- Load and line regulation< 0.03%
Specifications
| Model | LM723 |
| Brand | UTC |
| Regulated Output Voltage | 5V |
| Line Regulation (ΔVIN = 3V) | 0.5mV |
| Load Regulation (ΔIL = 50 mA) | 1.5mV |
| Maximum Pulse Voltage from V + to V − (50 ms) | 50V |
| Maximum Continuous Voltage from V + to V − | 40V |
| Maximum Input-Output Voltage Differential | 40V |
| Maximum Amplifier Input Voltage (Differential) | 25mA |
| Package | TO264 |
| Maximum Amplifier Input Voltage (Either Input) | 8.5V |
| Quantity | 2 |
| Country of Origin | China |
