L293d Motor Driver IC

Available: In Stock
Wishlist
₹ 30.00
₹ 25.42 + ₹ 4.58 (18% GST)
  • Order within
Secure

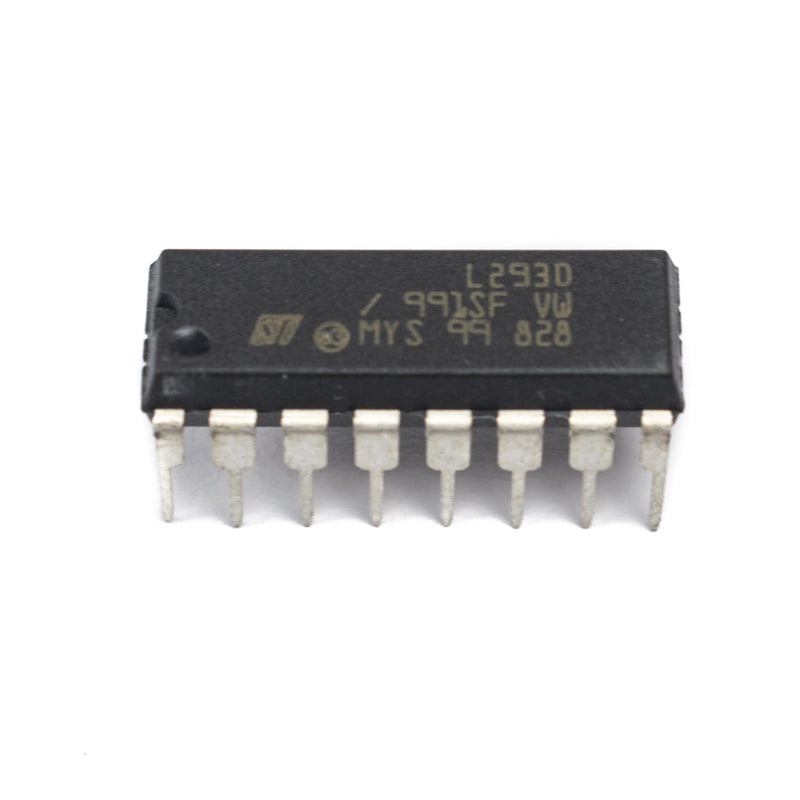

L293D is a typical Motor driver that allows DC motors to drive in either direction. L293D is a 16-pin IC that can control a set of two DC motors simultaneously in any direction.

Features

  • It can be used to run Two DC motors with the same IC.
  • Speed and Direction control is possible
  • In this, automatic thermal shutdown is available

Applications

  • It is used to drive high current Motors using Digital Circuits
  • It can be used to drive Stepper motors
  • The high current LEDs can be driven by this
  • Used in the relay Driver module



L293D is a typical Motor driver that allows DC motors to drive in either direction. L293D is a 16-pin IC that can control a set of two DC motors simultaneously in any direction.

Features

  • It can be used to run Two DC motors with the same IC.
  • Speed and Direction control is possible
  • In this, automatic thermal shutdown is available

Applications

  • It is used to drive high current Motors using Digital Circuits
  • It can be used to drive Stepper motors
  • The high current LEDs can be driven by this
  • Used in the relay Driver module



Motor Voltage (VCC2) 4.5 V to 36 V
 Maximum peak motor current 1.2 A
Maximum continuous motor current 600 mA
Supply voltage to VCC1 4.5 V to 7 V
Transition time 300 nS





Pin 1 This pin enables the input pin Input 1 and Input 2
 Pin 2 Directly controls the Output 1 pin. Controlled by digital circuits
Pin 3 Connected to one end of Motor 1
Pin 4 Ground pins are connected to the ground of circuit (0V)
Pin 5 Ground pins are connected to ground of circuit (0V)
Pin 6 Connected to another end of Motor
Pin 7 Directly controls the Output 2 pin. Controlled by digital circuits
Pin 8 Connected to Voltage pin for running motors (4.5V to 36V)
Pin 9 This pin enables the input pin Input 3(10) and Input 4(15)
Pin 10 Directly controls the Output 3 pin. Controlled by digital circuits
Pin 11 Connected to one end of Motor 2
Pin 12 Ground pins are connected to ground of circuit (0V)
pin 13 Ground pins are connected to ground of circuit (0V)
Pin 14 Connected to another end of Motor 2
Pin 15 Directly controls the Output 4 pin. Controlled by digital circuits
Pin 16 Connected to +5V to enable IC function
