UNITROAD UCC3895 BiCMOS PWM Controller IC

Save 5%
Sold By: HatchnHackSKU: E08-57

Price:
Sale price₹ 145.00 Regular price₹ 153.00

Tax included Shipping calculated at checkout

Min Qty:

Description

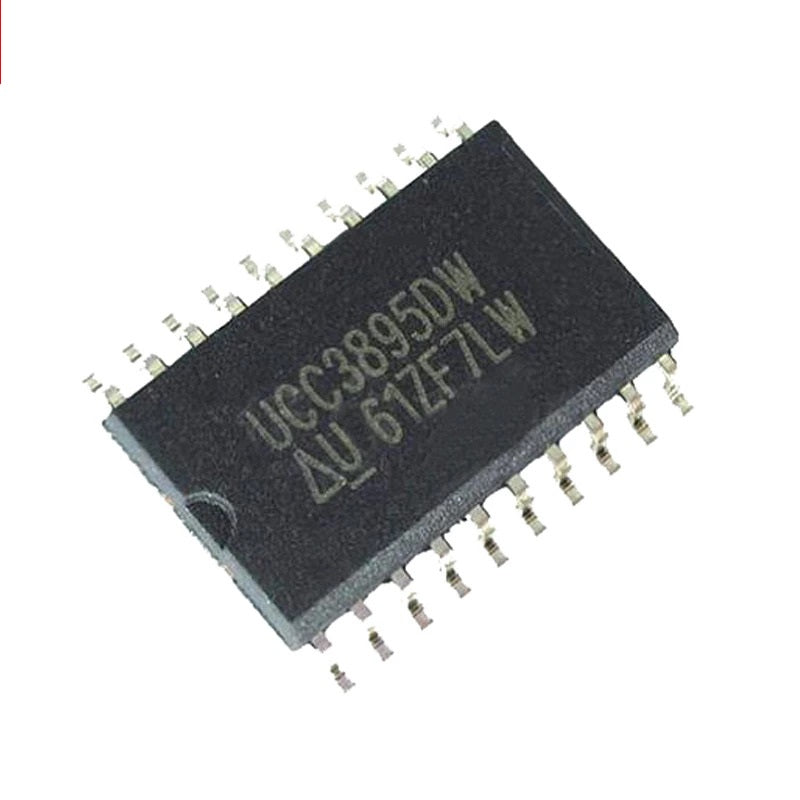

The UCC3895 is a phase shift PWM (pulse-width modulation) controller that implements control of a full-bridge power stage by phase shifting the switching of one half-bridge with respect to the other. It allows constant frequency pulse-width modulation in addition with resonant zero-voltage switching to provide high efficiency at high frequencies. It can be used either as a voltage mode or current mode controller. The improved features include enhanced control logic, adaptive delay set, and shutdown capability. Since it is built in BCDMOS (complex circuit composed of Bipolar, CMOS and LDMOS devices), it operates with dramatically less supply current than it’s bipolar counterparts. The UCC3895 can operate with a maximum clock frequency of 1MHz.
The BiCMOS technology combines the strengths of two different process technologies into a single chip: Bipolar transistors offer high speed and gain, which are critical for high-frequency analog sections, whereas CMOS technology excels in constructing simple, low-power logic gates.

Features
  • Programmable Soft Start/Soft Stop and Chip Disable via a Single Pin
  • Programmable Output Turn-on Delay
  • Operation to 1MHz
  • Capability for Voltage Mode or Current Mode Control
  • 0% to 100% Duty Cycle Control

Applications :

  • Phase-Shifted Full-Bridge Converters
  • Off-Line, Telecom, Datacom and Servers
  • Distributed Power Architecture
  • High-Density Power Modules

For more information, refer to Datasheet

Specification
Model UCC3895
Brand UNITROAD
Supply Voltage  17V
Supply Current 30mA
Output Current 100mA
Reference Current  15mA
Operating Temperature 0°C~70°C
Storage Temperature -65°C~150°C
Package SMD
Country of Origin China
