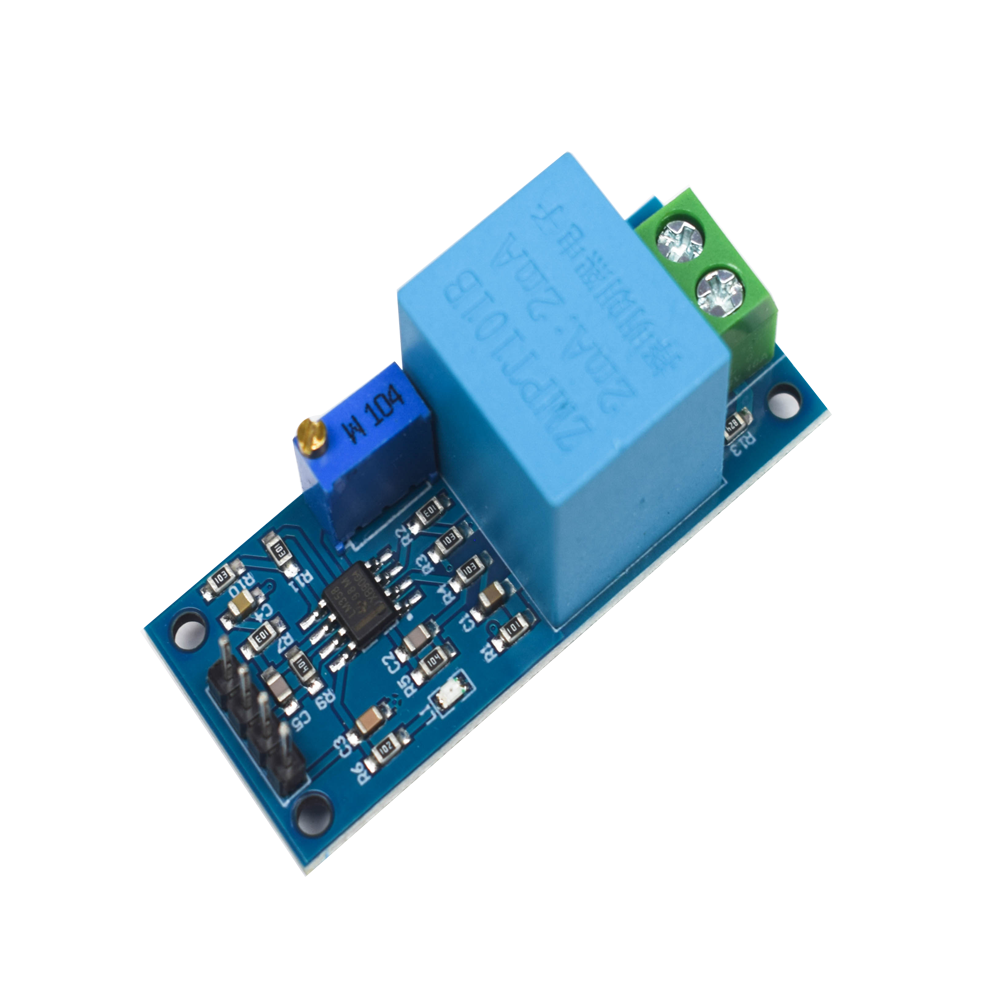

ZMPT101B AC Single Phase Voltage Sensor Module

Sold By: HatchnHackSKU: J08-39

Price:
Sale price₹ 114.00

Tax included Shipping calculated at checkout

Min Qty:

Description

This is an AC Single Phase Voltage Sensor Module. The ZMPT101B AC Voltage Sensor is ideal for DIY projects requiring accurate AC voltage measurement using a voltage transformer. This is an excellent choice for measuring AC voltage using an open-source platform such as Arduino/ESP8266/Raspberry Pi. This module can be measured within 250V AC voltage; the connected analog output can be adjusted.

Pinout

  1. Pin 1 & 2 (AC Source)
  2. Pin 3,4,5,6 (VCC, OUT, GND, GND)
Specifications
 Product  ZMPT101B
 Type AC Single Phase Voltage Sensor Module
 No. of Pins 06
 Measured Voltage Up to 250
 Supply Voltage 5-30V
 Operating temperature
40ºC ~ + 70ºC
 Dimensions 51mm*21mm*20mm
 Make Made in India
Country of Origin China
