Description

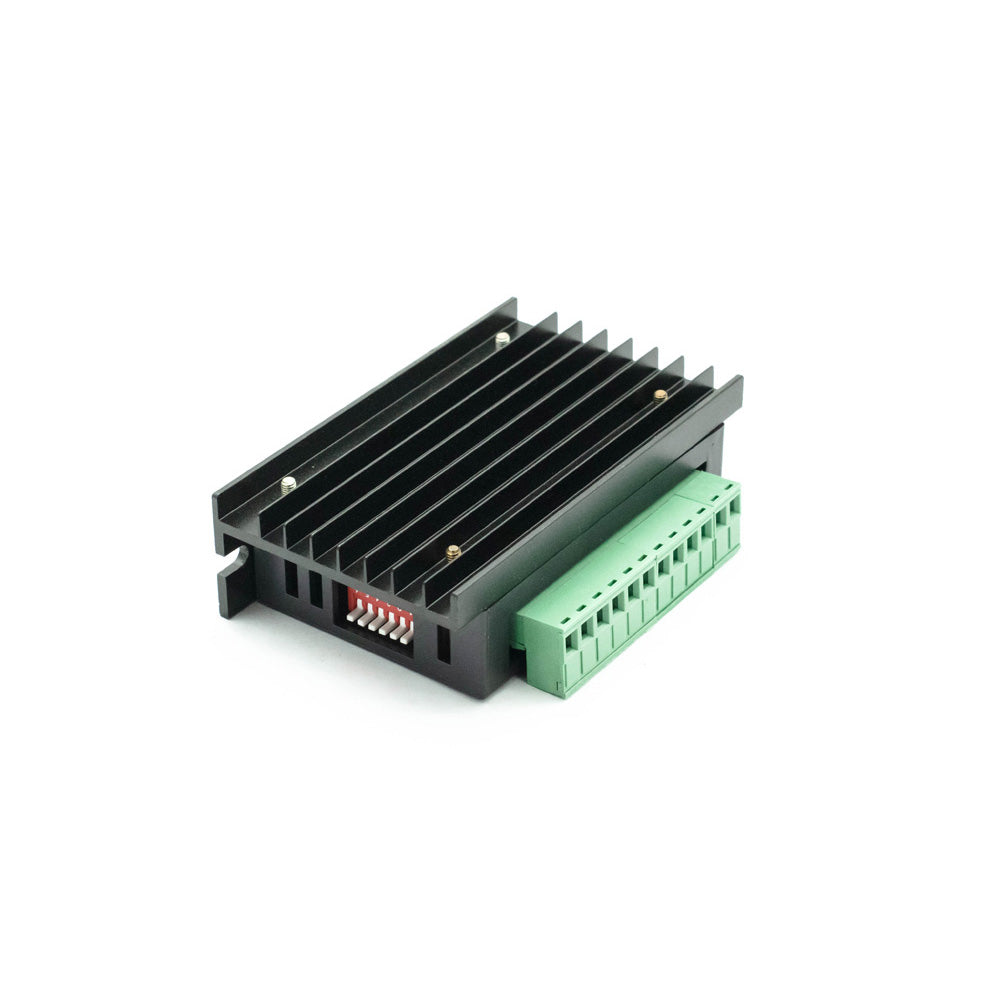

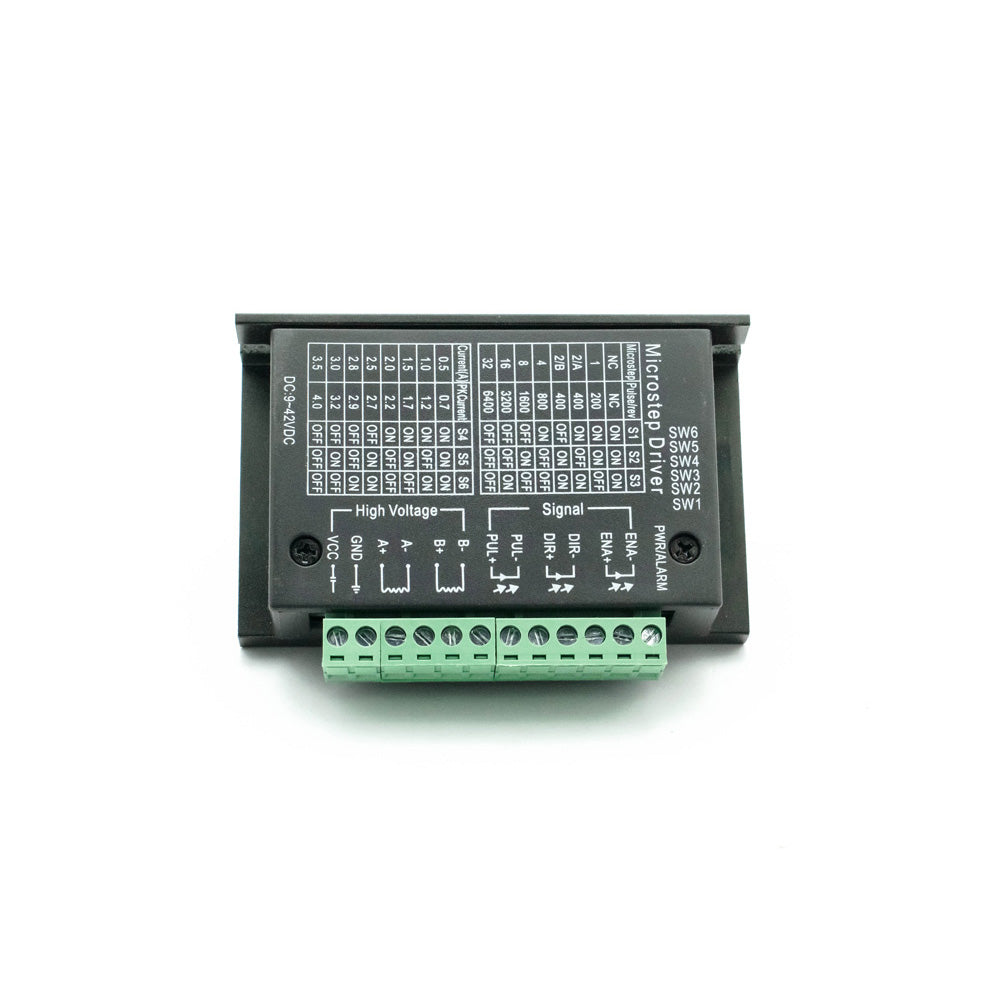

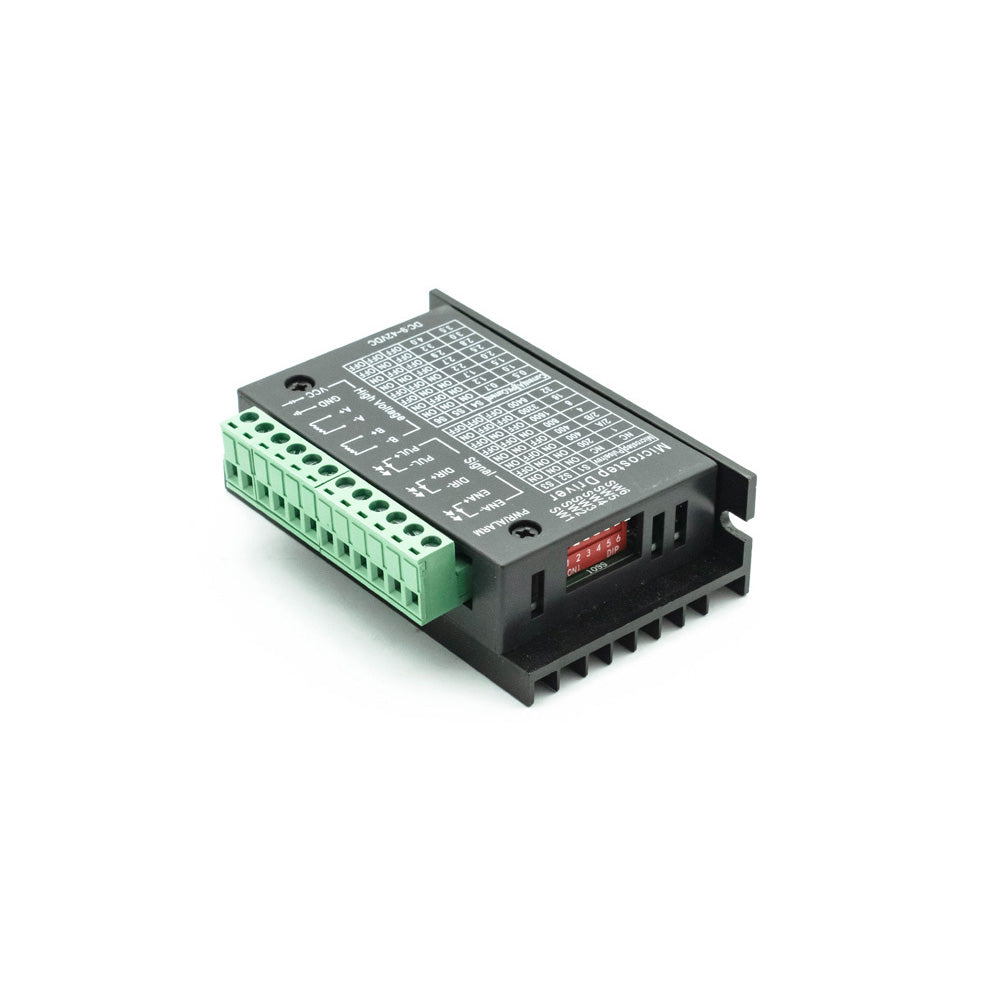

The TB6600 Stepper Motor Driver is a user-friendly professional stepper motor driver that can control a two-phase stepping motor. It works with any microcontroller that can generate a 5V digital pulse signal. TB6600 stepper motor driver has a wide range of power input, 9~42VDC power supply. And it can output a 4A peak current, which is enough for most stepper motors. The stepper driver supports speed and direction control.
The ability to control the speed and position of the stepper motor is one of the benefits of using the TB6600 Stepper Motor Driver. These drivers are suitable for a limited number of stepper motors. Using these types of drivers, one can reduce the amount of code and connections. TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis Upgraded Version of the 42/57/86 Stepper Motor segment increased to 32 segments, suitable for high subdivision applications.
Specification
| Supply Voltage | 9-42V DC |
| Supply Current | 0-5A |
| Output Current | 0.5 to 4.0A |
| Output Signal | 3.3 to 24V |
| Max. Power Output | 160W |
| Micro Step | 1, 2/A, 2/B, 4, 8, 16, 32 |
| Operating Temperature | -10°C to 50°C |
| Country of Origin | China |
