Showing all 16 Items
  • Maximum AC load current: 7A @ 250/ 10A @ 120V AC
  • Maximum DC load current: 12A @ 120/ 10A @ 24V DC
  • Trigger Voltage (Voltage across coil): 5V DC
  • Operating time: 10msec
  • Release time: 5msec
  • Single Channel
  • Relay Coil Voltage: 5V DC
  • One normally closed Contact one normally open contact
  • High Impedance controller pin
  • Max AC Voltage 250V
  •  Maximum AC load current: 7A @ 250/125V AC
  • Maximum DC load current: 10A @ 30/28V DC
  • Trigger Voltage (Voltage across coil): 12V DC
  • Operating time: 10msec
  • Release time: 5msec

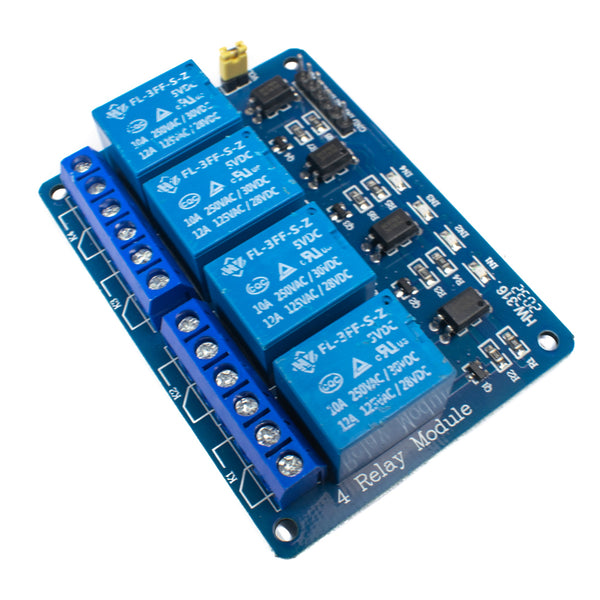

  • Number of Channels: 4
  • AC 250V 10A
  • DC 30V 10A
  • Coil Control Voltage: DC 5V
  • Max. Output Control: 250V AC 10A, 30V DC 10A
  • Control Signal Type: TTL Level
  • Number of Relays: 2
  • Size: 140x55x19.3mm
  • Operating Voltage: DC 5V
  • Coil voltage: 12 V (DC)
  • Current rating: 30 Amp
  • Operating temperature: - 55 °C - 85 °C
  • Contact capacity: 30A @ 250V AC 30A @ 28V DC
  • Dimension: 32.5 mmx27.5 mmx20 mm
  • High Power Relay
  • Max. Rated Current(Normally Open) : 30A
  • Max. Rated Current (Normally Close): 20A
  • Max. Rated Voltage: 250V
  • Coil Operating Voltage: 12V DC
  • Coil voltage: 6 V (DC)
  • Current rating: 30 Amp
  • Operating temperature: - 55°C - 85°C
  • Contact capacity: 30 A at 250 V AC 30 A at 28 V DC
  • Dimension: 32.5x27.5x20 mm
  • Current rating: 7 Amp
  • Coil voltage: 5V (DC)
  • Operating temperature: - 55 °C - 85 °C
  • Contact capacity: 7 A at 250 V AC 7 A at 28 V DC
  • Dimension: 32.5x27.5x20 mm
  • Rated AC Load Current: 7A @240V AC, 7A @125V AC
  • Maximum DC Load Current: 7A @28V DC
  • Coil Power Consumption: 0.36W
  • Trigger Voltage(across coil): 12V DC
  • Dimension: 19mmx15.5mmx15.5mm
  • Rated AC Load Current: 10A @240V AC, 10A @125V AC
  • Maximum DC Load Current: 10A @28V DC
  • Coil Power Consumption: 0.36W
  • Trigger Voltage(across coil): 12V DC
  • Dimension: 19mmx15.5mmx15.5mm
  • Brand: OEN (O/E/N)
  • Rated Voltage: 230 VAC/28VDC
  • Maximum Continuous Current: 5A @ 230VAC/24VDC
  • Trigger Voltage (Voltage across coil): 12V DC
  • Coil Resistance: 285 ohms
  • Number of Channels: 8
  • Operating Voltage: 5V
  • Maximum Switching Current (AC): 10A @ 250V AC
  • Maximum Switching Current (DC): 10A @ 30V DC
  • Size: 140x58mm
  •  Maximum AC load current: 7A @ 250 VAC
  • Maximum DC load current: 10A @ 30/28V DC
  • Trigger Voltage (Voltage across coil): 24V DC
  • Power Consumption: 360mW
  • Channel: 2
  • Trigger Voltage: 12V DC
  • Trigger Current: 20mA
  • AC Switching Voltage: 10A @250V
  • DC Switching Voltage: 10A @30V
  • Series Name: FBR46
  • Coil Type: -15
  • Nominal Voltage:  6V DC
  • Nominal Current: 25mA
  • Coil Resistance: 240Ω
