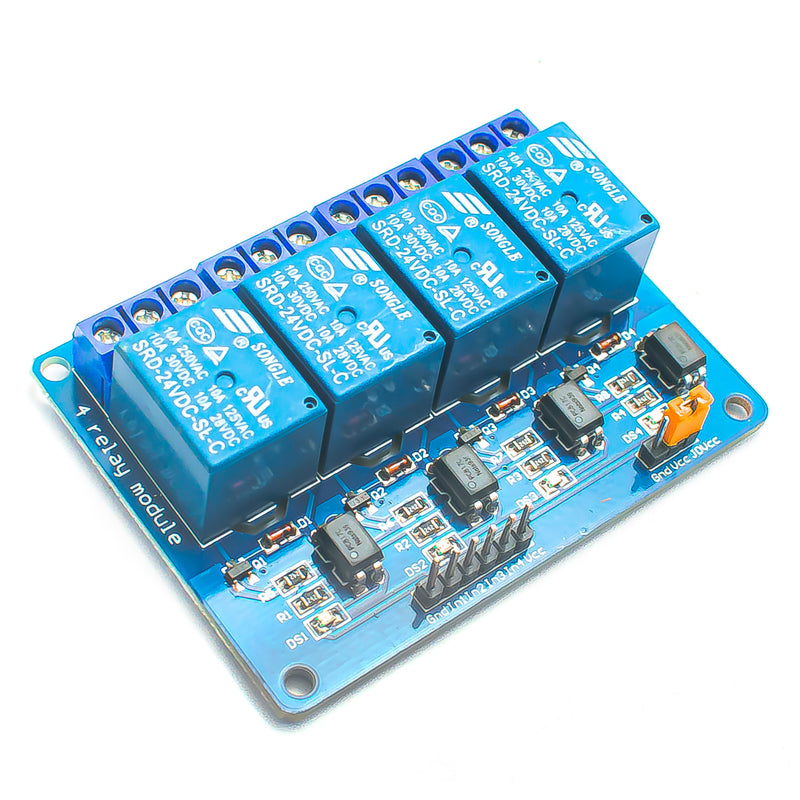

4 Channel 24V Relay Module with Optocoupler

Sold By: HatchnHackSKU: 9H04

Price:
Sale price₹ 249.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

This 24 Volts operated 4 Channel Relay Module is an interface board any controller like Arduino, AVR, PIC, ARM, etc., can control it using digital signals. This module is capable of handling high currents such as AC250V 10A or DC30V 10A. The digital outputs from controllers and processors control larger loads and devices such as DC motors, AC motors, and other AC and DC devices. It's a four-channel relay module, which means it can control up to four devices. Each relay or channel in a four-channel relay module requires a driving current of 15-20 mA and a 24 volt supply.

Module Interface

VCC: Connect power supply according to relay voltage.
GND: Connect negative terminal (Ground)
IN1: Low-Level Triggered
IN2: Low-Level Triggered
IN3: Low-Level Triggered
IN4: Low-Level Triggered

Specification
Operating Voltage 24V DC
Operating Current 20mA
AC Switching Capacity 250V @10A
DC Switching Capacity 30V @10A
No. of Channels 4
Size 71.6x53x18.6mm
