Description

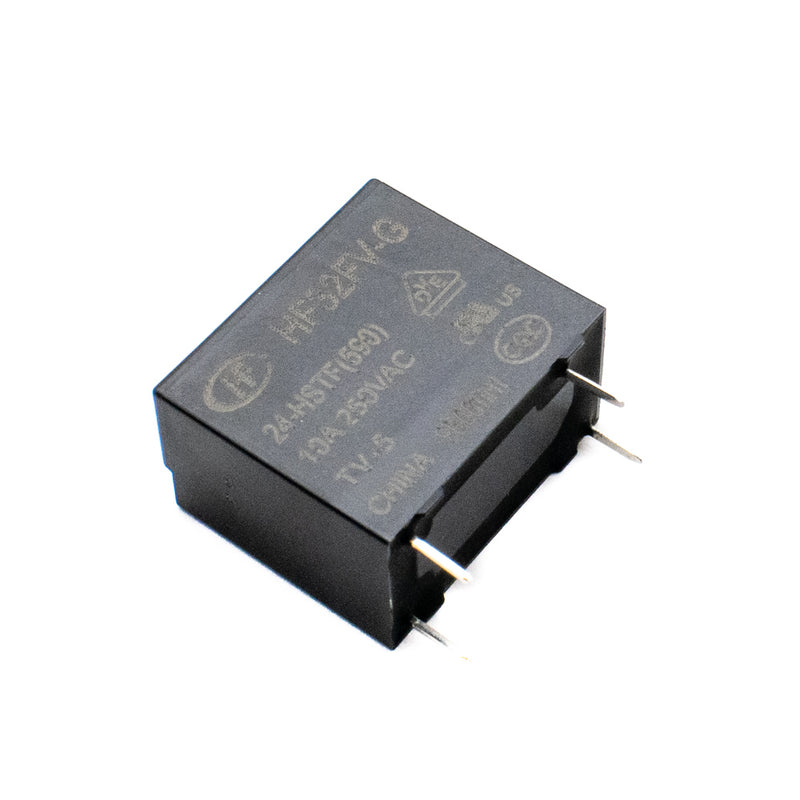

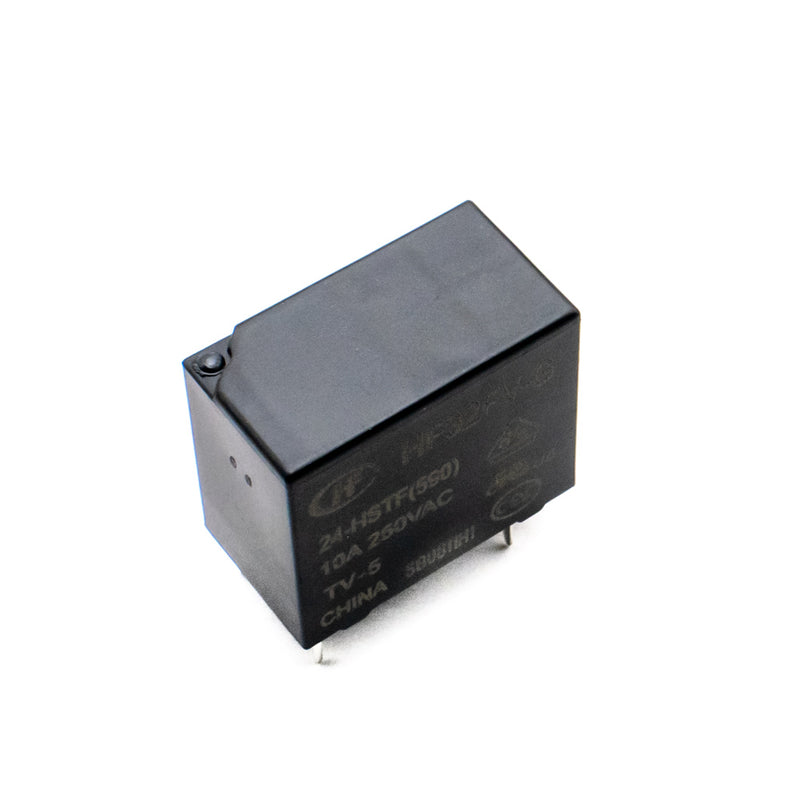

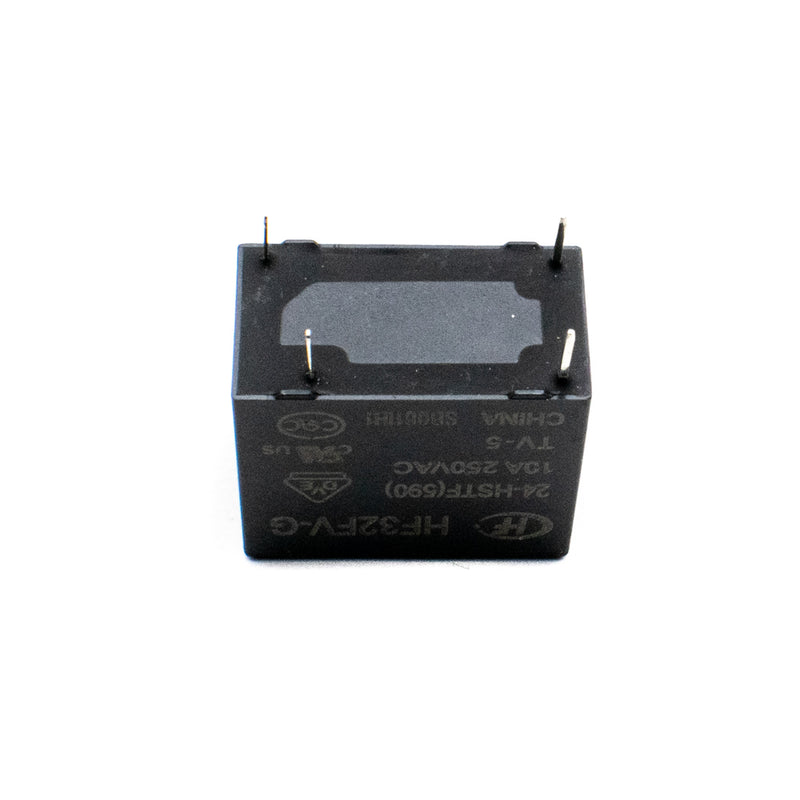

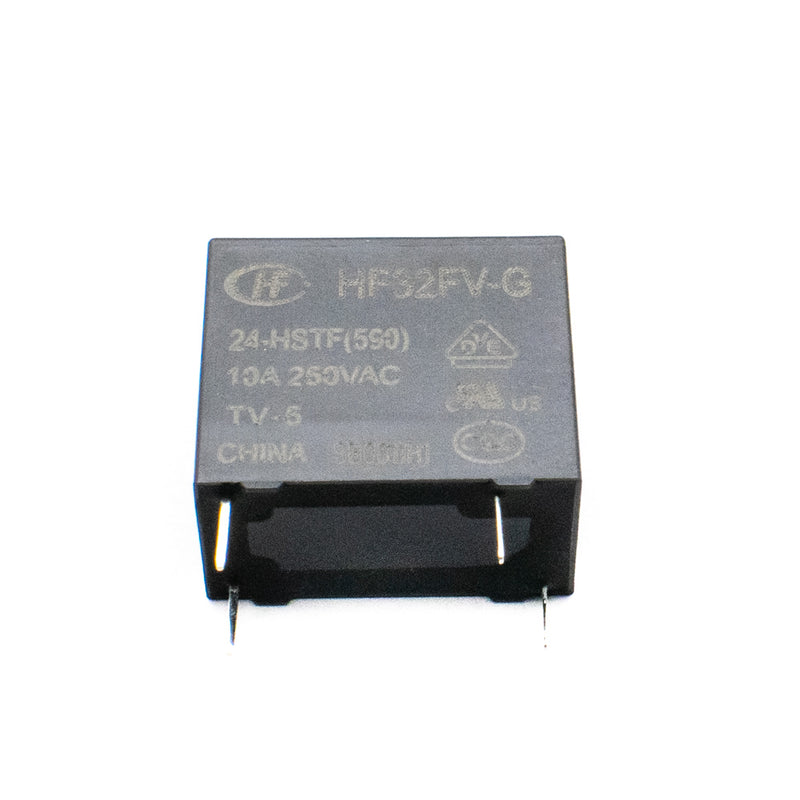

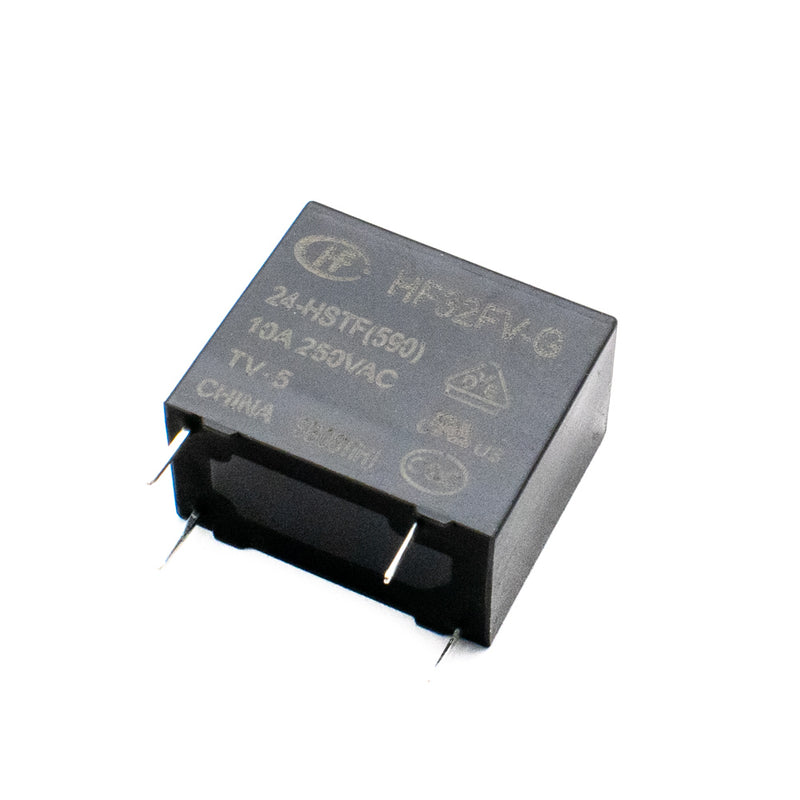

Power Relay 250V AC 10A HF32FV-G uses an electromagnet to open or close a circuit when the input (coil) is correctly excited. It can provide a high level of isolation between the control signal (coil) and the output (contacts). An electromagnet is the heart of a relay (a coil of wire that becomes a temporary magnet when electricity flows through it). 10A switching capabilities, 4kV dielectric strength (between coil and contacts), and an environmentally friendly product.
Features
- 10A switching capability
- Dielectric strength 4kV (between coil and contacts)
- MAX Power: 250V AC
- Sensitive
- Plastic sealed body
Specifications
| Max. Load Current | 10A |
| Load Voltage | 250V AC |
| Nominal Coil Voltage | 24V DC |
| Contact Resistance | 100mΩ |
| Size | 19.6x18.2x9.8mm |
| Country of Origin | China |
