Description

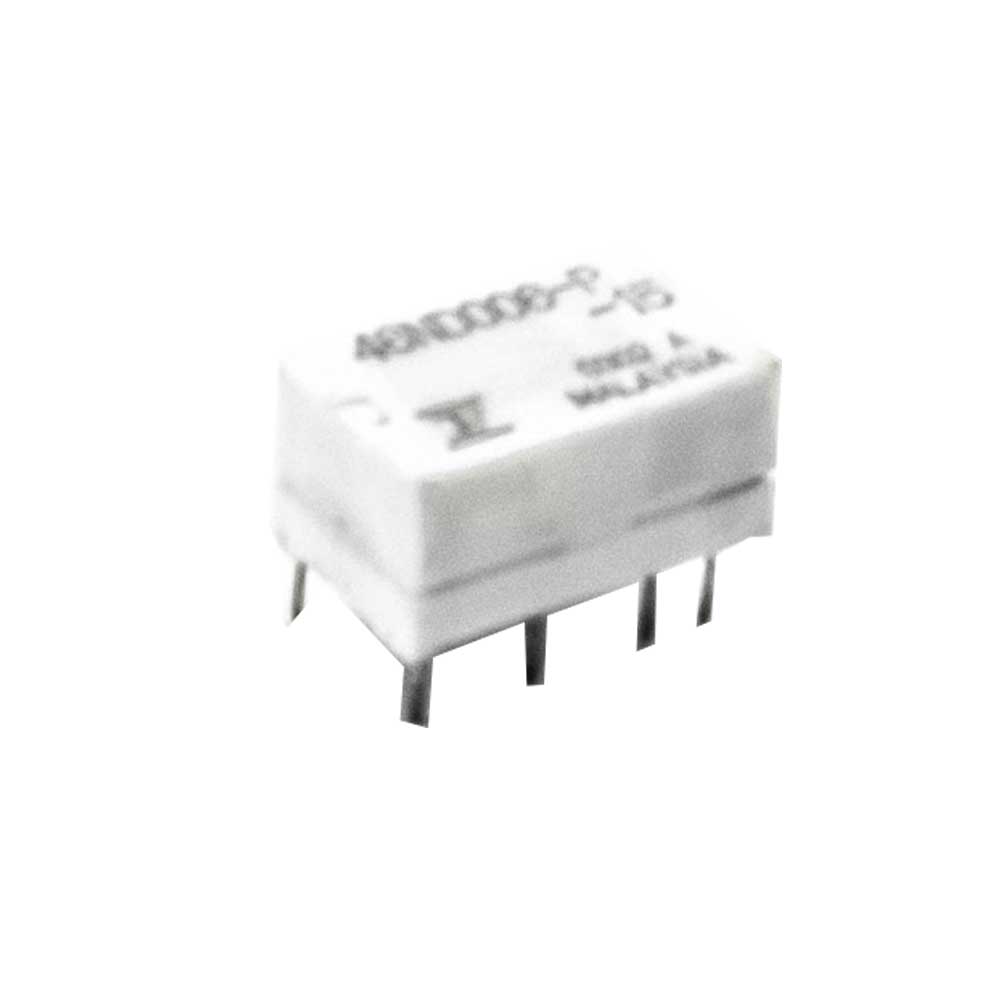

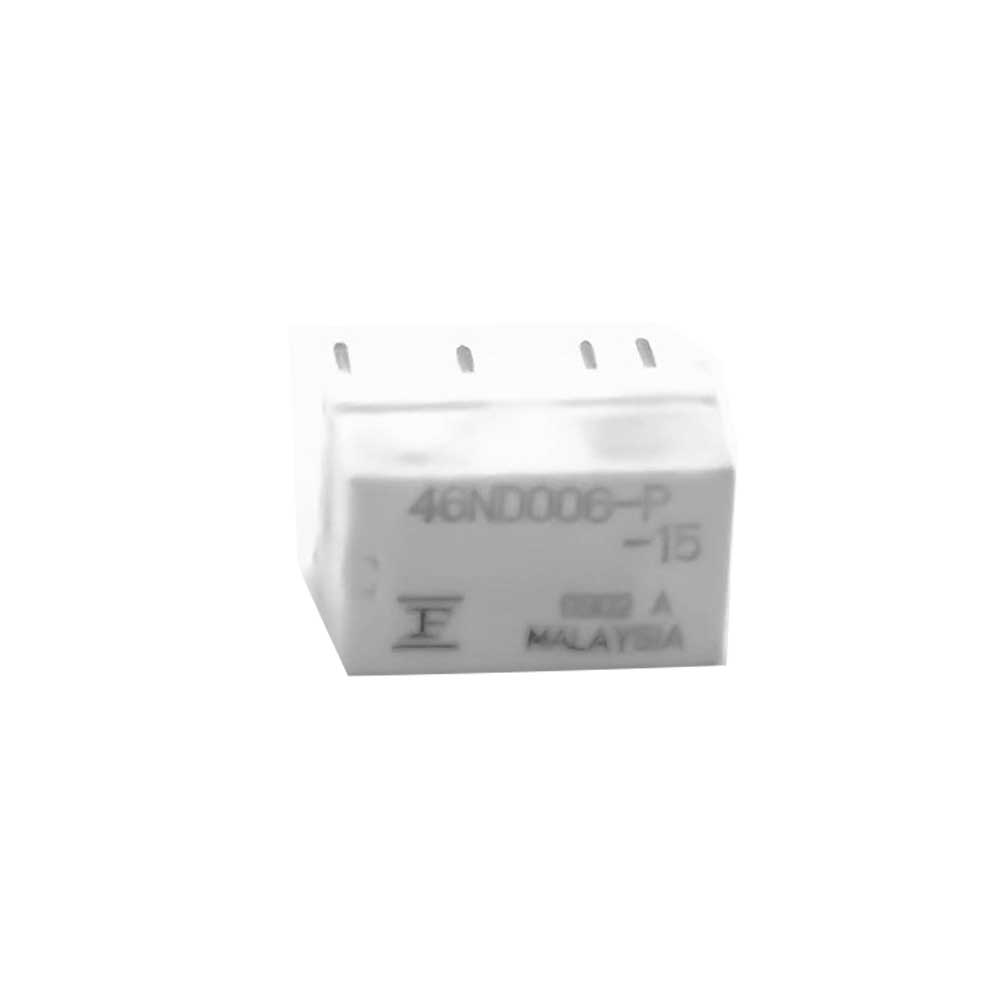

Relays are electrically operated switches. They are used to control a circuit by a separate low-power signal or to control several circuits with one signal. Fujitsu 46ND006-P-15 Mini Relay is a DPDT relay used for prototyping and telecommunication equipment.
Specification
| Series Name | FBR46 |
| Enclosure | Plastic Sealed |
| Coil Type | -15 |
| Nominal Voltage | 6V DC |
| Nominal Current | 25mA |
| Contact Material | Gold-overlay Silver-palladium |
| Dielectric Strength | 1500V AC Between Coil and Contacts, 750V AC between contacts |
| Coil Resistance | 240Ω |
| Rating | 0.5A @ 120V AC, 1A @ 30V DC |
| Country of Origin | China |
