Description

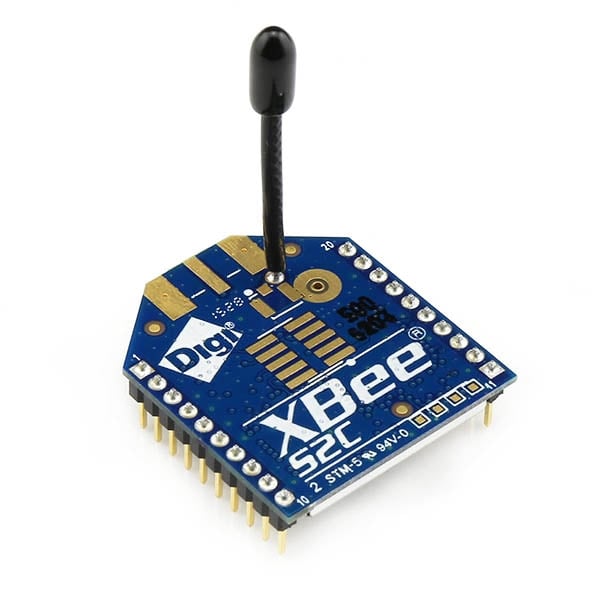

- Integrated, Wire Antenna
- Interoperable with other ZigBee-compliant devices
- Programmable versions with onboard microprocessor enable custom ZigBee application development
- Supports binding and multicasting for easy integration into a home automation platform
- Data Rate: RF 250 Kbps, Serial up to 1 Mbps
- Range: Indoor 200 ft (60 m), Outdoor (LOS) 4000 ft (1200 m)
- Transmit Power: 3.1 mW (+5 dBm)
- Channels: 16 channels
| RF Standard |
802.15.4 |
|---|---|
| Frequency (ISM Band) |
2.4GHz |
| Digital I/O |
15 |
| ADC Channels |
(4) 10-bit ADC inputs |
| Data Rate |
RF 250 Kbps, Serial up to 1 Mbps |
| RATED INDOOR/URBAN RANGE |
200 ft (60 m) |
| RATED OUTDOOR/RF LINE-OF-SIGHT RANGE |
4000 ft (1200 m) |
| Transmit Power |
3.1mW (+5 dBm) |
| Channels |
16 |
| Encryption |
128-bit AES |
| Input Supply Voltage (VDC) |
2.1 ~ 3.6 |
| TRANSMIT CURRENT |
33 mA |
| RECEIVE CURRENT |
28 mA |
| Communication |
CMOS UART, SPI |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 7 × 4 × 3 cm |
