Description

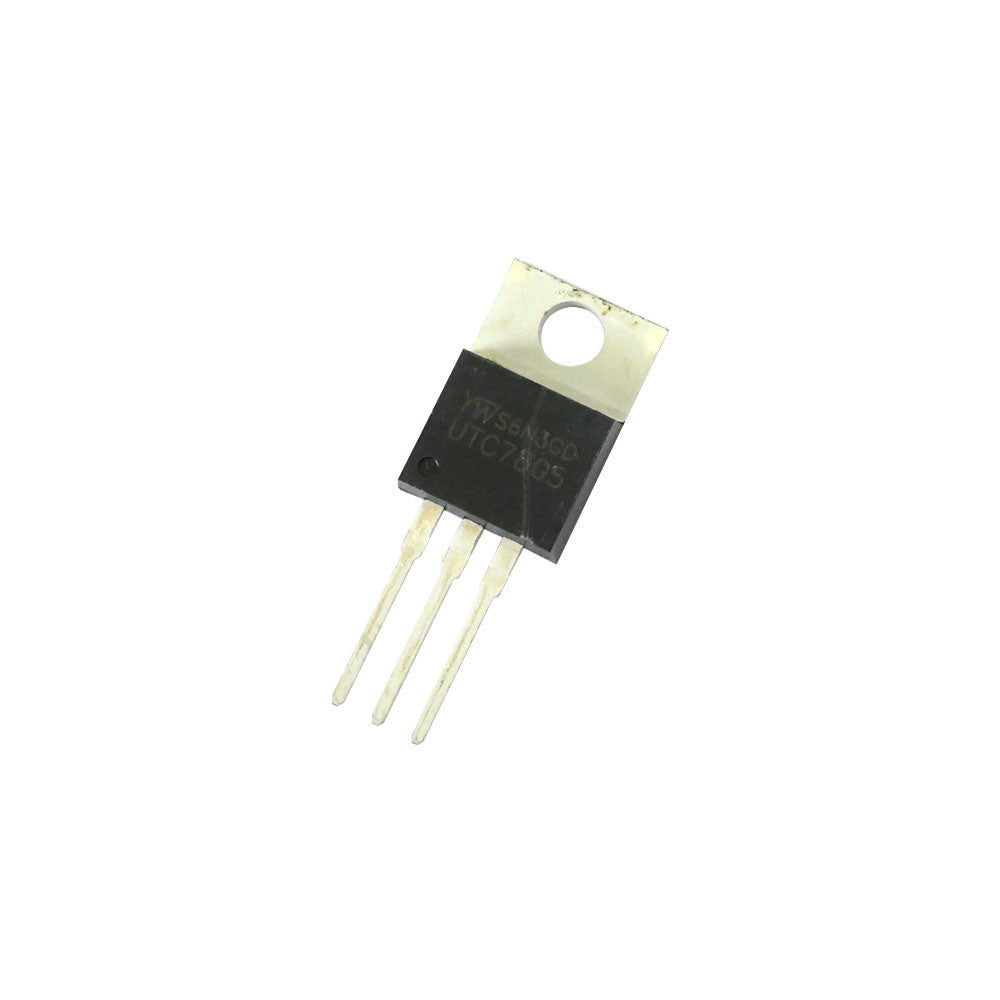

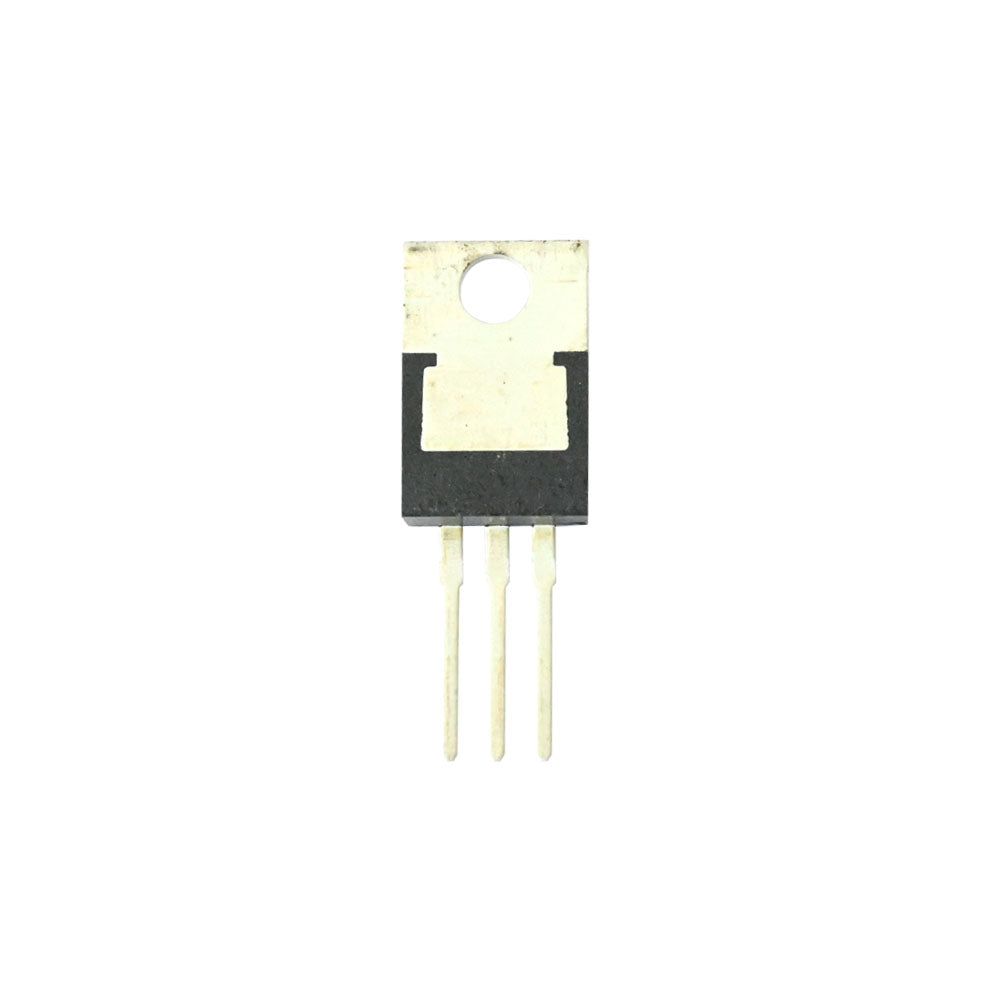

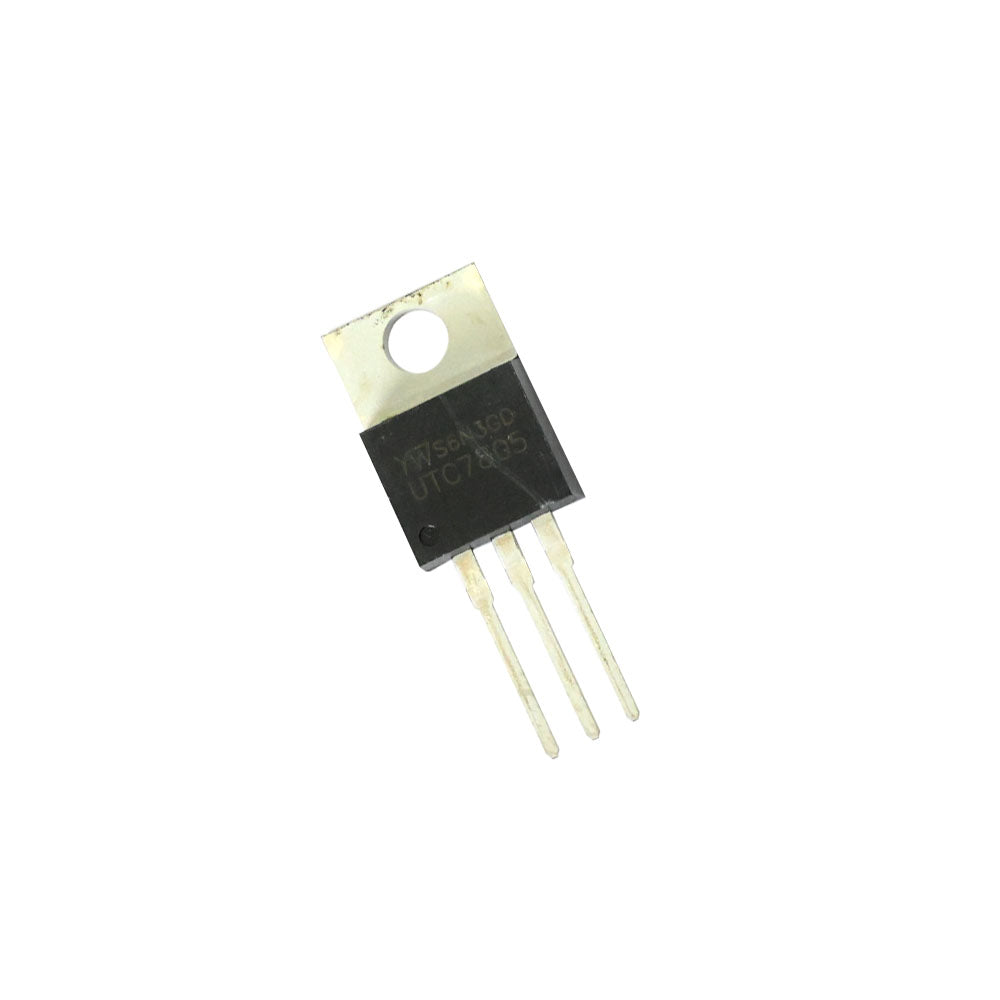

It is Youwang 1A UTC7805 TO-220 Package Positive Voltage Regulator. It's a three-terminal positive regulator and with several fixed output voltage, making it useful in a wide range of application. It has an internal current limiting, thermal shutdown and a safe area compensation. It can deliver maximum output current of 1A. Although it is designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Features:
- Output Current in Excess of 1.0 A
- Thermal Overload Protection
- Short Circuit Protection
- Output transistor SOA protection
Specifications:
| Model | UTC7805 |
| Brand | Youwang |
| Type | Voltage Regulator |
| Package | TO-220 |
| O/P Voltage | 5V |
| Current | 1A |
| Mounting Type | Through Hole |
| Dropout Voltage | 2V |
| Country of Origin | China |
