Description

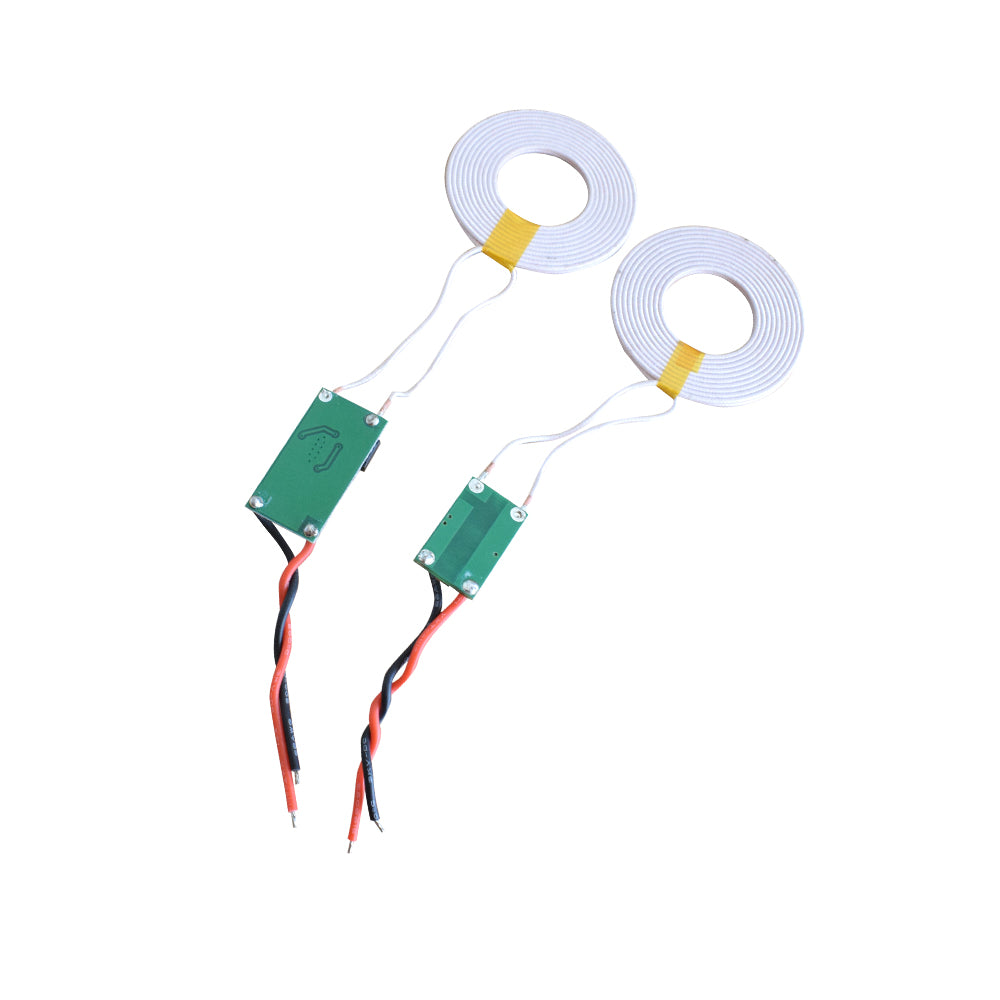

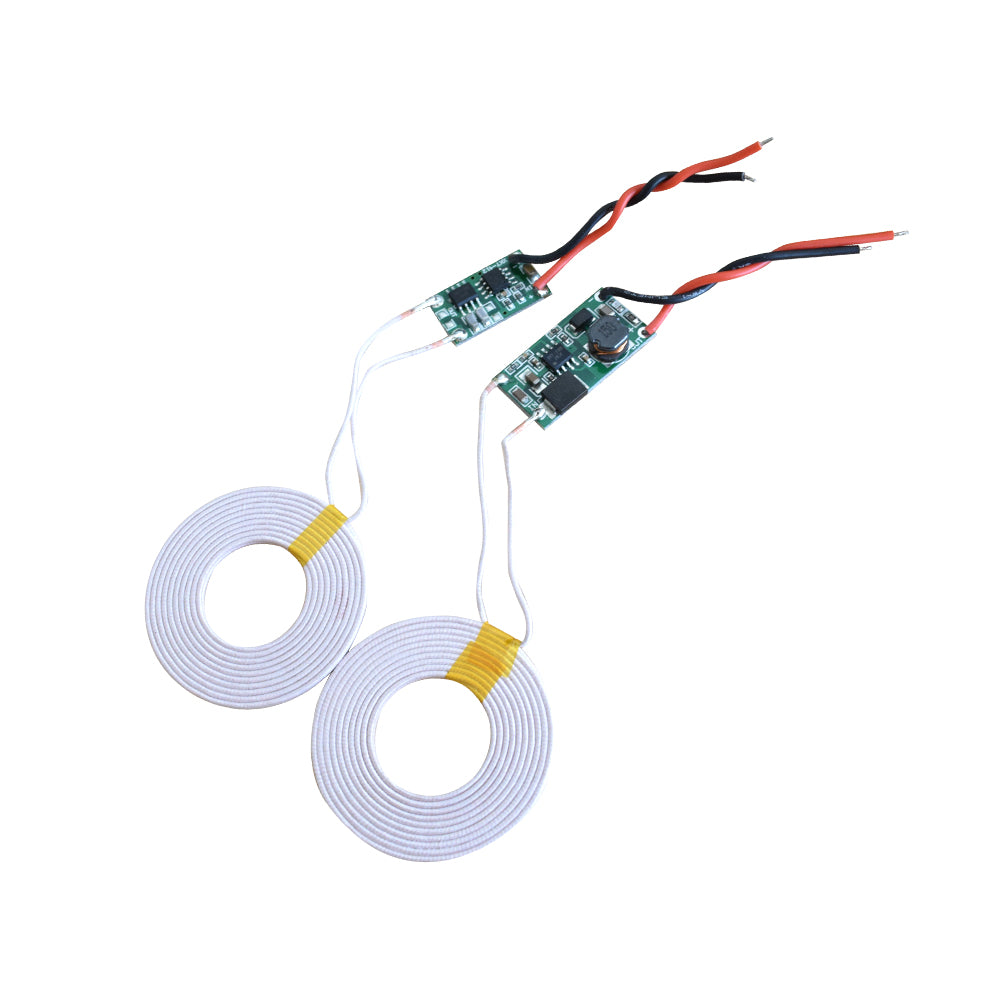

Its a wireless Charger module which is used to provide 5 to 12V, This module has an IC XKT-412 The Wireless Power Transfer and Charging Module can be used in electronic equipment in Common use for close wireless charging or power supply. Consist of a Transmitter & Receiver and coil, it could serve as a replacement for the Wireless Power Supply with stable 5V output Voltage and maximum 600mA output current. It has another IC too which has 8 Pins XKT-335. It has 5 SMD cap and 3 Resistor. It has a Coil and the diameter of the Coil is 43mm. It has a transmitter module too which is used to transmit the power this module has an inductor IC and the transmitter coil diameter is 43mm.
Features:
- It has two IC
- Its a wireless charger module
- It has 43mm Receiver Coil/ Transmitter Coil
- Load Current : 90mA
- Output current : 5V / 500mA
- Distance transceiver : 1 ~ 20mm
- Operating voltage : 5V ~ 12V
Specification
| Model | XKT-412 |
| Type | Wireless Power Supply Module |
| IC | 2 8SOP |
| Coil's Diameter | 43mm |
| Transmitter Module Dimensions | 30mmx15mmx7mm |
| Operating Voltage | 5-12V |
| Output current | 5V/200mA |
| Module Dimensions | 22mmx13.5mmx3mm |
| Country of Origin | China |
