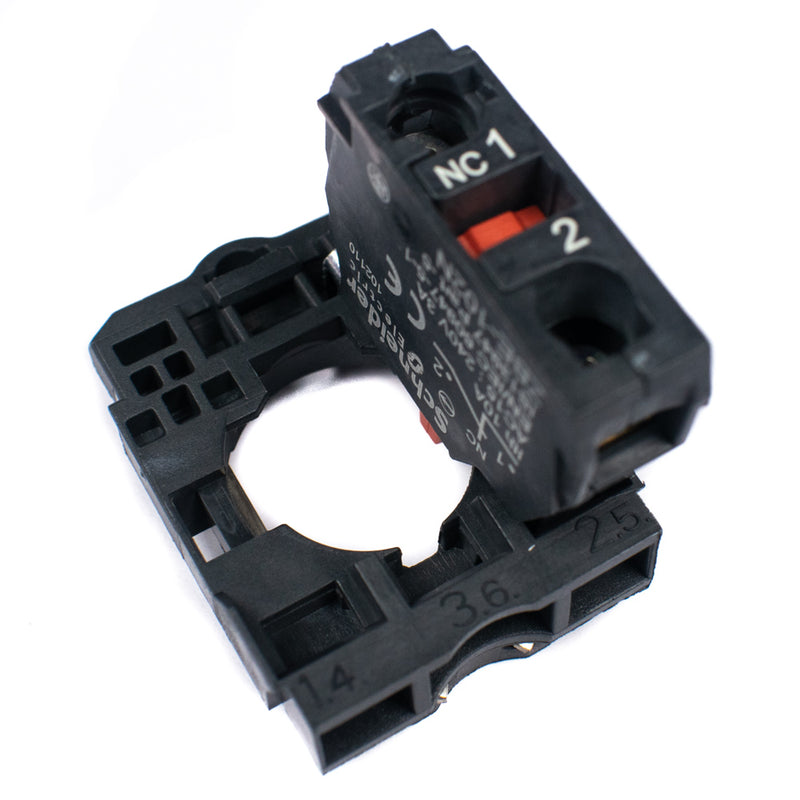

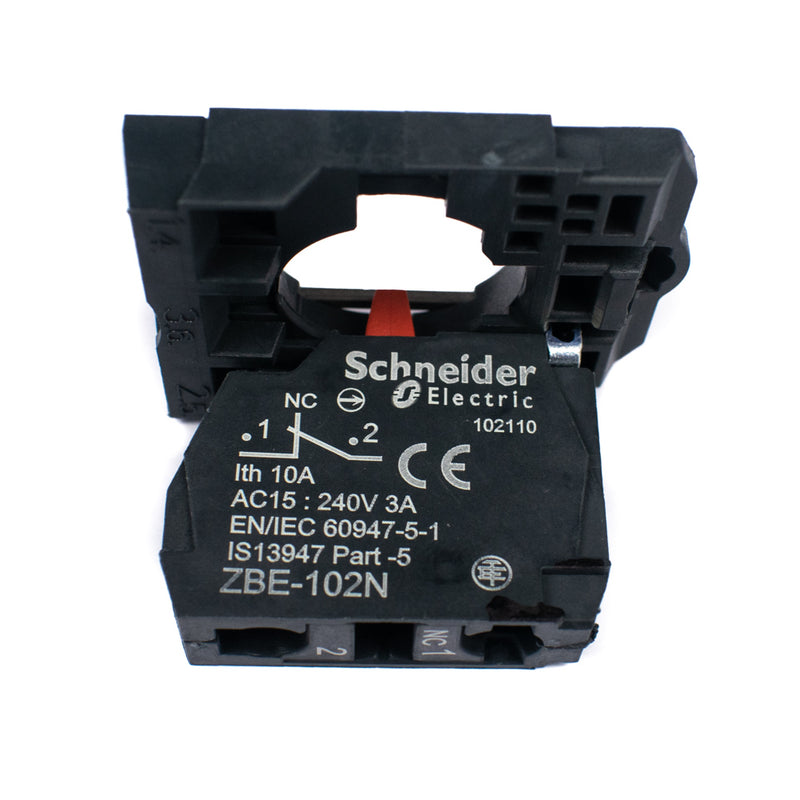

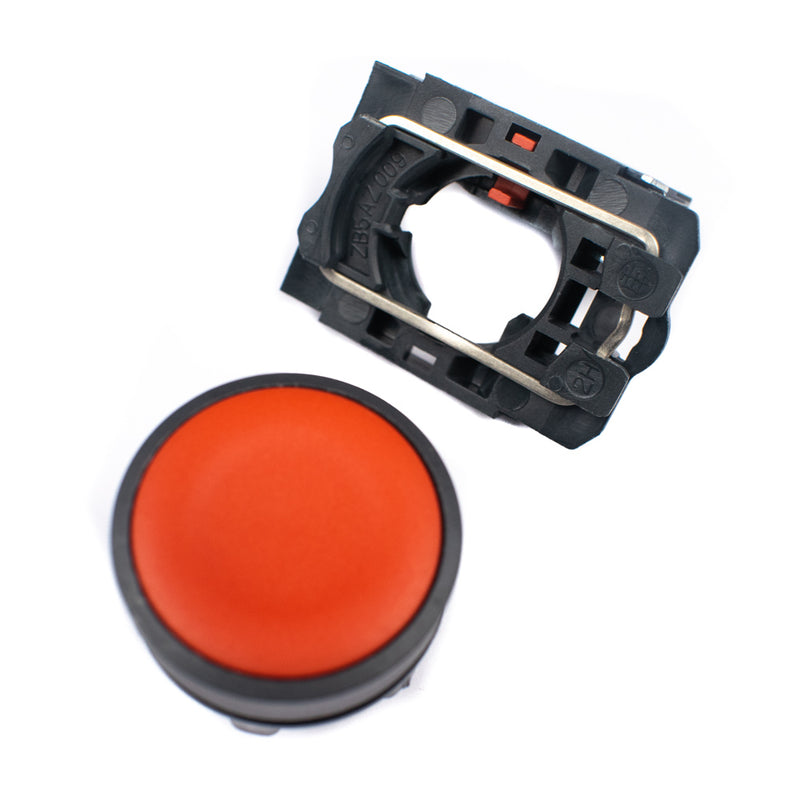

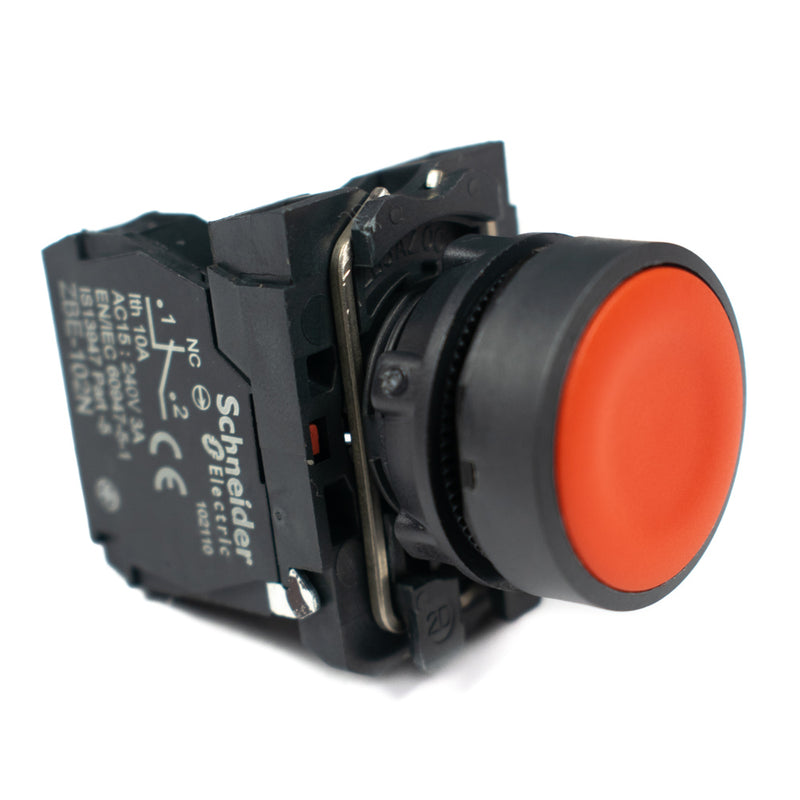

XB5AA42N Schneider Push Button Spring Return 1 NC Red

Save 6%
Sold By: HatchnHackSKU: D04-12

Price:
Sale price₹ 120.00 Regular price₹ 127.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

Harmony XB5 modular green push-button operates with a spring return/impulse mechanism and uses screw clamp terminals. This push-button provides simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance with clear colours and markings, minimizing errors during initial wiring and later maintenance operations. It is IP66 impact resistant, dust resistant, water-resistant and vibration resistant making it ideal for operation in harsh environments.

Specifications
Model XB5AA42N
Brand Schneider
Product Type Push Button
Short Name XB5
Contact Block Rating 240V 3A
Bezel Material Plastic (Dark Grey)
Head Type Standard
Fixing Collar Material Plastic
Mounting Diameter 22mm
Shape of Signaling Unit Head Round
Operator Type Spring Return
Operator Profile Red Flush
Contact Type 1 NC
Contact Operation Slow Break
Size 52x30x42mm
Country of Origin China
