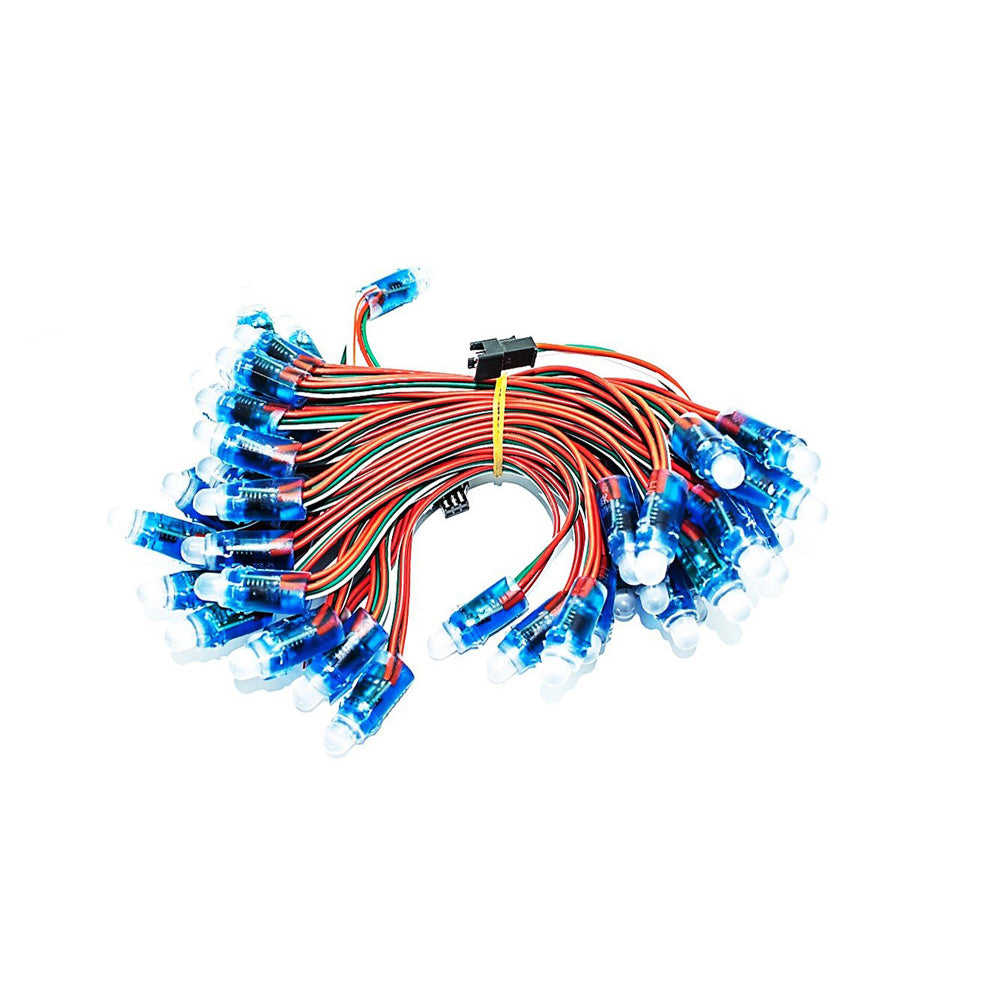

12mm WS2811 2811 IC RGB Wire cable Led Module String DC 5V input IP68 waterproof Full-color RGB Addressable Digital LED Pixel Light. WS2811 led pixel module is 12mm diameter, DC5V power, strip of 50.
RGB pixels are digitally controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded into a 'dot' of silicone. The dots are waterproof and rugged. The pixels use 8mm diffused RGB LEDs, with a 120-degree beamwidth.
- Full-color Pixels are digitally controllable lights you can set to any color, or animate
- Each RGB LED and controller chip is molded into a 'dot' of silicone.
- The dots are waterproof and rugged.
- There are four flanges molded in so that you can 'push' them
- into a 12mm drill hole in any material up to 1.5mm/0.06" thick.
- They are typically used to make outdoor signs. Compared to our other 20mm LED dots
- these are diffused 8mm LEDs so they are not as bright but their color mix a little nicer.
- The pixels are connected by a 3-conductor cable. Red is +5V, white is Ground, green is Data and Data is shifted down from one pixel to the next so that you can easily
- cut the strand or attach more onto the end.
- Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller.
|RED Wire||Vin 5V DV|
|No of LED||50 Pcs|
