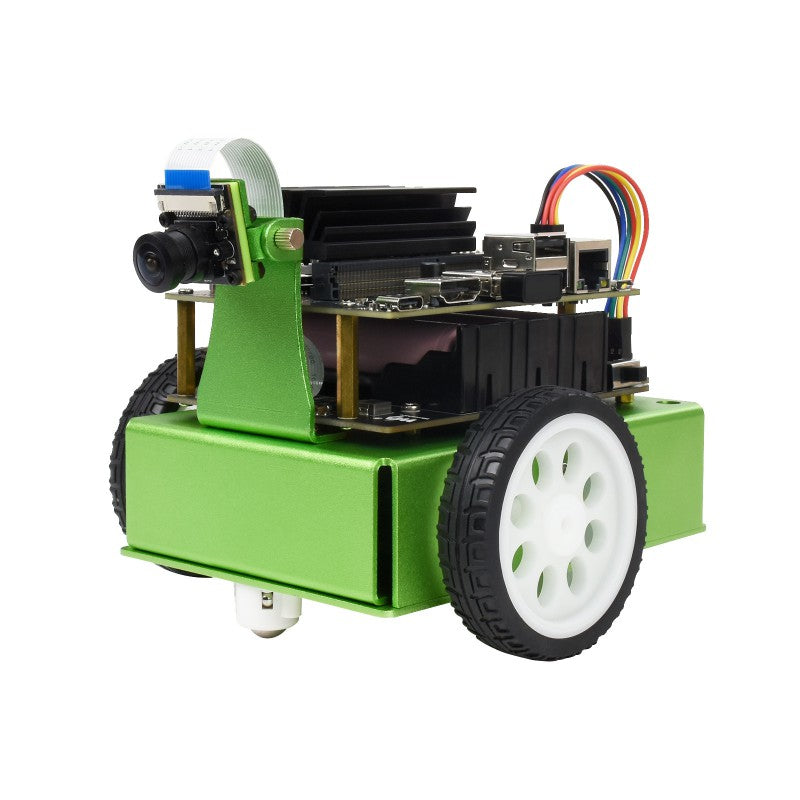

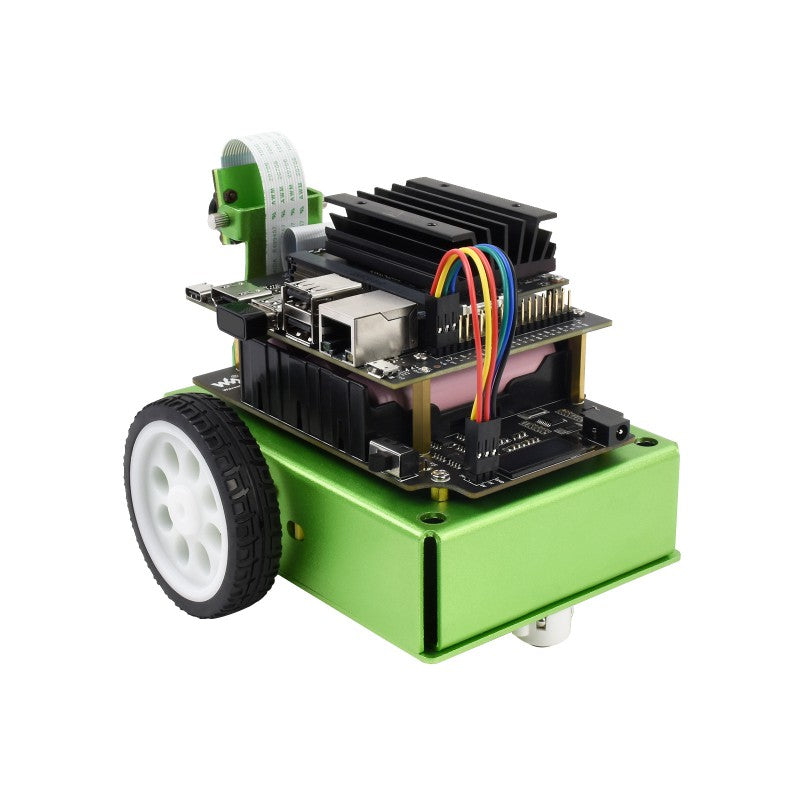

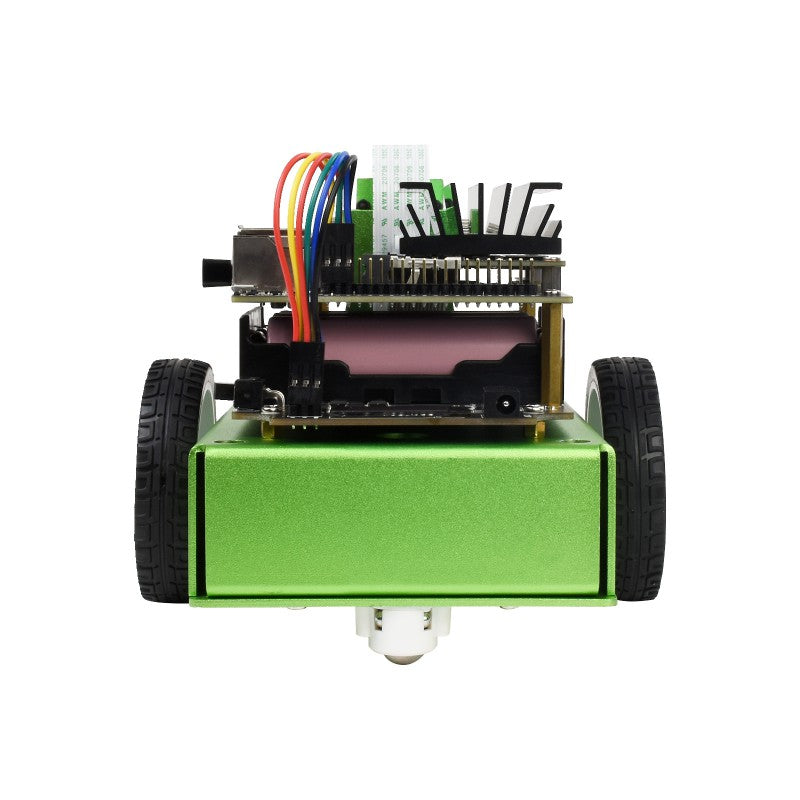

- Waveshare JetBot AI Robot Developer Kit
- Offers 8MP 160° FOV camera
- Comes with a Sony IMX219 sensor
- Provides a resolution of 3280 x 2464 pixel
- No messy wiring, simple assembly
- Runs on 18650 batteries (Not Included)
The Waveshare JetBot AI Robot Developer Kit is a small, powerful computer, which delivers 472 GFLOPS for running modern Al algorithms fast, with a quad-core Cortex-A57 CPU and a 128-core Maxwell GPU.
lt is widely used for deep learning, computer vision, GPU computing, multimedia processing, and much more. Many popular Al frameworks are supported, such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, etc.
Specifications
- Controller: Jetson Nano 4GB (optional)
- OS: Ubuntu 18.04 LTS
- Language: Python
- Camera: 8MP HD resolution
- FOV: 160°
- Pixels: 128 x 32
- Wireless: 2.4 GHz / 5.8 GHz dual-band WiFi
- Teleoperation: Gamepad, webpage
- Communication: WiFi
- Protection: overcharge/discharge protection, over current protection, short circuit protection, reverse proof
- Driving Type: Differential 2WD
- Power Supply: 12.6 V, 18650 battery x 3 (connected in series)
- Motor: TT motor | Reduction rate 1:48 | Idle speed 240 RPM
- Chassis: Aluminum alloy chassis
- Program Library: JetBot, ROS
- Weight: 1.135 kg
What's Included:
- 1x Metal box
- 1x Camera holder
- 1x Acrylic camera spacer
- 1x IMX219-160 Camera
- 1x USB WiFi
- 1x JetBot expansion board
- 2x Motor
- 2x Wheel
- 2x Caster
- 1x Power adapter EU head
- 1x 12.6 V battery charger
- 1x Wireless gamepad
- 2x Screwdriver
- 1x 6pin 9 cm cable
- 1x Screws pack
- 1x 4010 cooling fan
- 1x Micro SD card reader
- 3x 18650 3.7V Li-Ion Batteries
- Jetson Nano 4GB Developer Kit is Option
The Robot Operating System (ROS) is a flexible framework for writing robot software. It is a collection of tools, libraries, and conventions that aim to simplify the task of creating complex and robust robot behavior across a wide variety of robotic platforms. The ROS is one of the most popular robot software frameworks in the world.
8MP 160° FOV Camera - Sony IMX219 Sensor, 3280×2464 Resolution
Facial Recognition, Object Classify, Real Time Monitoring
