Description

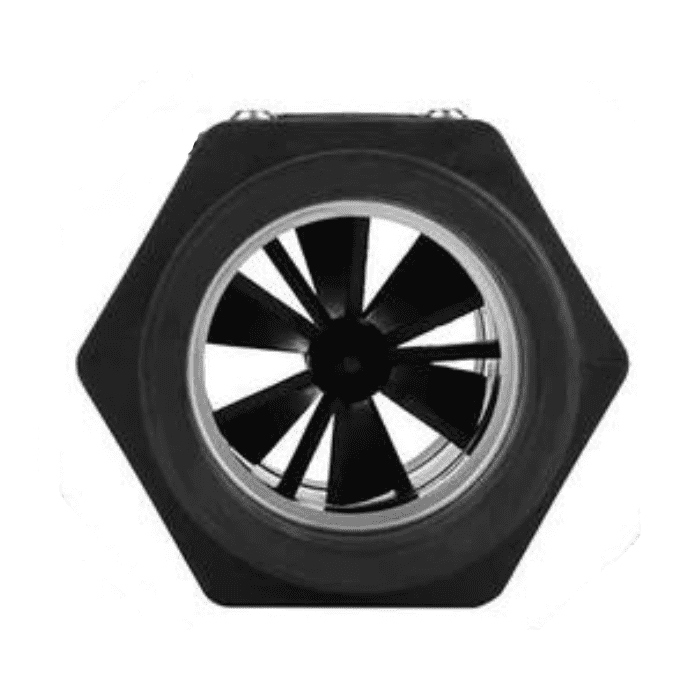

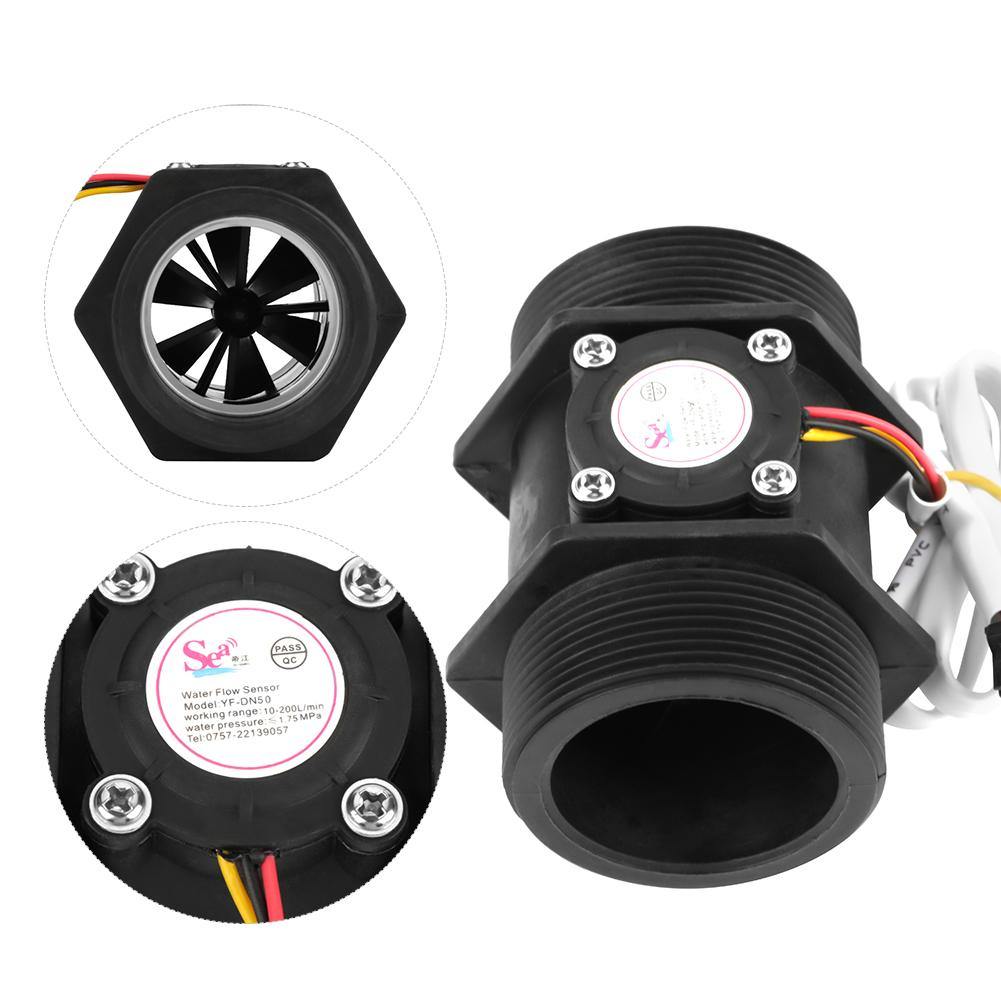

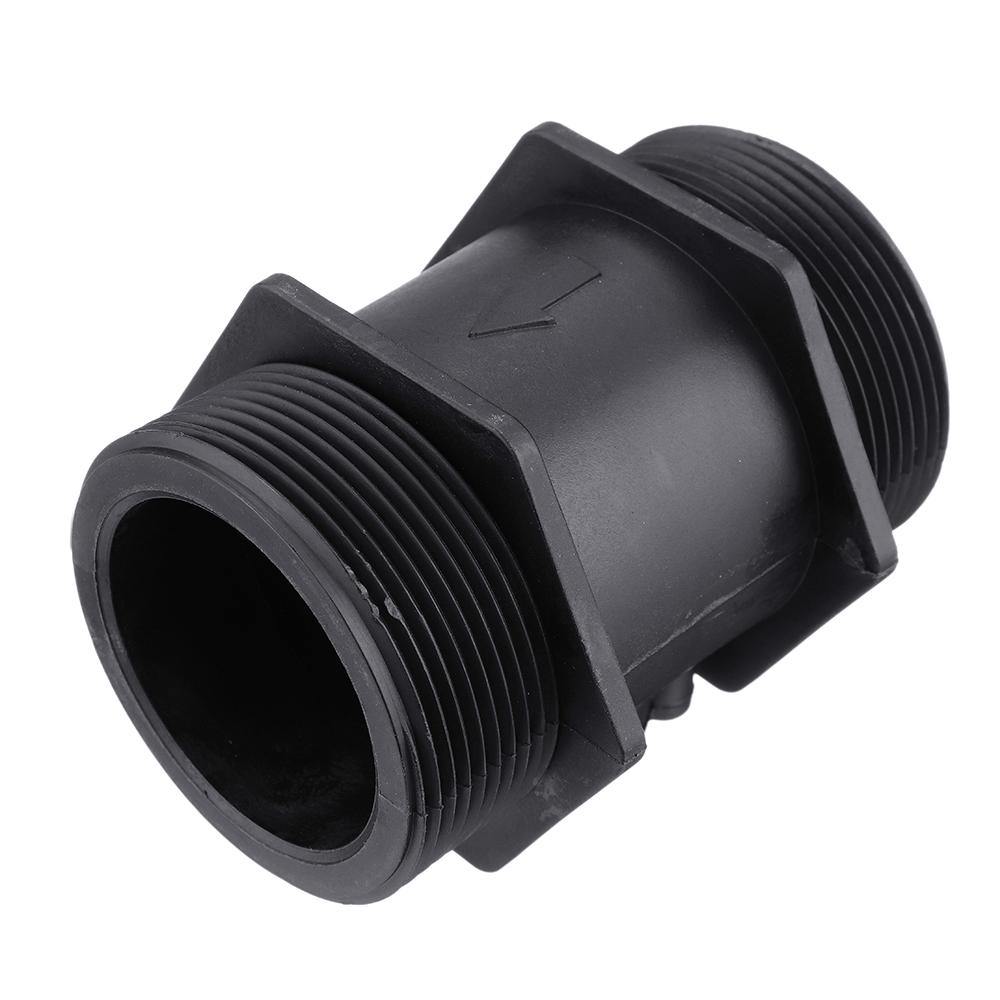

2 Inch Water Flow Sensor YF - DN50
The YF-DN50 water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device. The sensor is commonly used in applications such as irrigation systems, water treatment plants, and industrial process control. It is often preferred over other types of flow sensors because it is easy to install and has a low cost.
The YF-DN50 sensor is designed to be installed in a pipe with a diameter of 50mm or 1.97 inches. The YF-DN50 water flow sensor is a large 2 inch diameter Water Flow meter Sensor that can be used to measure flow rate from 10 - 200 Liter/min
Features:
- Flow Range: 10-200 liters per minute (L/min)
- Operating Voltage: DC 5-18V
- Output: Square wave pulse signal
- Sensor Type: Hall effect
- Maximum Pressure: 1.75 MPa
- Operating Temperature: Up to 80°C
- Cable Length: 480mm
- Dimensions: 92mm x 68mm
Applications:
- Irrigation Systems: Used to monitor and control water flow in agricultural and landscaping irrigation systems.
- Water Treatment Plants: Helps in measuring and managing water flow in treatment processes.
- Industrial Process Control: Utilized in various industrial applications to ensure accurate water flow measurement and control.
- Smart Home Automation: Integrated into smart home systems for monitoring water usage.
- Vending Machines: Used to measure the flow of water in beverage vending machines.
- Water Dispensers: Ensures accurate dispensing of water in commercial and residential water dispensers.
- Tankless Water Heaters: Monitors water flow to regulate heating in tankless water heaters
Package Includes:
- 1 x Water Flow Sensor YF - DN50
Specifications:
| Sensor Type | Waterflow Sensor |
| Model | YF - DN50 Waterflow Sensor |
| Flow range | 10-200 Liter per min |
| Hall Effect | Yes |
| Maximum current | 15 mA (5 volt DC) |
| Dimensions | 5 x 4 x 3 cms |
| Weight | 50 grams |
