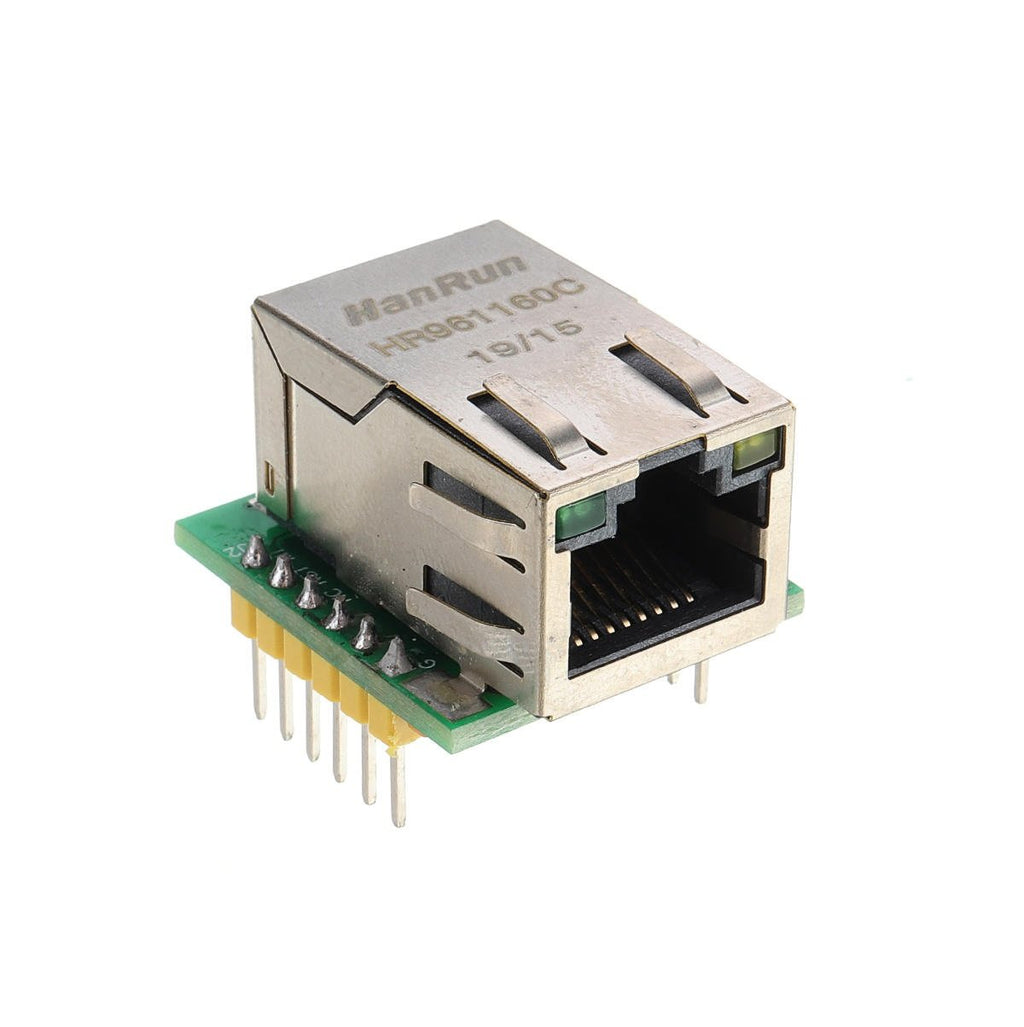

Description
- 80MHz high-speed SPI interface
- Built-in hardware TCPIP protocol stack
- Support up to 8 Socket connections
- Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
- Support power-down wake up
- Support high-speed serial peripheral interface (SPI mode 0~3)
- Internal 32K byte send and receive buffer
| Power Supply |
3.3V External Power Supply, @Current < 200 mA |
|---|---|
| Control Interface |
The TTL Level, 3.3V SPI Interface |
| PCB Size |
23 x 25 mm |
| Length (mm): |
25 |
| Width (mm): |
22 |
| Height (mm): |
20 |
| Weight (g): |
17 |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 3 × 3 × 3 cm |
