Description

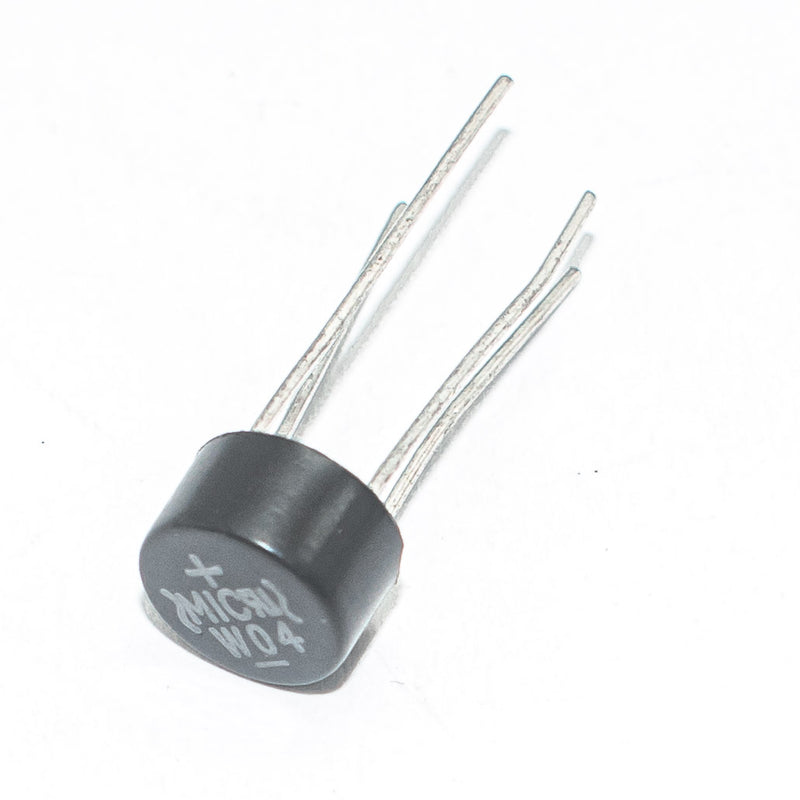

The W04 Rectifier is a Single Phase Glass Passivated Silicon Bridge Rectifier with a voltage range of 50 to 400 volts and a current rating of 1 amp.
Features:
-
High reverse voltage to 400V
-
Surge overload ratings to 50 amperes peak
-
Good for printed circuit board assembly
Specifications:
| Max. Recurrent Peak Reverse Voltage | 400V |
| Maximum RMS Voltage | 280V |
| Max. DC Blocking Voltage | 400V |
| Max. Instantaneous Forward Voltage | 1V |
| Max. Average Rectified Current | 1.5a |
| Peak Forward Surge Current | 40A |
| Max. DC Reverse Current | 10µA at 25°C |
| Operating Temperature | -55°C to 125°C |
| Country of Origin | China |
