Description
Its VSSA210-E3/61T 2A 100V Schottky Diode Rectifier, A Schottky diode rectifier is a type of diode that is widely used in rectification circuits due to its unique characteristics. It is named after the German physicist Walter H. Schottky, who first described the metal-semiconductor junction that characterizes this diode. The Schottky diode is formed by the junction between a metal (typically aluminum or platinum) and a semiconductor material (such as silicon or gallium arsenide). This junction has lower forward voltage drop compared to the conventional PN junction diode, resulting in reduced power losses during conduction. its used to Rectify the Signal means its used to convert AC to DC its used in SMPS, UPS, Inverter and many devices like LED Driver etc.
Features:
- Its Mounting Style is SMD
- Its Forward Current is 2A
- Its Voltage is 100A
- Its Forward Voltage is 610 mV
- Its Reverse Current is 3.5 uA
- Its forward Surge Current is 60A
| Specifications | |
|---|---|
| Brand | Vishay |

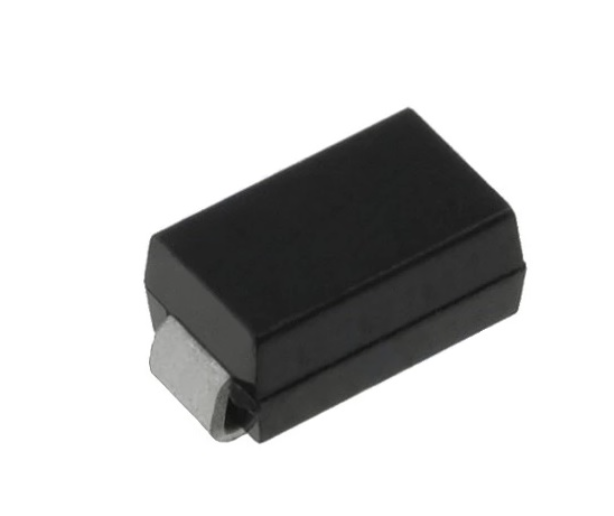

| Package | SMA DO-214AC |
| Part Number | VSSA210-E3/61T |
| Forward Current | 2A |
| Forward Voltage | 610mW |
| Mounting Style | SMD |
| Operating temperature | -40 to 150 Degree Centigrade |
| Type | Schottky Diode Rectifier |
