Description

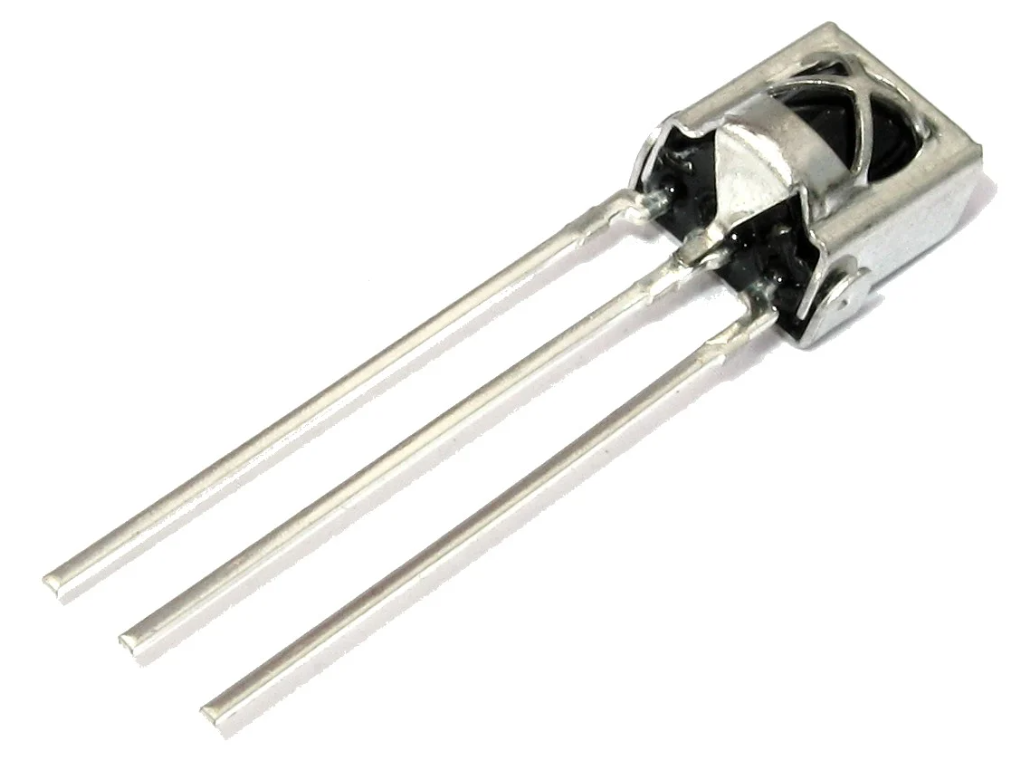

This is the VS1838B Remote Control Receiver with IR Receiving Head. The 1838B is a miniaturised infrared receiver designed for remote control and other applications that require better ambient light rejection. A single lead frame houses the independent PIN diode and preamplifier IC. A unique IR filter is included in the epoxy box. This module performs well even in disturbed ambient light situations and protects against uncontrolled output pulses.
Features:
- it is used in Optical switch‚ Light detecting portion of a remote control‚ AV instruments such as Audio‚TV‚VCR‚CD‚MD‚DVD‚etc.‚ Home appliances such as Air-conditioners ‚ Fan‚ CATV set-top boxes‚ Multi-media equipment etc.
-
Photodetector and preamplifier in one package
-
Internal filter for PCM frequency
-
Inner shield‚ good anti-interference ability
| Specifications | |
|---|---|
| Model | VS1838B |
| Operating Voltage | 2.5 ~ 5.5V |
| Range | 38 KHz |
