Description

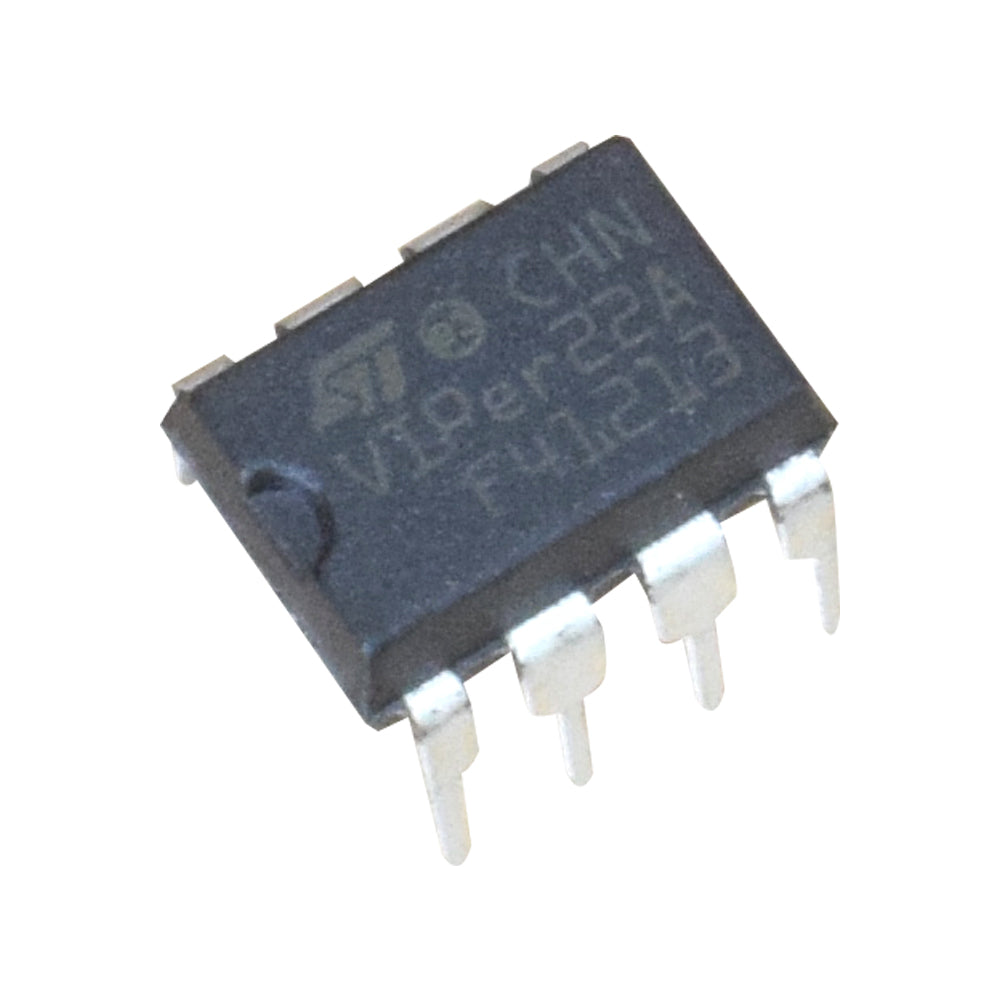

The VIPer22A is a DIP-8 Package LOW POWER OFF LINE SMPS PRIMARY SWITCHER. The VIPer22A integrates a dedicated current mode PWM controller and a high-voltage Power MOSFET on the same silicon chip. Offline power supplies for battery charger adapters, standby power supplies for TVs or monitors, auxiliary supplies for motor control, and other applications are standard. More Detail Datasheet.
Features
- FIXED 60 KHZ SWITCHING FREQUENCY
- 9V TO 38V WIDE-RANGE VDD VOLTAGE
- CURRENT MODE CONTROL
- AUXILIARY UNDERVOLTAGE LOCKOUT WITH HYSTERESIS
- HIGH VOLTAGE START-UP CURRENT SOURCE
- OVERTEMPERATURE, OVERCURRENT AND
- OVERVOLTAGE PROTECTION WITH AUTO RESTART
Specifications
| Model |
VIPer22A |
| Brand | STMicroelectronics |
| Supply Voltage | 0-50V |
| Pins | 8 |
| Package Type | Dual Inline Package (DIP) |
| Feedback Current | 3mA |
| Operating Temperature |
-40 to 150°C
|
| Country of Origin | China |
