Description

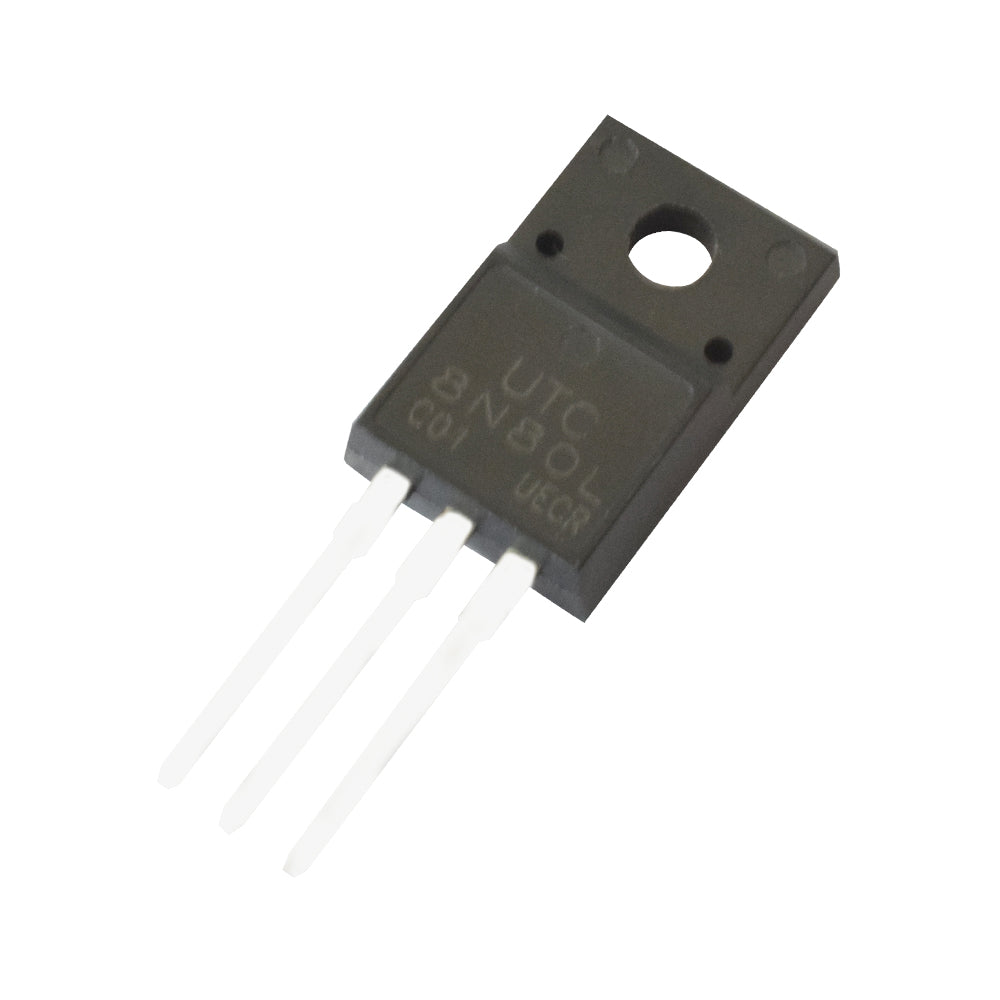

The UTC8N80 is an N-channel mode power MOSFET that offers customers DMOS and planar stripe technology by utilising UTC's cutting-edge technology. This innovation permits a minimum enhanced switching performance with low on-state resistance. It can also tolerate large energy pulses in the avalanche and commutation modes.
Typically, a high-efficiency switch mode power supply uses the UTC 8N80.
Features:
- RDS(ON) ≤ 1.45Ω @ VGS=10V, ID=4.0A
- Improved dv/dt Capability
- Fast Switching Speed
- 100% Avalanche Tested
- It has a small size
- It's not too costly
- Highly efficient
Specifications:
| Model | UTC8N80L |
| Type | MOSFET |
| Package | TO-220F1,F2,F4 |
| Drain source Voltage | 800V |
| Gate source Voltage | 30V |
| Drain current | 8A |
| Total power dissipation | 62W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
