Description

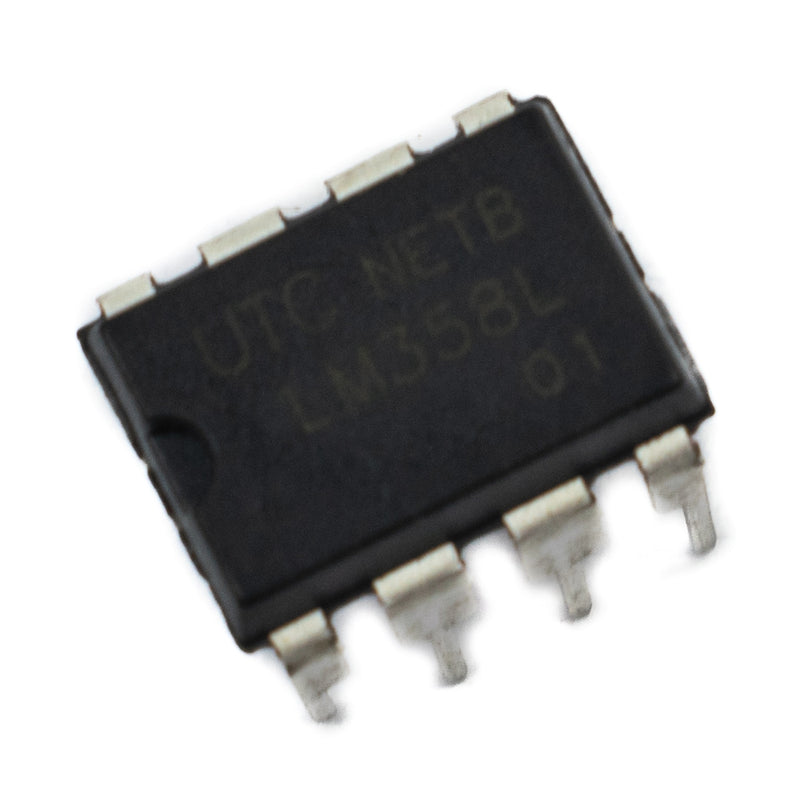

The UTC LM358 consists of two independent high gain, internally frequency compensated operational amplifier. It can be operated from a single power supply and also split power supplies.
FEATURES
- Internally frequency compensated for unity gain.
- Wide power supply range 3V - 32V.
- Input common-mode voltage range include ground.
- Large DC voltage gain.
Specifications
| Product Series | LM358 |
| Brand | Unisonic Technologies |
| Package | DIP 8 |
| Supply voltage | ±16 or 32V |
| Differential Input Voltage | 32V |
| Input Voltage | -0.3V - +32V |
| Output Short to Ground | Continuous |
| Junction Temperature | 150C |
| Country of Origin | China |
