Description

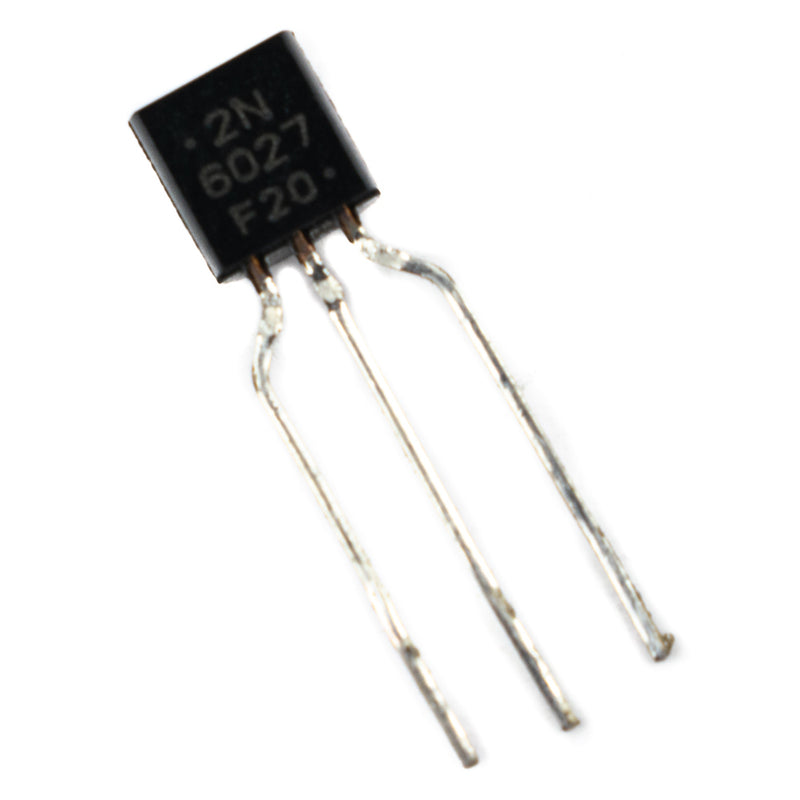

The UTC 2N6027 is a programmable unijunction transistor, it uses UTC’s advanced technology to provide customers with low forward voltage, low gate to anode leakage current, low offset voltage and high peak output voltage, etc. The UTC 2N6027 is suitable for timing, thyristor-trigger, oscillator and pulse circuits, etc
Features
- Low Forward Voltage
- Low Offset Voltage
- Low Gate to Anode Leakage Current
- High Peak Output Voltage
Specifications
| Model | 2N6027 |
| Brand | Unisonic Technologies |
| Gate to Cathode Forward Voltage | 40V |
| Gate to Cathode Reverse Voltage | 5V |
| Gate to Anode Reverse Voltage | 40V |
| Anode to Cathode Voltage | 40V |
| Offset Voltage | 1.6V |
| DC Anode Forward Current | 150mA |
| DC Gate Current | 50mA |
| Non-Repetitive Peak Forward Current | 5A |
| Operating Temperature | -50°~100°C |
| Power dissipation | 300mW |
| Country of Origin | China |
