Description

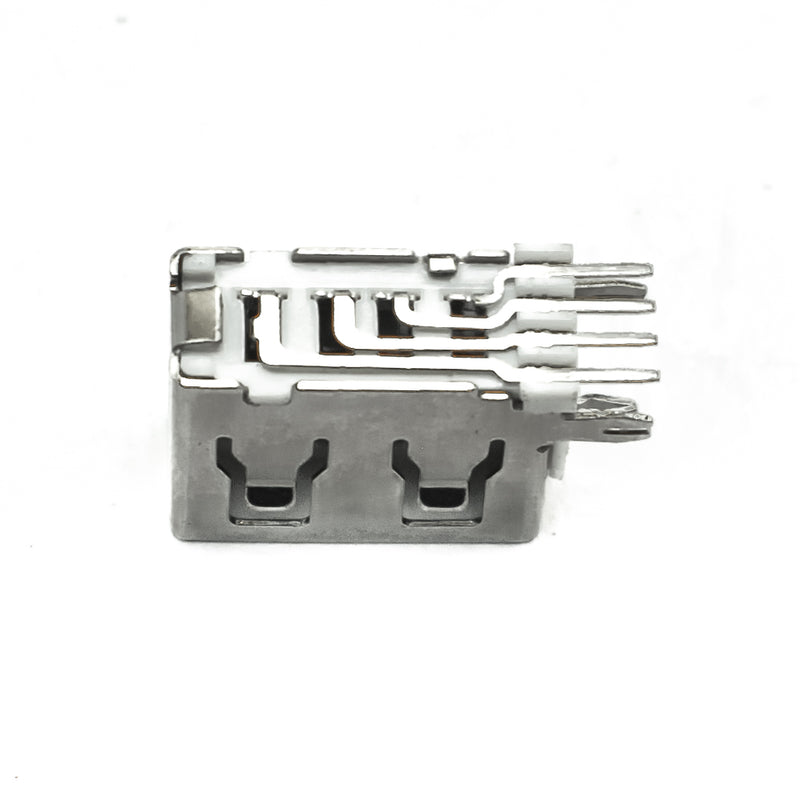

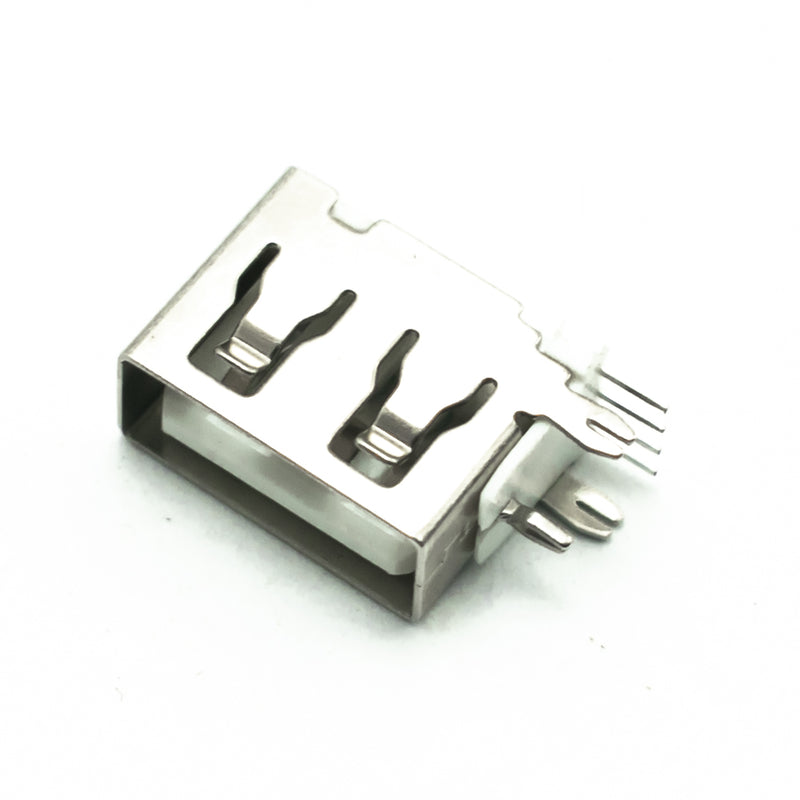

USB Type-A Vertical Female Connector Short Body can be used in Commuter, printers, set-top boxes, power banks, etc. It follows the guidelines set forth by the Universal Serial Bus Implementers Forum.
Specification
| Connector | USB Type-A |
| Connector Type | USB 2.0 |
| Variant | Female |
| Mounting Type | Through Hole |
| Voltage Rating | 150V |
| Current Rating | 1.5A |
| Operating Temperature | -20°C to 85°C |
| Size | 13.1x10x5.7mm |
