Description

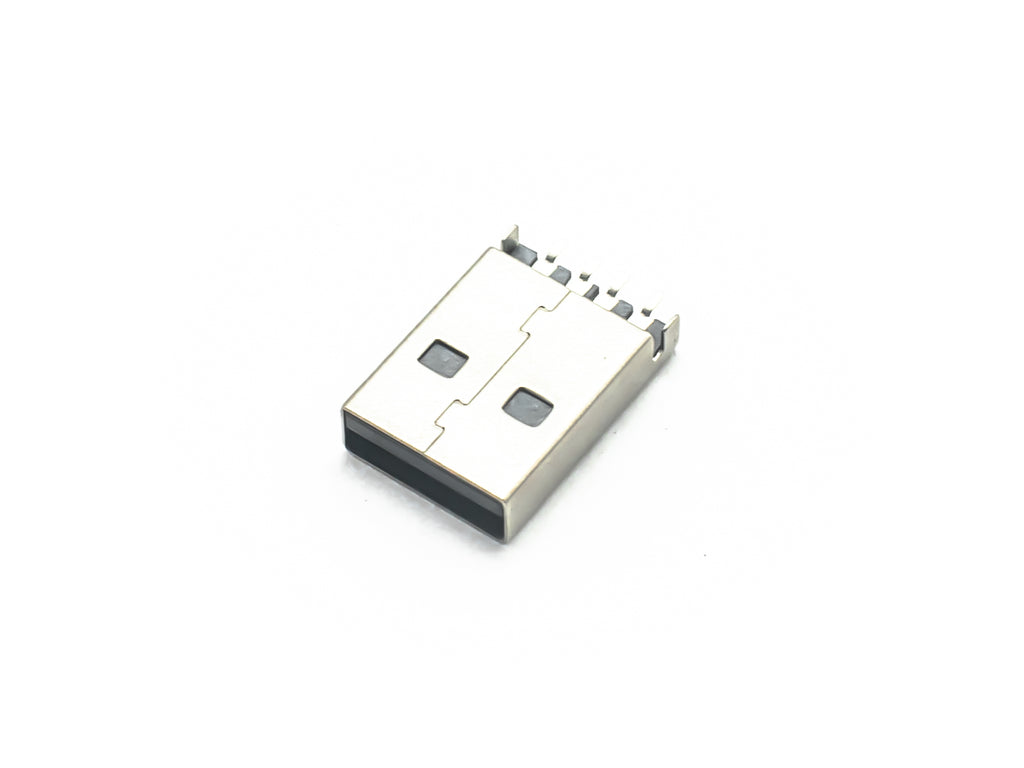

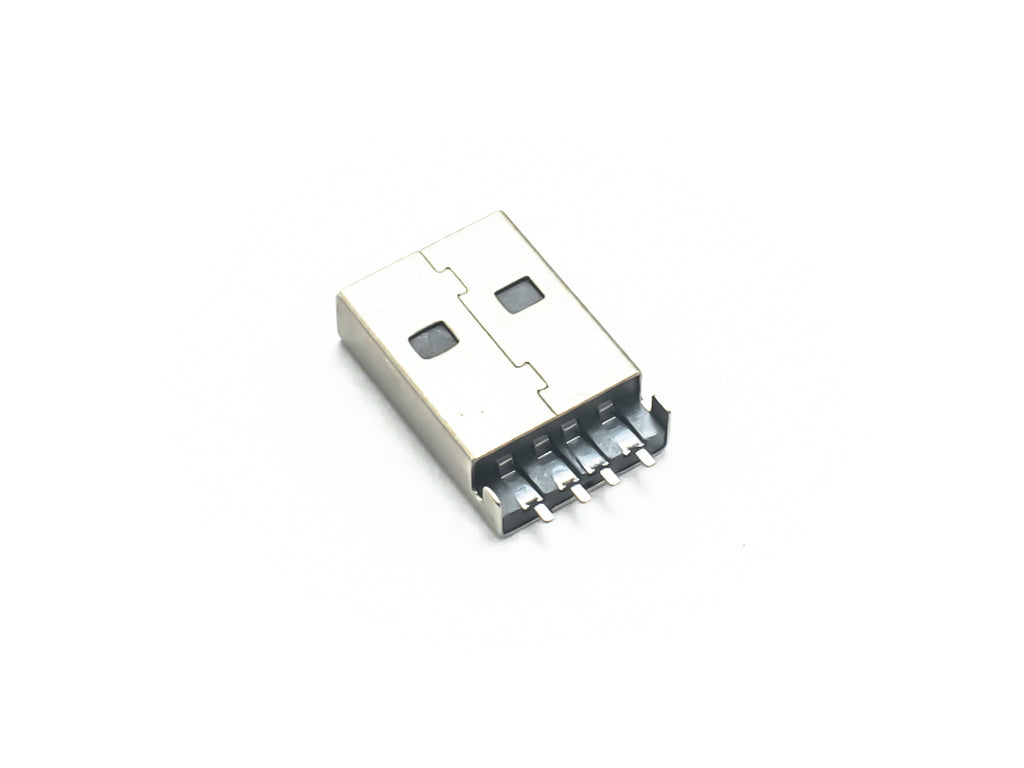

This is a USB Type-A Male Connector SMD. It follows the guidelines set forth by the Universal Serial Bus Implementers Forum. This connector can be used for making very small USB dongle devices that plug directly into a computer USB port or through a USB A to A extension cable.
Specifications
| Connector | USB Type-A |
| Connector Type | USB 2.0 |
| Variant | Male |
| Mounting Type | SMD |
| Voltage Rating | 150V |
| Current Rating | 1.5A |
| Operating Temperature | -20°C to 85°C |
| Pitch ( Pin 1-2 & Pin 3-4) | 2.54mm |
| Pitch (Pin 2-3) | 2.0mm |
| Size | 17.75x12x4.5mm |
| Country of Origin | China |
