Description

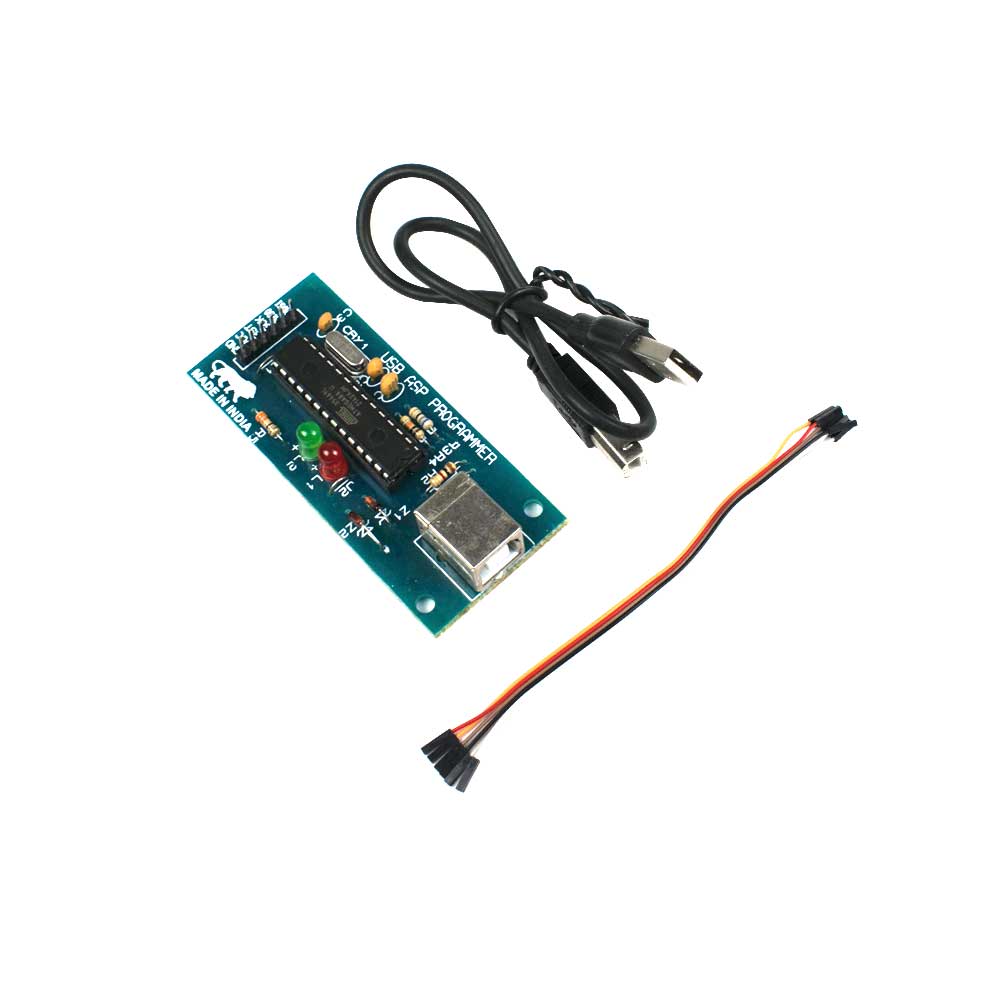

This is a USB ASP Programmer Board with 6 Pin Male Connector included with the programmer for standard ISP connections, as well as a B-type USB Connector for power and separate LEDs for power and programmer status. This USB ASP Programmer Board includes an ATMega8a and a few passive components with 6-Pin wires and a USB Cable. This enables you to read and write microcontroller EEPROM, firmware, fuse bits, and lock bits.
Features
- Used in Multiple Platform
- Low-cost USB Programmer
- No need for any special USB Controller
- Programming Speed 5kb/sec
Specification
| Model | USB ASP Programmer Board |
| Technology | ISP |
| Operating Voltage | 5V DC |
| Microcontroller | ATMEGA8A |
| Programme Interface | USB |
| Size (H*W*D) | 75mm*34mm*13mm |
| Power Source | DC |
| Included Components | ATMEGA8A IC, USB Programmer, USB Cable, 6-Pin Wire |
| Origin | Make in India |
| Country of Origin | China |
