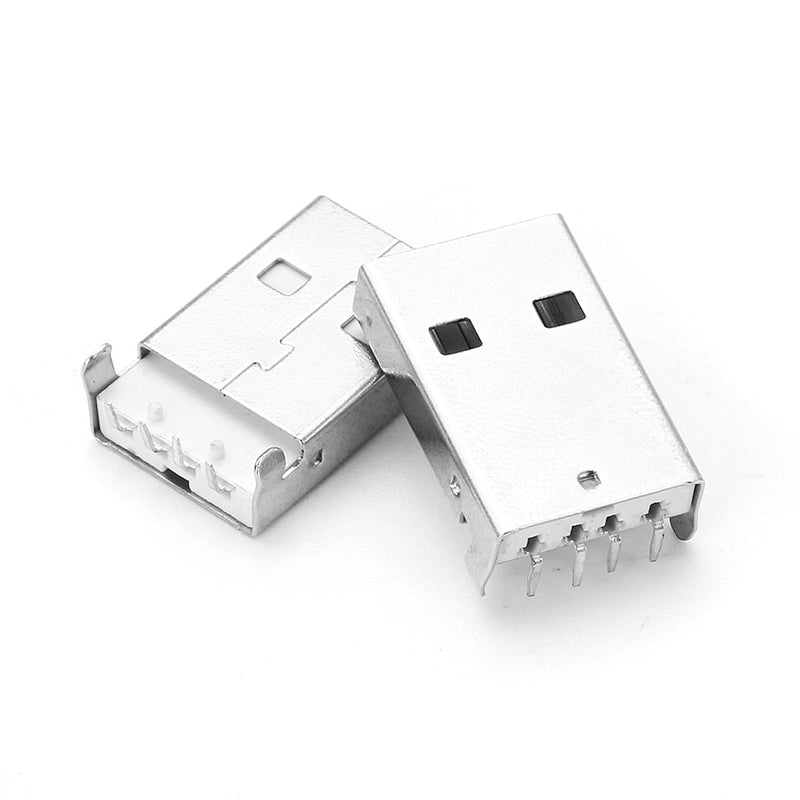

Description
- High transmission speed.
- Durable.
- Robust.
- Ideal for USB Dongle.
| Connector Type |
USB 2.0 |
|---|---|
| Connector |
USB Type A |
| Voltage Rating (V) |
250V AC |
| Current Rating (A) |
1.5 |
| Transmission Speed |
5 Gbits/s |
| Contact Material |
Copper Alloy, Selective Gold Plated |
| Insulation Material |
PBT UL 94V-0 |
| Material: |
Metal and plastic |
| Contact Resistance |
30mΩ |
| Insulation Resistance (MΩ) |
1000 |
| Operating Temperature (°C): |
-40 to 60 |
| Durability |
1500 Cycles |
| Insertion Force (N) |
35 |
| Extraction Force (N) |
10 |
| Length (mm): |
20 |
| Width (mm): |
12 |
| Height (mm): |
6 |
| Weight (g): |
1 (Each) |
| Shipping Weight | 0.062 kg |
| Shipping Dimensions | 8 × 8 × 1 cm |
