Description

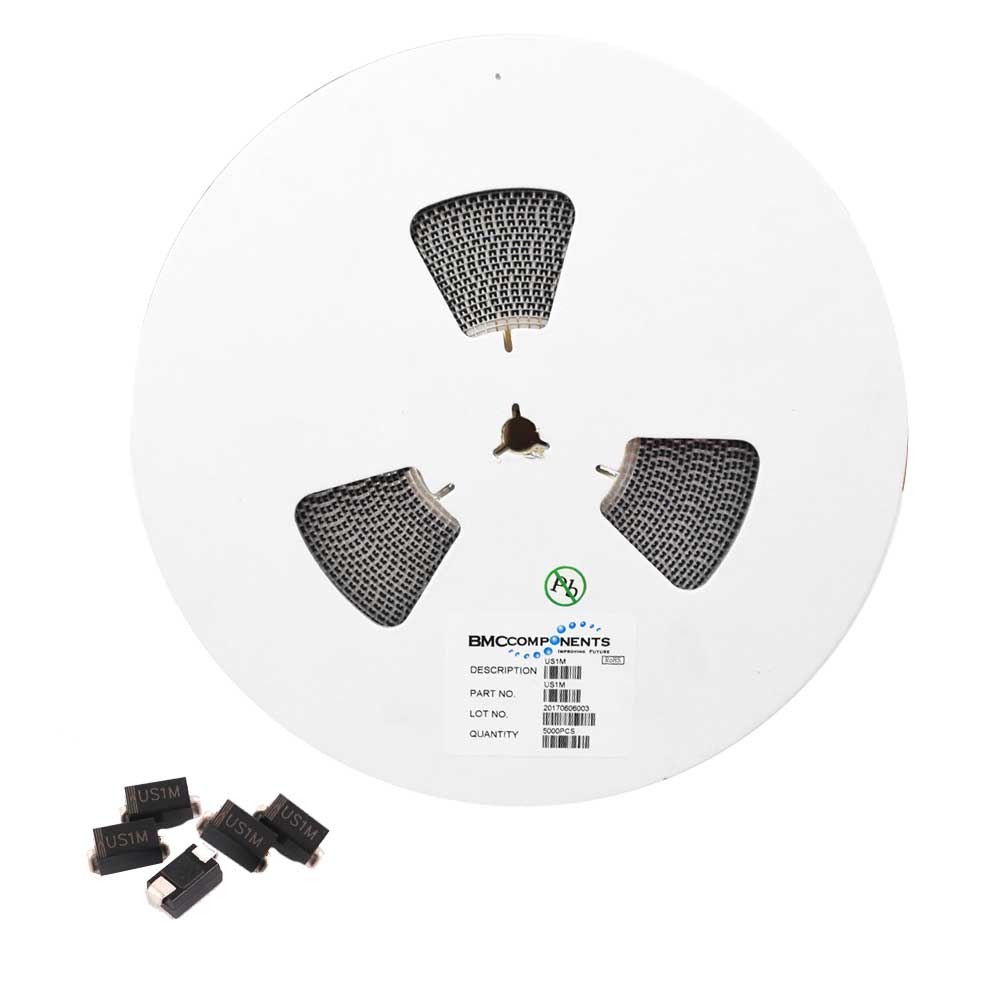

The US1M is an SMA (DO-214AC) surface mount fast rectifier diode. For maximum efficiency, this device has a glass passivated junction, low-profile packaging, and a quick recovery time.
Features
- Glass Passivated Die Construction
- Ultra-Fast Recovery Time for High Efficiency
- Surge Overload Rating to 30A Peak
- High Current Capability
- Ideally Suited for Automated Assembly
Specifications
| Model | US1M |
| Brand | BMC Components |
| Package | SMA DO-214AC |
| Mounting | Surface Mount |
| Max. Repetitive Reverse Voltage | 1000V |
| Max. RMS Voltage | 700V |
| Average Rectified Current | 1A |
| Forward Voltage | 1.7V |
| Reverse Current | 5µA |
| Reverse Recovery Time | 35ns |
| Max. Forward surge Current | 30A |
| Operating Junction Temperature | -55°C to 150°C |
| Quantity | 5000 |
| Country of Origin | China |
