Description

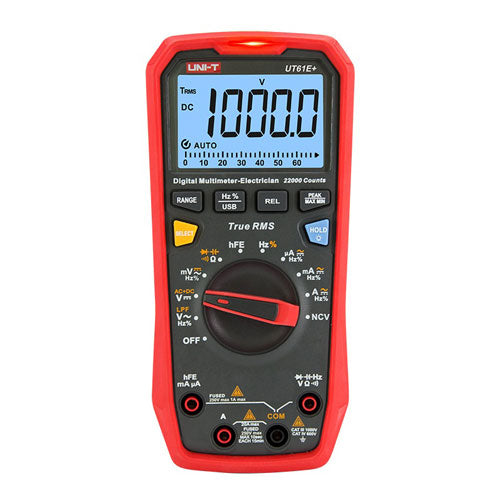

UT61E+ series are reliable true RMS digital multimeters with display counts 22,000, It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning especially when measuring high voltage/current.
- True RMS
- Data hold/backlight
- Max/Min/Relative mode
- USB communication
- Input protection
- Diode/continuity test
- NCV (audible/visual alarm)
- LPF ACV
- ACV+DCV
- Transistor hFE
Specifications:
- Safety ratings CAT III 1000V/CAT IV 600V
- AC voltage (V) 1000V ±(0.8%＋10)
- DC voltage (V) 1000V ±(0.05%＋5)
- AC current (A) 20A ±(0.8%＋10)
- DC current (A) 20A ±(0.5%＋10)
- Resistance (Ω) 220MΩ ±(0.5%＋10)
- Capacitance (F) 220mF ±(3%＋5)
- Frequency (Hz) 220MHz ±(0.01%＋5)
- Duty cycle (%) 0.1%~99.9% ±(2%＋5)
- Display count 22000
- Bandwidth (Hz) 40~10kHz
- Power 1.5V battery (R03) x 4
- Product net weight 350g
- Product size 190mm x 90mm x 50mm
- Optional accessories Bluetooth/APP
