Description

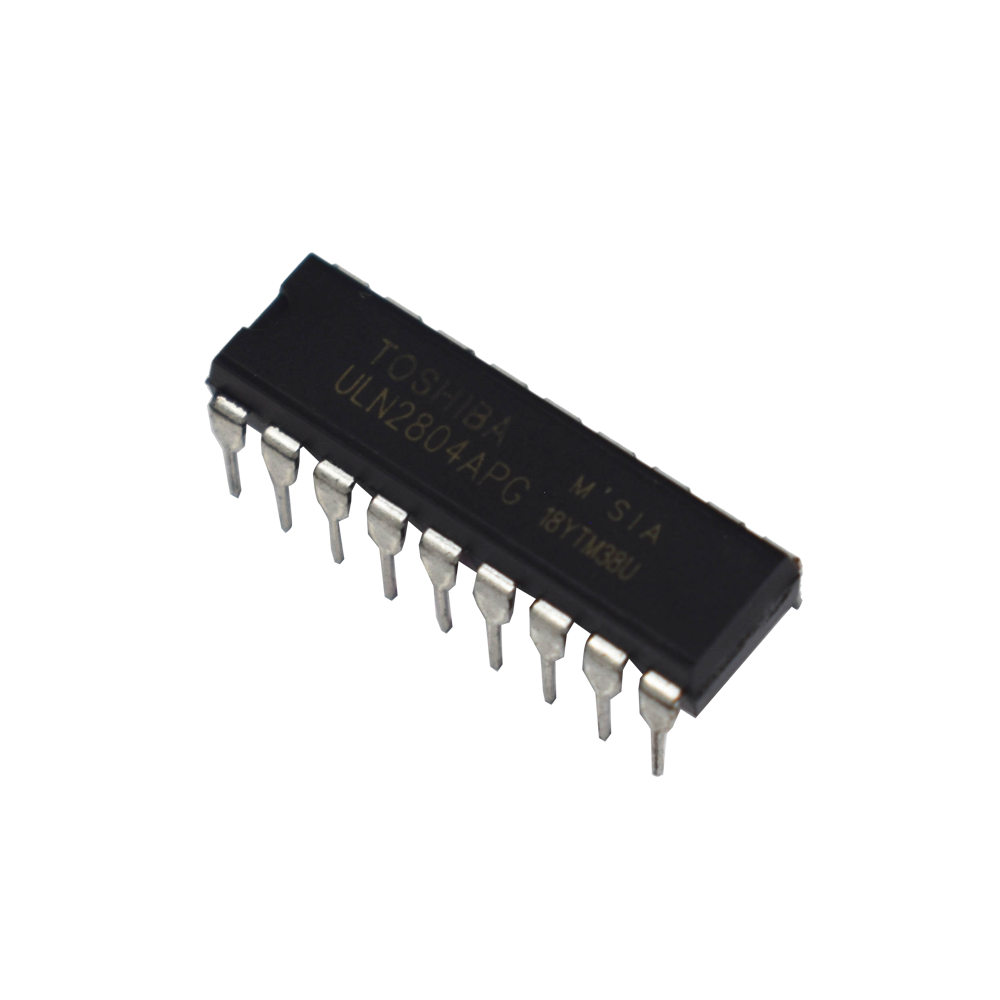

ULN2804APG sink driver is an eighteen pin IC which is also known as Darlington transistor. Its a high voltage and high current switch containing Darlington pairs. It has high current rating for each diode is 500mA. It has 8 Darlington pairs thats why its known as 8 channel Darlington sink driver too. This IC is used in many applications such as Relay, Hammer ,Lamp and LED drivers .
Features
- Output current 500mA
- High sustaining voltage output 50 V
- Dual in line package (18 pins)
- Input voltage 0-3.0 V
- Operatig temperature -40 to 85 °C
Specification
| Model | ULN2804APG |
| Type | IC |
| Output sustaining voltage | 5V |
| Power dissipation | 1.7 W |
| Input voltage | 3.0 V |
| No of pins | 18 |
| Output current | 500mA |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
