Description

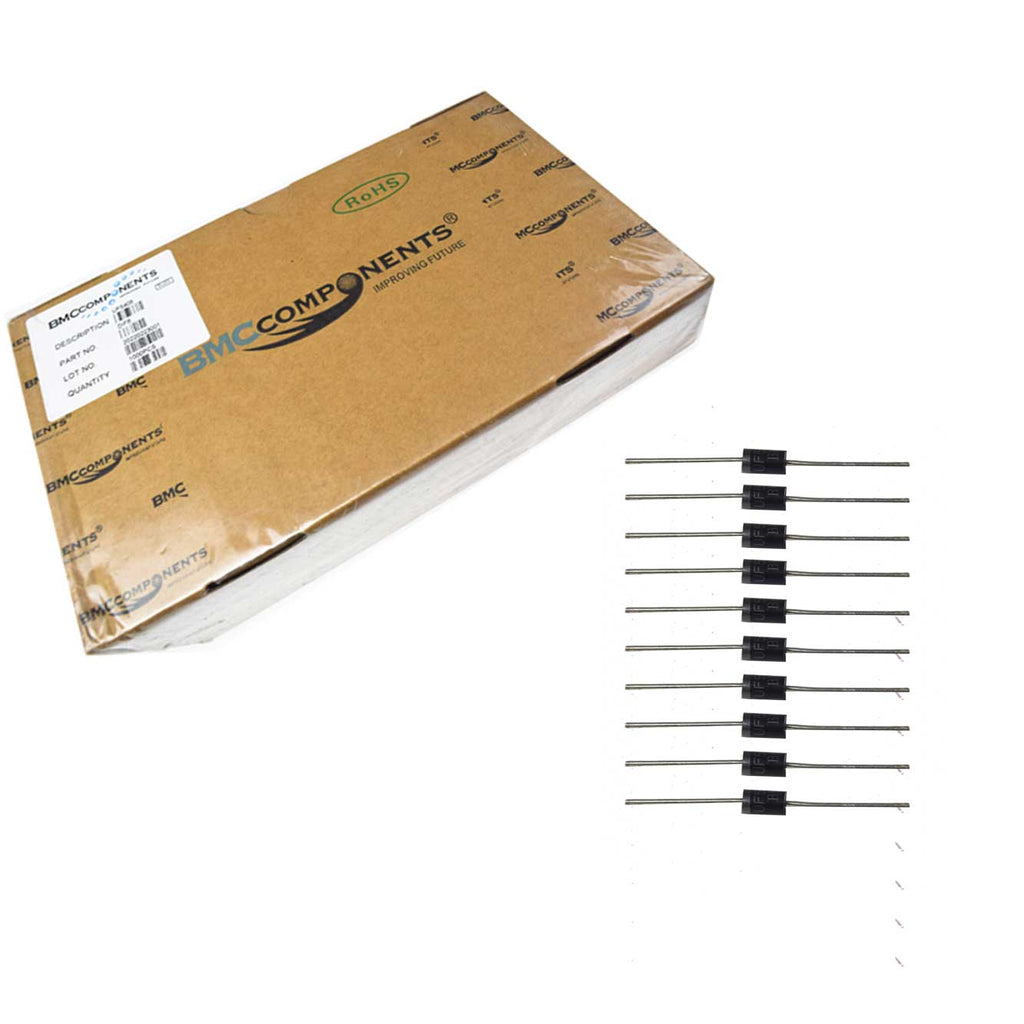

The ultra-fast UF5408 rectifier diode has a high current capability and a low forward voltage drop, making it suitable for use with switched-mode power supplies. 1000V is the maximum recurrent peak reverse voltage. 3A is the maximum average forward current. 150A is the maximum forward surge current.
Features
- Ultrafast reverse recovery time
- Low forward voltage drop
- 700V Maximum RMS voltage
- 1000V Maximum DC blocking voltage
- 36pF at 4V/1MHz Typical junction capacitance
Pinout
- Anode
- Cathode
Applications
- Power Management
- Consumer Electronics
- Computers & Computer Peripherals
- Communications & Networking
Specifications
| Model | UF5408 |
| Make | BMC Components |
| Type | ULTRAFAST DIODE |
| Max. Average Forward Rectified Current | 3A |
| Maximum DC blocking voltage | 1000V |
| Maximum RMS voltage | 700V |
| Mounting Type | Through Hole |
| No of Pin | 02 |
| Operating Temperature Range | -55~150 °C |
| Quantity | 1000 |
| Country of Origin | China |
