Description

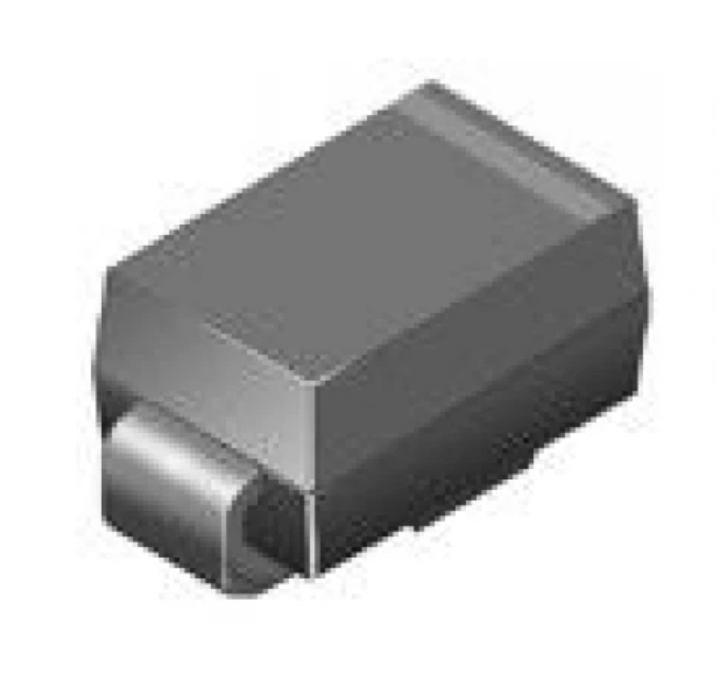

The UF4007 1KV 1A Rectifier SMD Diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. For UF4007 Diode‚ the maximum current carrying capacity is 1A it withstands peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible.
Features:
- Low forward voltage
- High current capability
- Low leakage current
- High surge capability
- Diffused Junction
| Specifications | |
|---|---|
| Forwar Voltage | 1.7V |
| Reverse Voltage | 1KV |
| Model | UF4007 |
| Forward Current | 1A |
| Current | 1A |
| Operating Temperature | -55 to 150 |
| Type | Rectifier Diode |
