Description

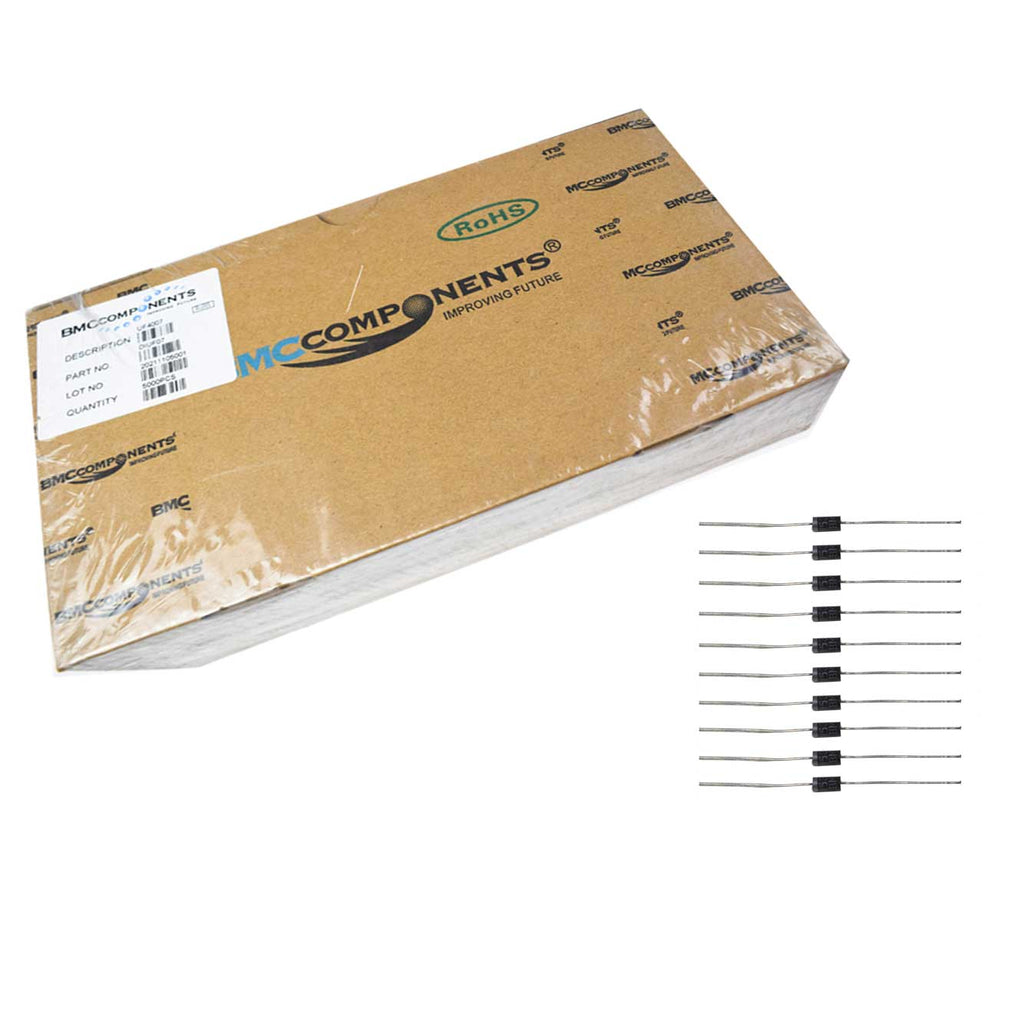

The UF4007 is a 1.0A Ultra Fast Recovery Rectifier Diode. The UF4007 Diode is a high-speed switching diode with a continuous reverse voltage rating of 1000V and forwards current ratings of up to 1A. The reverse recovery time of the UF4007 Diode is 75ns. The diode is well suited for use in power supply and switched voltage converter circuits. The UF4007 fast recovery diodes are generally used in high-frequency rectification and freewheeling in switching power supplies or electric auto chargers.
Features
- Reverse Voltage (Vrrm): 1000V
- Average Rectified Current (Io): 1.0A
- Max. Reverse Current (Ir): 0.010mA
- Max. Forward Voltage Drop (Vf): 1.7V
- Reverse Recovery Time (Trr): 75ns
Specifications
| Model | UF4007 |
| Make | BMC Components |
| Type | General Purpose Rectifier Diode |
| Max. Average Forward Rectified Current | 1.0A |
| Max. Recurrent Peak Reverse Voltage | 1000V |
| Forward Surge Current | 30A |
| Case | DO-41 |
| Mounting Type | Through Hole |
| No of Pin | 02 |
| Operating Temperature Range | -65 to +150 °C |
| Quantity | 5000 |
| Country of Origin | China |
