Description

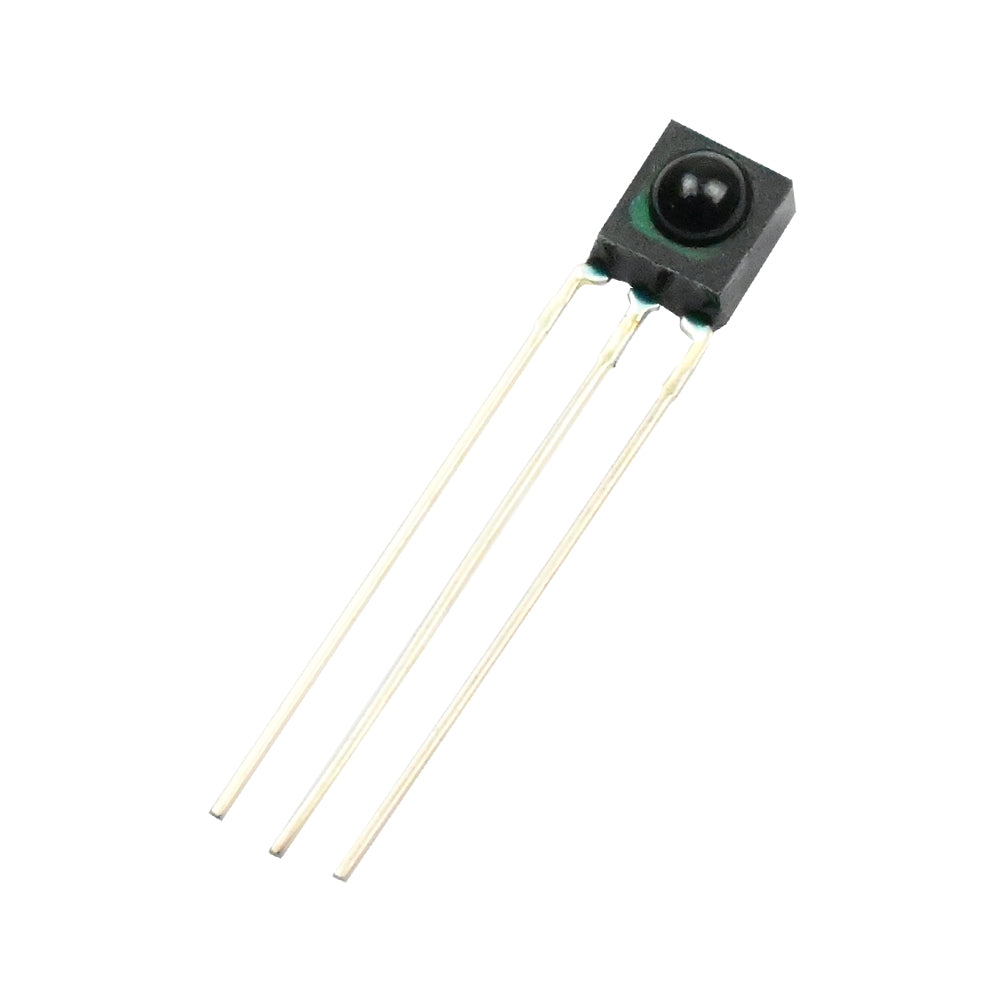

The TSOP4838 is a popular infrared (IR) receiver module used to receive and decode infrared signals in electronic devices. The TSOP4838 is designed to detect and demodulate infrared signals typically used in remote control applications. It receives infrared signals from a remote control transmitter and converts them into electrical signals that can be processed by the receiving device. The TSOP4838 typically has three pins: Vcc (power supply), GND (ground), and OUT (output). Vcc is connected to the power supply (usually 5V), GND is connected to ground, and OUT provides the demodulated output signal to the receiving circuitry. The TSOP4838 is widely used in remote control systems for TVs, DVD players, audio systems, air conditioners, and other consumer electronics. It receives the IR signals transmitted by the remote control and decodes them to control the device's functions. The module can be used in home automation systems to receive IR signals from remote control units or IR transmitters. This enables the control of various home devices and appliances, such as lighting systems, motorized curtains, and smart home hubs.
Features:
- It has three Pin
- Its Mounting Style is Through Hole
- Its Colour is Black
- Its Carrier Frequency is 38kHz
| Specifications | |
|---|---|
| Rated Current | 800µA |
| Model | TSOP4838 |
| Type | IR Receiver |
| Dimensions | 5x4mm |
