Description

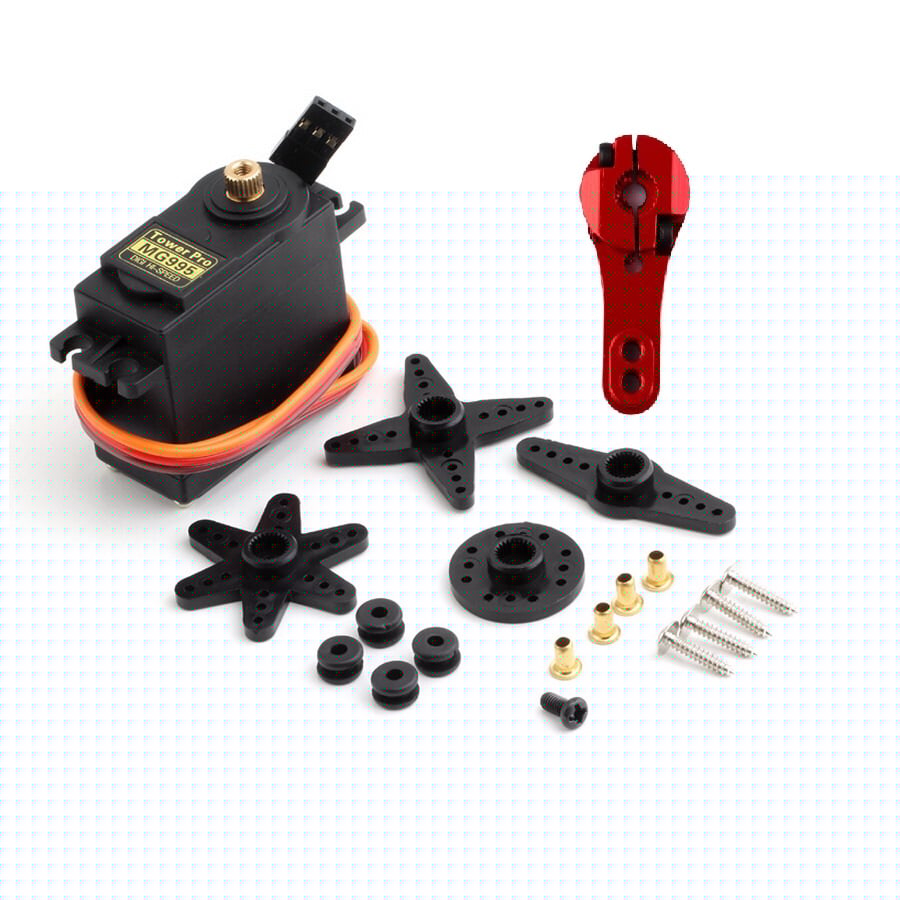

- Model: MG995
- Weight: 55 gm
- Operating voltage: 4.8V~ 7.2V
- Servo Plug: JR
- Stall torque @4.8V : 13kg-cm
- Stall torque @6.6V : 15kg-cm
| Model |
MG995 |
|---|---|
| Weight (g): |
55 |
| Operating Voltage (VDC) |
4.8 ~ 7.2 |
| Operating Speed @4.8V |
0.17sec/60° |
| Operating Speed @6.6V |
0.13sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) |
13 |
| Stall Torque @6.6V (Kg-Cm) |
15 |
| Operating Temperature (°C): |
-30 to 60 |
| Dead Band Width ( μs) |
1 |
| Gear Type |
Metal |
| Rotational Degree |
180º |
| Servo Plug |
JR |
| Cable Length (cm) |
30 |
| Length (mm): |
40.5 |
| Width (mm): |
20 |
| Height (mm): |
44 |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 10 × 8 × 3 cm |
