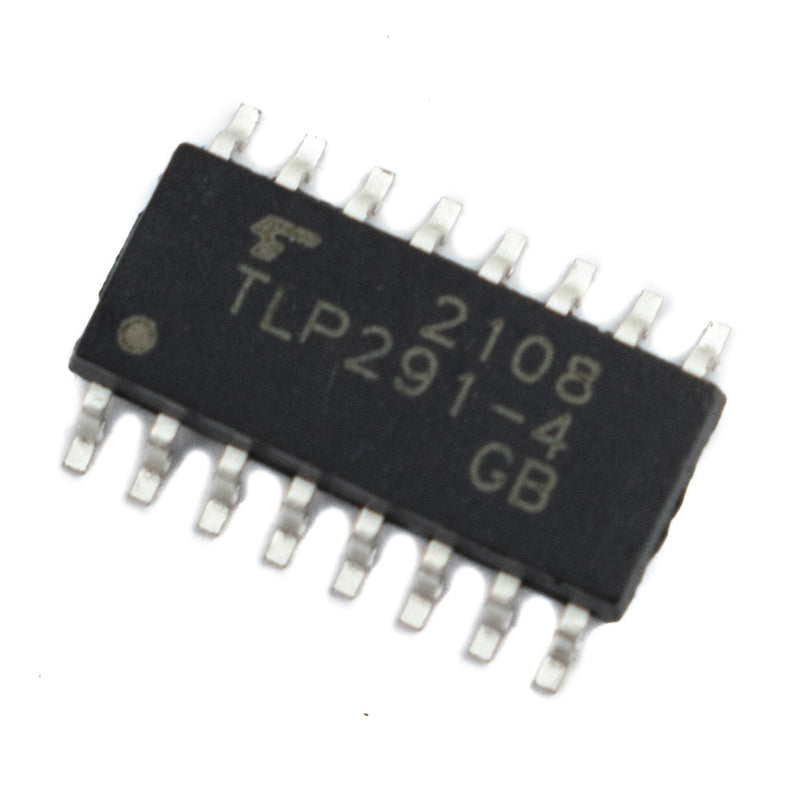

TOSHIBA TLP291-4 Optocoupler SMD IC

Save 19%
Sold By: HatchnHackSKU: SNBL80

Price:
Sale price₹ 70.52 Regular price₹ 87.45

Tax included Shipping calculated at checkout

Out of stock

Description

The Toshiba TLP291- 4 is made up of a phototransistor that is optically connected to an infrared emitting diode made of gallium arsenide. TLP291-4 is housed in the SO16 packaging, which is relatively compact and thin. TLP291-4 is appropriate for high-density surface mounting applications such as programmable controllers and hybrid ICs since it has a guaranteed wide operating temperature (Ta=-55°C to110°C).

Features

  • Collector-emitter voltage: 80 V (min)
  • Current transfer ratio: 50 % (min) GB Rank: 100 % (min)
  • Isolation voltage: 2500 Vrms (min)
  • Operating temperature: -55°C to 110°C

Applications

  • Programmable Logic Controllers (PLCs)
  • Switching Power Supplies
  • Simplex/Multiplex Data Transmission

Datasheet

Specifications
Model TLP291-4
Brand TOSHIBA
Pins
16
Mounting Surface Mount
Input forward current 50mA
Input forward current (pulsed) 1A
Input reverse voltage 5V
Input power dissipation 70mW
Collector-emitter voltage 80V
Package SMD
 Junction temperature  125°C
Quantity 100
Country of Origin China
