Description

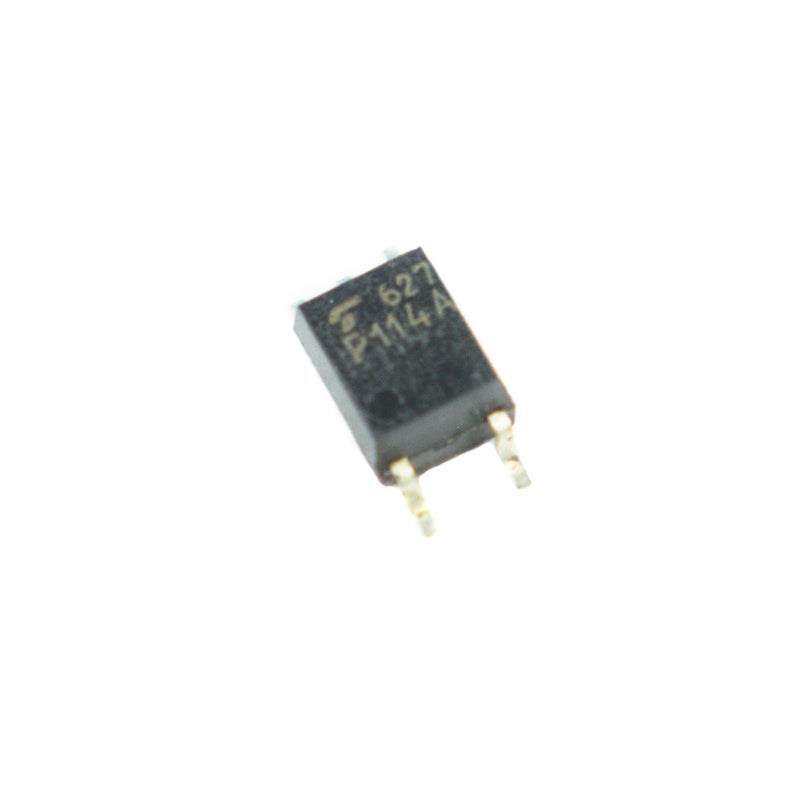

This is the TLP114A Photo IC Photocoupler manufactured by Toshiba. A photocoupler or optocoupler is an electronic component that is used to transmit analog or digital information (electrical signals) between two isolated, different circuits by using light while maintaining the electrical isolation of potentials up to 3750 times RMS Voltage. The TLP114A consists of a high output power GaAℓAs LED, optically coupled to a high-speed detector of one chip photodiode-transistor.
Features
- Compact, mini flat package, suitable for surface mount assembly
- Ultra-high-speed response
- Isolation voltage between input and output
- TTL compatible
Applications
- Power Supply Control, Feedback Control
- Switching Power Supply, Transistor Inverter
- Digital Logic Isolation, Line Receiver
For more information, refer to Datasheet
Specifications
| Model | TLP114A |
| Brand | TOSHIBA |
| Isolation Voltage | 3750 Vrms |
| Output Supply Voltage | 30V |
| Input Reverse Voltage | 5V |
| Input Forward Current | 20 mA |
| Output Collector Power Dissipation | 100 mW |
| Operating Temperature | -55°C - 100°C |
| Storage Temperature | -55°C - 125°C |
| Package | DIP |
| Country of Origin | China |
