TOSHIBA TLP114A Photo IC (5 Pin) Photocoupler DIP

Save 19%
Sold By: HatchnHackSKU: F04-34

Price:
Sale price₹ 75.00 Regular price₹ 93.00

Tax included Shipping calculated at checkout

Out of stock

Description

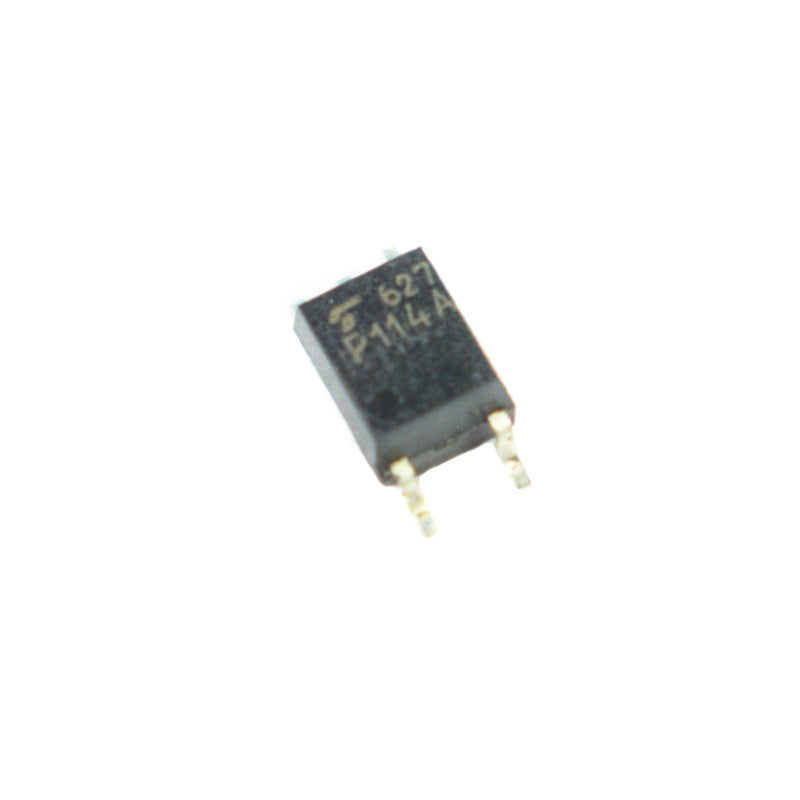

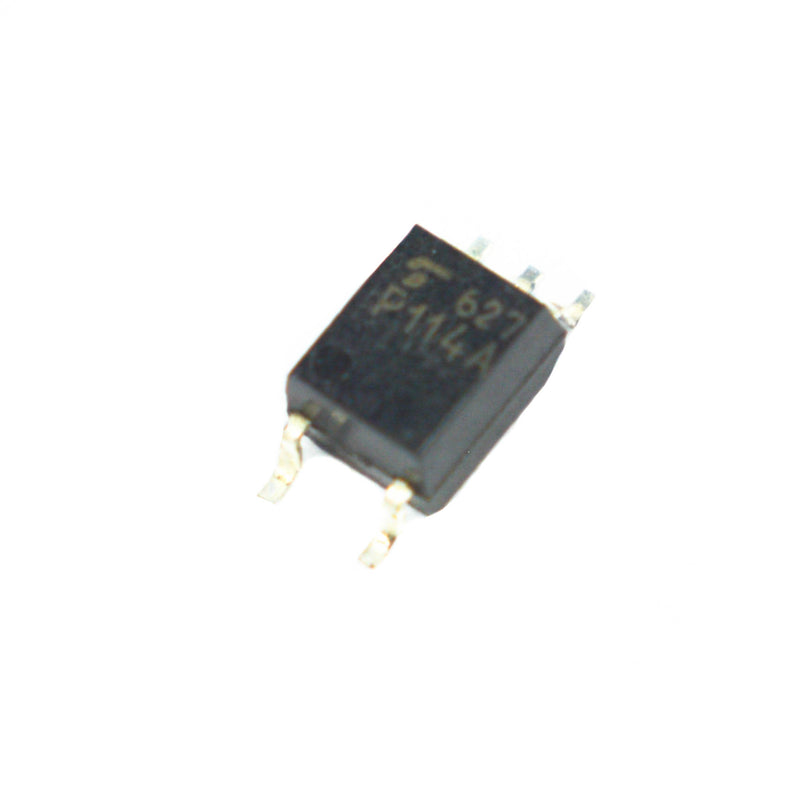

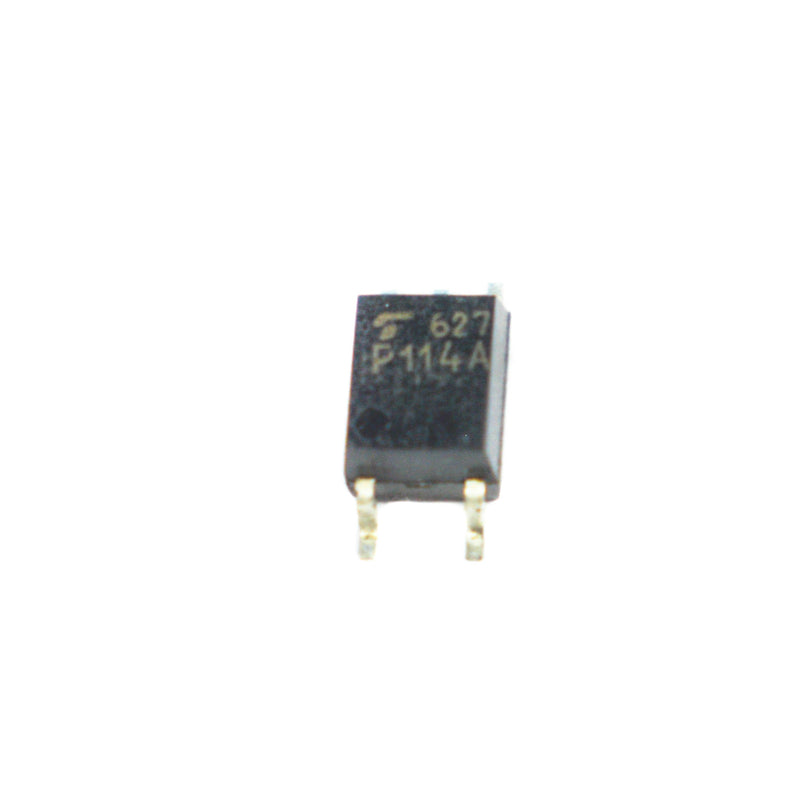

This is the TLP114A Photo IC Photocoupler manufactured by Toshiba. A photocoupler or optocoupler is an electronic component that is used to transmit analog or digital information (electrical signals) between two isolated, different circuits by using light while maintaining the electrical isolation of potentials up to 3750 times RMS Voltage. The TLP114A consists of a high output power GaAℓAs LED, optically coupled to a high-speed detector of one chip photodiode-transistor.

Features

  • Compact, mini flat package, suitable for surface mount assembly
  • Ultra-high-speed response
  • Isolation voltage between input and output
  • TTL compatible

Applications

  • Power Supply Control, Feedback Control
  • Switching Power Supply, Transistor Inverter
  • Digital Logic Isolation, Line Receiver

For more information, refer to Datasheet

Specifications
Model TLP114A
Brand TOSHIBA
Isolation Voltage 3750 Vrms
Output Supply Voltage  30V
Input Reverse Voltage  5V
Input Forward Current  20 mA
Output Collector Power Dissipation  100 mW
Operating Temperature -55°C - 100°C
Storage Temperature  -55°C - 125°C
Package DIP
Country of Origin China
