Description
A thyristor is a solid-state semiconductor device with four layers of alternating P- and N-type materials. It acts exclusively as a bistable switch, conducting when the gate receives a current trigger, and continuing to conduct until the voltage across the device is reversed biased, or until the voltage is removed .

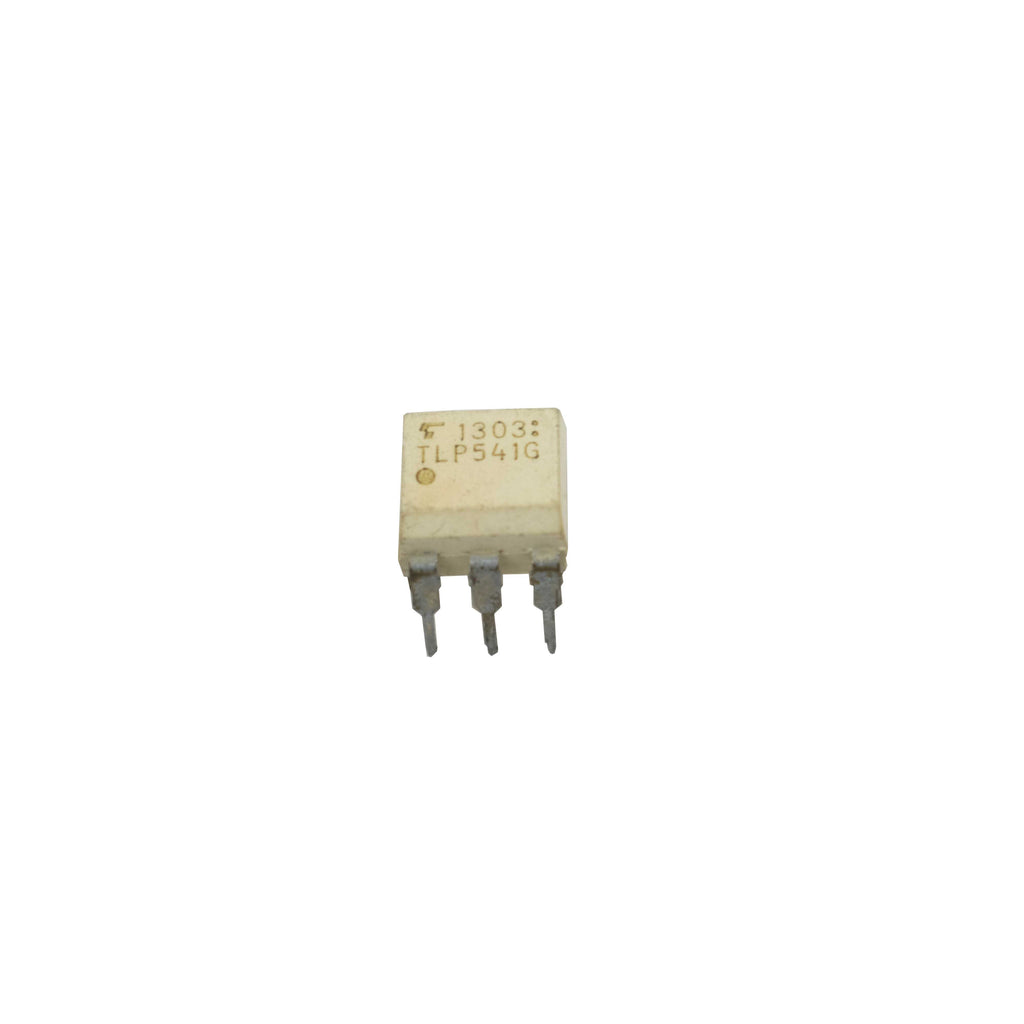

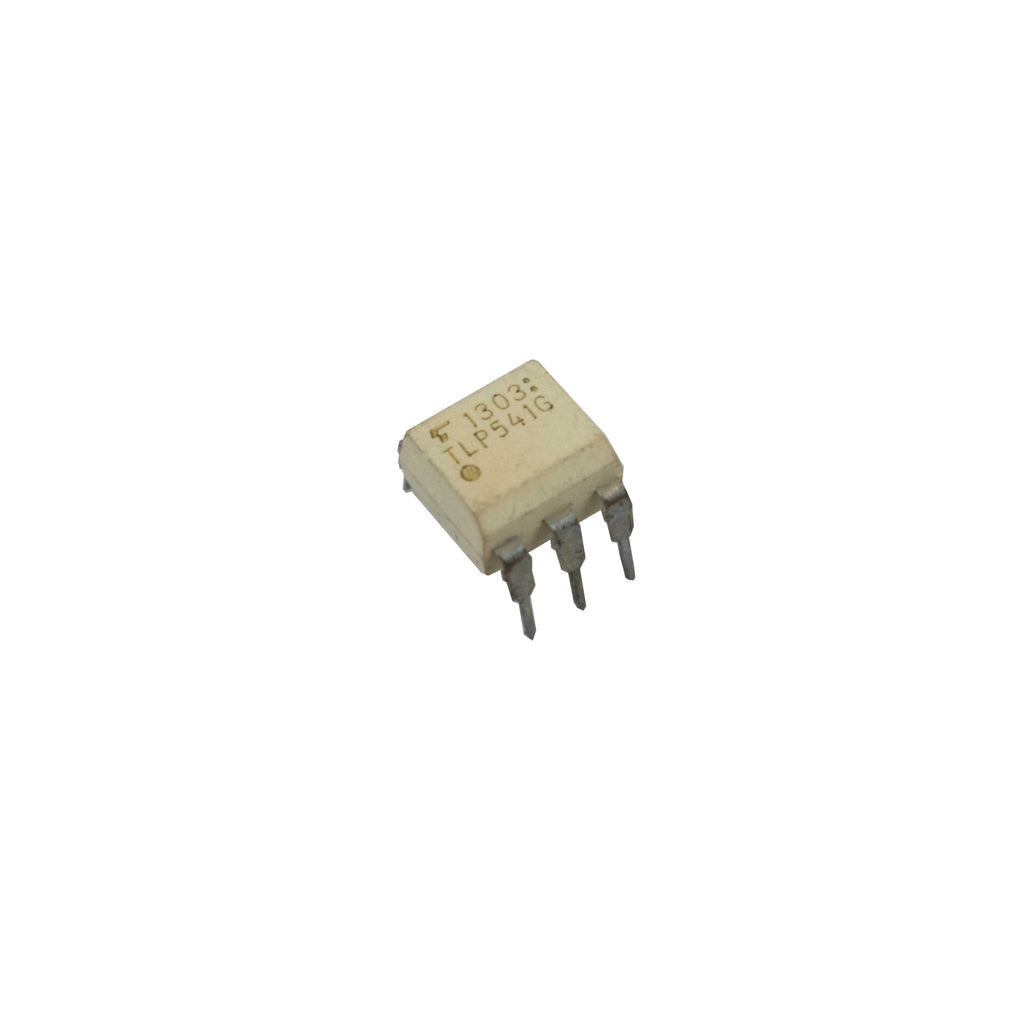

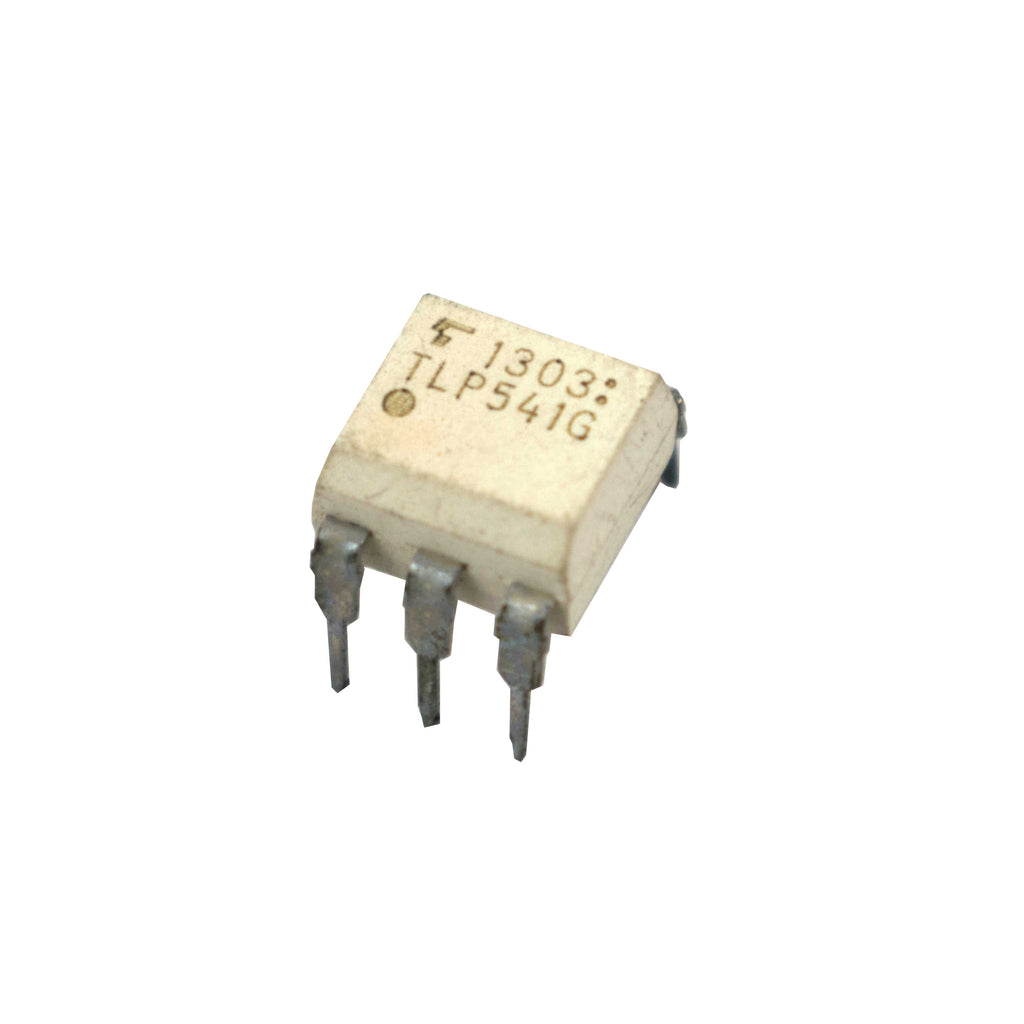

The TOSHIBA TLP541G is a programmable Controller, AC-Output Solid State Relay Module that is a Photocoupler consists of a photo−thyristor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.
Features:-
- Peak off-state voltage: 400 V (min.)
- Trigger LED current: 7 mA (max.)
- On-state current: 150 mA (max.)
- Isolation voltage: 2500 Vrms (min.)
- UL recognized: UL1577, file no. E67349
Specifications
Model | TLP541G |
Brand | Toshiba |
Isolation Voltage | 2500 Vrms |
If - Forward Current | 70 mA |
Vf - Forward Voltage | 1.15 V |
Off-state Output Voltage - VDRM | 400 V |
Maximum Continuous Output Current | 150 mA |
Operating Temperature | -30 °C – 85 °C |
Package | DIP |
Country of Origin | China |
