Description

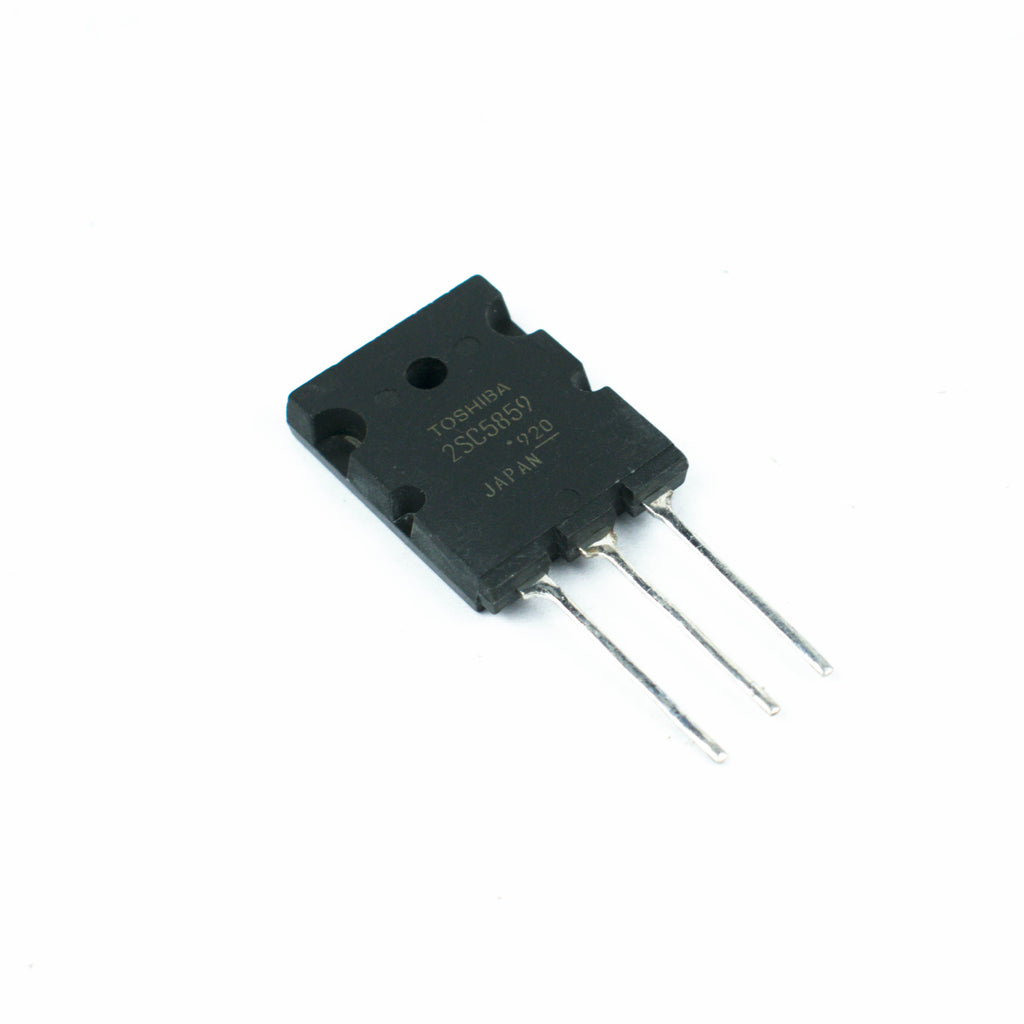

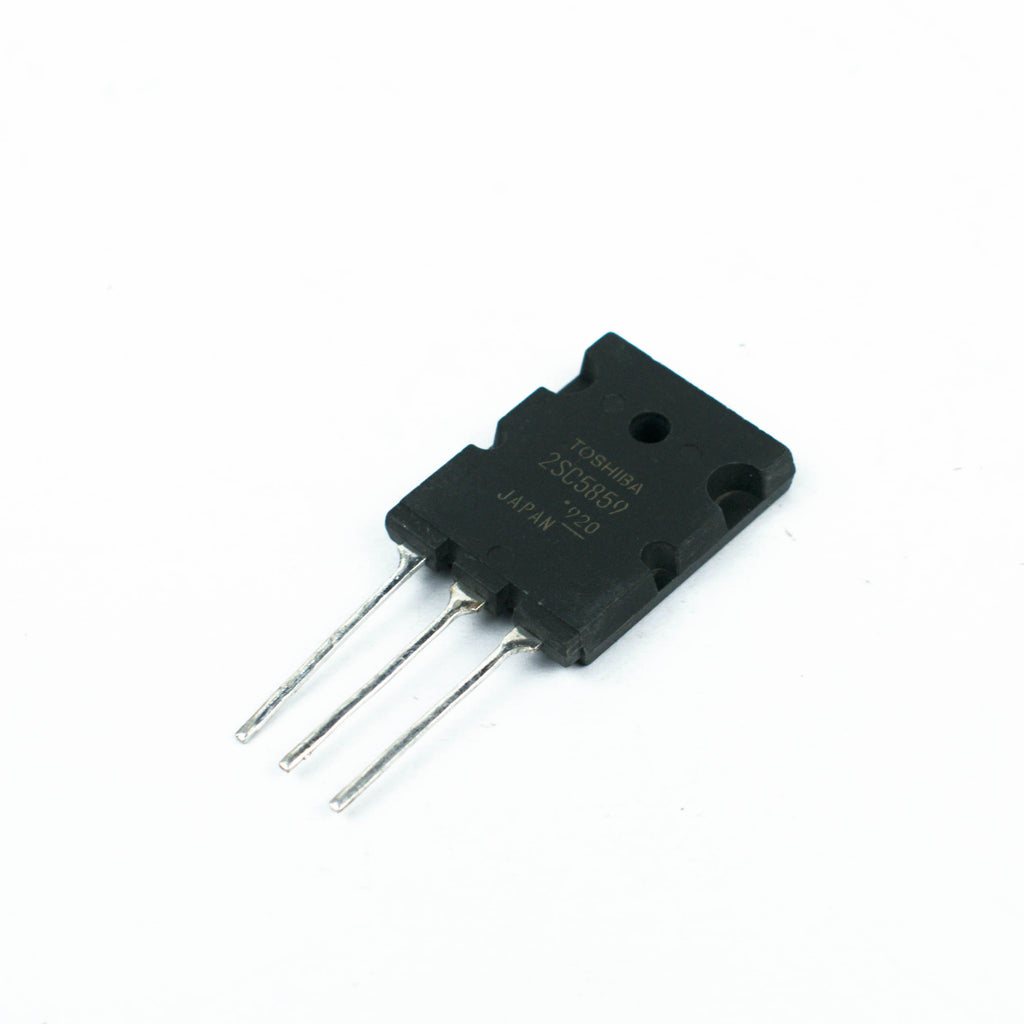

TOSHIBA 2SC5859 is a high-power NPN transistor, The Transistor 2SC5859 is a high-power transistor with a collector current of 23A and collector to emitter voltage of 750V. It is used in Audio frequency amplifiers, AF /RF circuits, high current switching (up to 15A) loads, Push-Pull configuration circuits, and Low Slew rate devices, Can be used as medium Power switches and HD TV, Projection TV, and Digital TV.
Applications:
- High power audio circuit
- Audio frequency amplification
- High current switching
- Medium power switch
- Protection TV.
Features:
- High Voltage
- Low Saturation Voltage
- High Speed
Specifications
| Model | 2SC5859 |
| Brand | TOSHIBA |
| Collector-Base-Voltage (VCBO) | 1700 (V) |
| Collector-Emitter-Voltage (VCEO) | 750 (V) |
| Emitter-Base-Collector (VEBO) | 5 (V) |
| Collector Current DC (IC) | 23 (A) |
| Collector Current Pulse (ICP) | 46 (A) |
| Base Current (IB) | 11.5 (A) |
| Collector Power Dissipation (Pc) | 210 (W) |
| Junction Temperature (TJ) | 150 (degree C) |
| Storage Temperature Range (TSTG) | -55~150 (degree C) |
| Country of Origin | China |
